Rittal
System lighting LED 600
Part number2500110EAN / GTIN4028177806948HS code9405.49
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

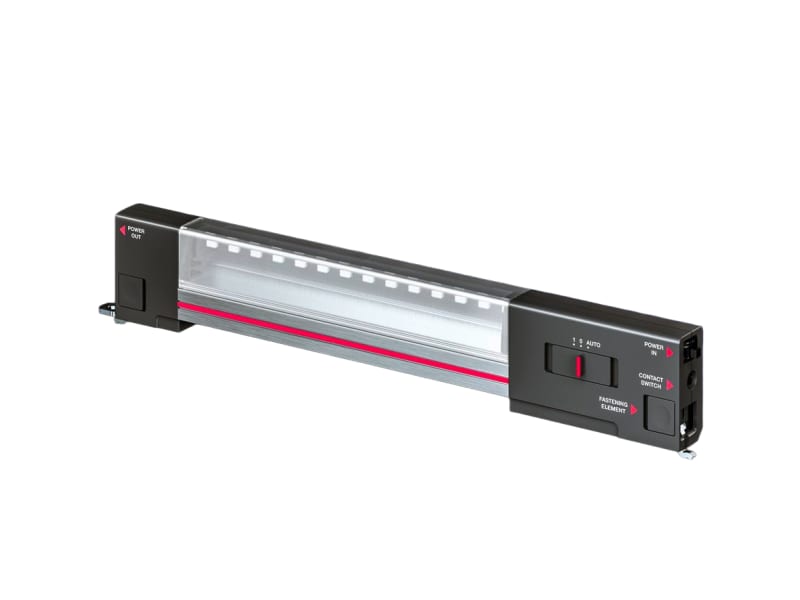

Rittal 2500110 Manufacturer description: SZ system light LED, 600 Lumen, L: 337 mm, 100-230 V. System lighting LED 600.
Technical Specifications
- Manufacturer part number (MPN)
- 2500110
- EAN / GTIN
- 4028177806948
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Model designation
- SZ 2500.110
- Product type
- LED system light
- Version
- without socket
- Material
- Light body: Extruded aluminum; Light cover: polycarbonate; Light ends: PC-ABS
- Color
- Enclosure: RAL 7016
- Supply includes
- Assembly screws
- Rated power
- 7W
- Connection options
- Power Supply, 2-pole; Through-wiring, 2-pole; Door-operated switch
- Protection category
- II (total insulation)
- Light – installation type
- Screw fastening; Clip fastening; Magnetic fastener (accessories)
- Installation options
- The internal mounting rail AX and the mounting bracket are required when installing in compact enclosures; Directly onto the enclosure section with 25 mm pitch pattern
- Luminous flux
- 600 lm
- Light color
- 4000 K (neutral white)
- Dimensions
- Width: 337 mm; Height: 55 mm; Depth: 23 mm
- Operating temperature range
- -20 °C...55 °C; -4 °F...131 °F
- Rated operating voltage
- 100 V - 230 V, 1~, 50 Hz/60 Hz
- Protection category IP to IEC 60 529
- IP 20
- Packaging unit
- 1 pc(s).
- Net weight
- 0.263 kg
- Gross weight
- 0.351 kg
- PCF/VE (cradle-to-gate)
- 7.4
- Customs tariff number
- 94054940
- ETIM 9
- EC000321
- ETIM 8
- EC000321
- ECLASS 8.0
- 27189241
- Lamp power
- 7 W
- Voltage type
- AC
- Rated voltage
- 240 V
- With socket outlet
- Yes
- With on/off switch
- No
- With light sensor
- No
- Length
- 337 mm
- Lamp type
- LED not exchangeable
- Suitable for 19 inch mounting
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 9405.49
Cross References
- EAN 4028177806948
- SAP 1000788565
- Code 81400696
Product Documentation
Document preview: Rittal 2500110 — Data Sheet (OEM)
