Rittal

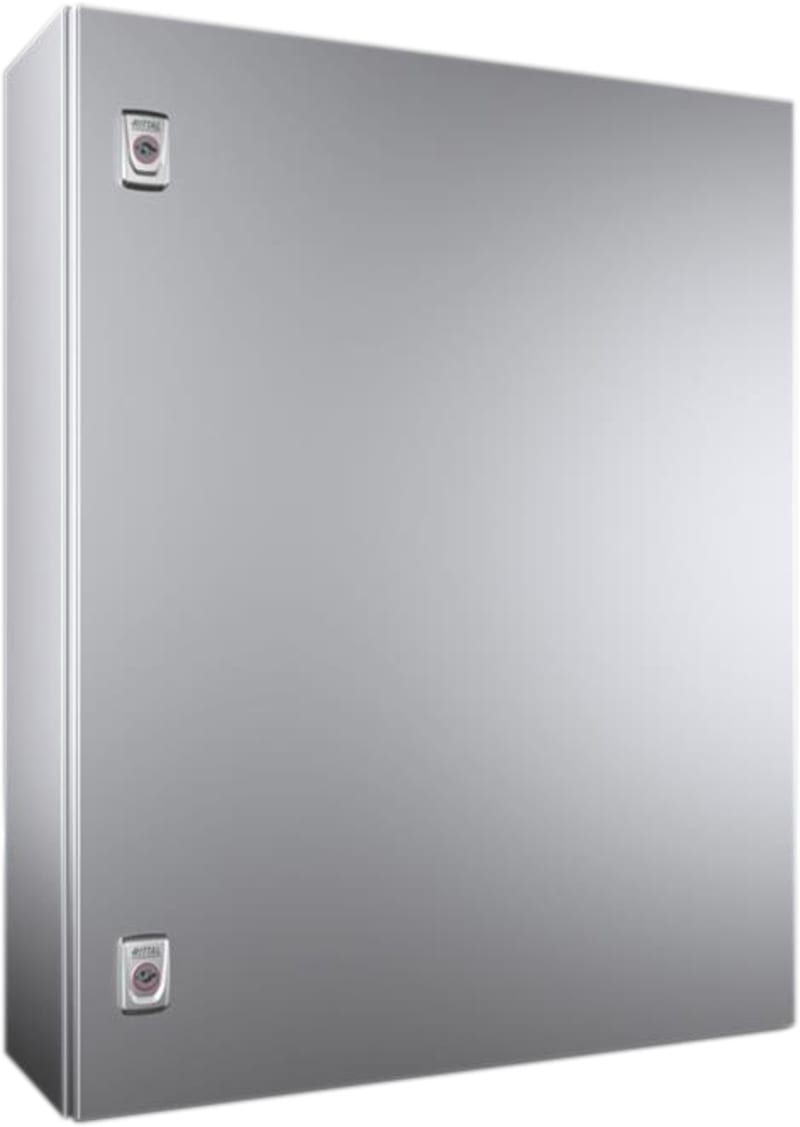

Compact enclosure AX 600X760X210 Rf
Part number1012000EAN / GTIN4028177815001HS code9403.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1012000 Manufacturer description: AX wall-mounted enclosure, WHD: 600x760x210 mm, 304 stainless steel, with mounting panel, single-door, with two cam locks. AX Compact enclosure, BHD: 600x760x210 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1012000
- EAN / GTIN
- 4028177815001
- Sales unit
- pcs
- Model designation
- AX 1012.000
- Product type
- Basic enclosure AX, stainless steel
- Material
- Housing: Stainless steel; Door: Stainless steel, all-round foamed-in PU seal; Mounting plate: Carbon steel; Stainless steel 1.4301 (AISI 304)
- Surface finish
- Housing and door: Brushed, grain 400, peak-to-valley height; < 0.8 µm; Mounting panel: Zinc-plated
- Supply includes
- Housing with door(s), swing angle 130°; Mounting panel; Lock: 3 mm double-bit
- Protection category NEMA
- NEMA 1; NEMA 3R; NEMA 4; NEMA 4X; NEMA 12
- Protection category IP to EN 60 529
- IP 66
- Type rating according to UL 50E
- Type 1; Type 3R; Type 4; Type 4X; Type 12
- IK code
- IK10
- Dimensions
- Width: 600 mm; Height: 760 mm; Depth: 210 mm
- Material thickness - door
- 2 mm
- Material thickness - enclosure
- 1.5 mm
- Material thickness – mounting plate
- 2.5 mm
- Dimensions of mounting plate (W x H)
- 550 mm x 735 mm
- Lock
- Lock version: Cam; No. of locks: 2; Lock Insert: 3 mm double-bit; Material lock: Die-cast zinc
- Base material
- Stainless steel 1.4301 (AISI 304)
- Packaging unit
- 1 pc(s).
- Net weight
- 28.5 kg
- Gross weight
- 28.57 kg
- PCF/VE (cradle-to-gate)
- 96.15
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Width
- 600 mm
- Height
- 760 mm
- Depth
- 210 mm
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 2
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 1800 N
- Max. permitted load of the door(s) according to IEC 62208
- 250 N
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177815001
- SAP 1200365320
- Code 82387738
Product Documentation
