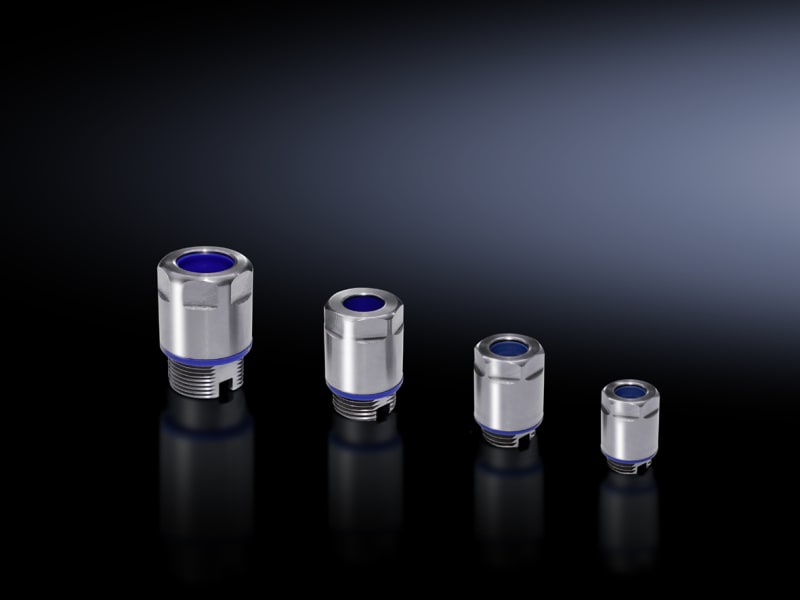

Cable gland HD (2410011)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2410011 Manufacturer description: HD Cable gland, stainless steel 1.4305, size: M16x1,5, for cables Ø; 5-10 mm, Standard version. Kabelforskruing HD, stainless steel, M16x1,5 for cables Ø 5-10 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2410011
- EAN / GTIN
- 4028177928718
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Model designation
- HD 2410.011
- Product type
- Cable gland HD
- Version
- Standard
- Applications
- Production and packaging of food and beverages; Clean room technology (e.g. pharmaceuticals); Biotechnology; Chemical industry
- Material
- Nut: Stainless steel 1.4305 (AISI 303); Seal: EPDM, compliant with FDA 21 CFR 177.2600
- Supply includes
- Incl. lock nut
- Dimensions
- Thread: M16 x 1.5
- For cable diameters
- 5 ‐ 10 mm
- Operating temperature range
- -20 °C...100 °C; -4 °F...212 °F
- Protection category IP to IEC 60 529
- IP69 / IPX8 (5 bar, 30 min)
- Packaging unit
- 5 pc(s).
- Net weight
- 0.1 kg
- Gross weight
- 0.2 kg
- Customs tariff number
- 73072980
- ETIM 9
- EC000441
- ETIM 8
- EC000441
- ECLASS 8.0
- 27149109
- Approvals
- UR + C-UR (recognized); VDE
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177928718
- SAP 1200596558
- Code 82972178
Product Documentation
More from Rittal
Rittal

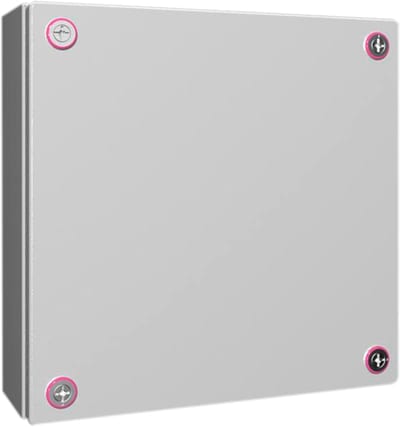

Junction box KX 300X300X120 (1507000)
Rittal
Speed controller for fan
3120200
Rittal

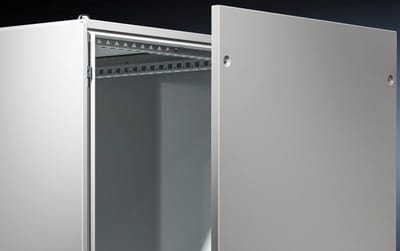

Sidewall VX 1800X400 2 pcs
8184245
Rittal

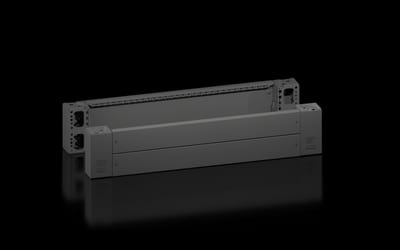

Plinth VX incl. front/rear panel 200X1000
8660024
Rittal

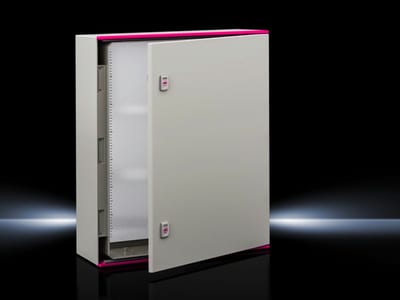

Plastic Enclosure AX 250X350X150
1432000
Rittal

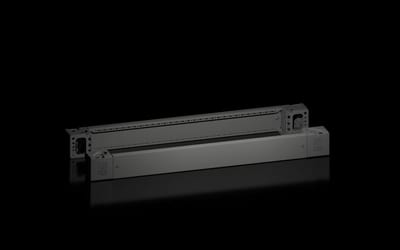

Plinth VX incl. front/rear panel 100X1000
8660005
Rittal

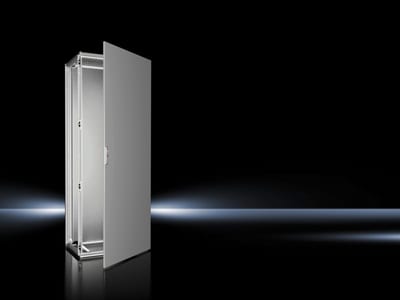

Floor-Standing Enclosure VX 800X2000X500
8805000
Rittal

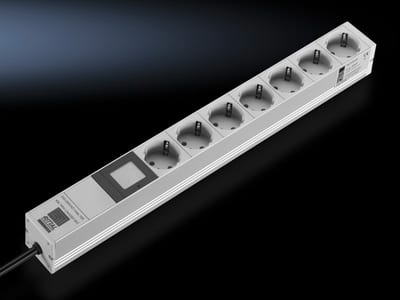

Rittal DK 7240.301 7-Way Schuko PDU with Energy Meter 230 V 16 A
