Rittal

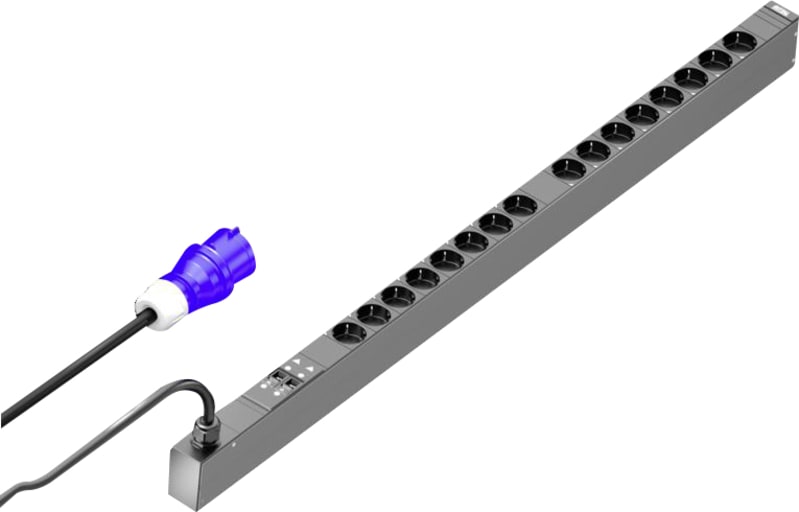

PDU basic 32A/1P 16X7/3 Schuko
Part number7979114EAN / GTIN4028177947436HS code8536.69
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7979114 PDU basic 32A/1P CEE 16xCEE7/3 earthing-pin, DK PDU basic, Compact basic power distributor.
Technical Specifications
- Manufacturer part number (MPN)
- 7979114
- EAN / GTIN
- 4028177947436
- Sales unit
- pcs
- Model designation
- DK 7979.114
- Product type
- PDU basic
- Design
- PDU Basic
- Material
- Extruded aluminium section, anodised; Slots: Plastic
- Supply includes
- Connector lock for IEC C14 and C20 connectors; Assembly parts
- Options
- Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure; Other enclosure colours are available
- Dimensions
- Width: 44 mm; Depth: 70 mm; Length: 1,095 mm
- No. of sockets and type
- 16 x earthing-pin (type F, CEE 7/3)
- Rated operating voltage
- 230 V (AC)
- Power consumption
- 7.4 kW
- Infeeds
- Qty.: 1; Phases per infeed: 1~
- Length of connection cable
- 3m
- Type of electrical connection
- CEE
- Directives
- EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- Standards
- EN 62368-1; EN 61000-3; EN 61000-4; EN 61000-6; EN 62053-21
- Operating temperature range
- 5 °C...50 °C
- Ambient humidity (non- condensing)
- 10...95 %
- Storage temperature range
- -20 °C...70 °C
- To fit
- Enclosure type: VX IT enclosure frame: ≥ 1,200 mm; Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
- Net weight
- 4.3 kg
- Gross weight
- 4.68 kg
- Customs tariff number
- 85366990
- ETIM 9
- EC002762
- ETIM 8
- EC002762
- ECLASS 8.0
- 27142604
- Explanations Tender text
- Declaration of conformity
- Rated current
- 32 A
- Mounting direction
- Vertical
- Electrical connection
- Connection cable with plug
- Type of electric connection
- CEE 16 A
- Number of phases
- 1
- Cable length
- 3 m
- Length
- 1095 mm
- Width
- 44 mm
- Depth
- 70 mm
- Supply voltage
- 230 V
- Mains filter
- No
- Switchable
- No
- With meter
- No
- Control function
- No
- SNMP
- No
- With display
- No
- With LED indication
- No
- With fuse
- Yes
- Ampere meter
- No
- Temperature measurement
- No
- With mounting material
- Yes
- Colour
- Black
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4028177947436
- SAP 1200542548
- Code 82802126
Product Documentation
Document preview: Rittal 7979114 — Data Sheet (OEM)
