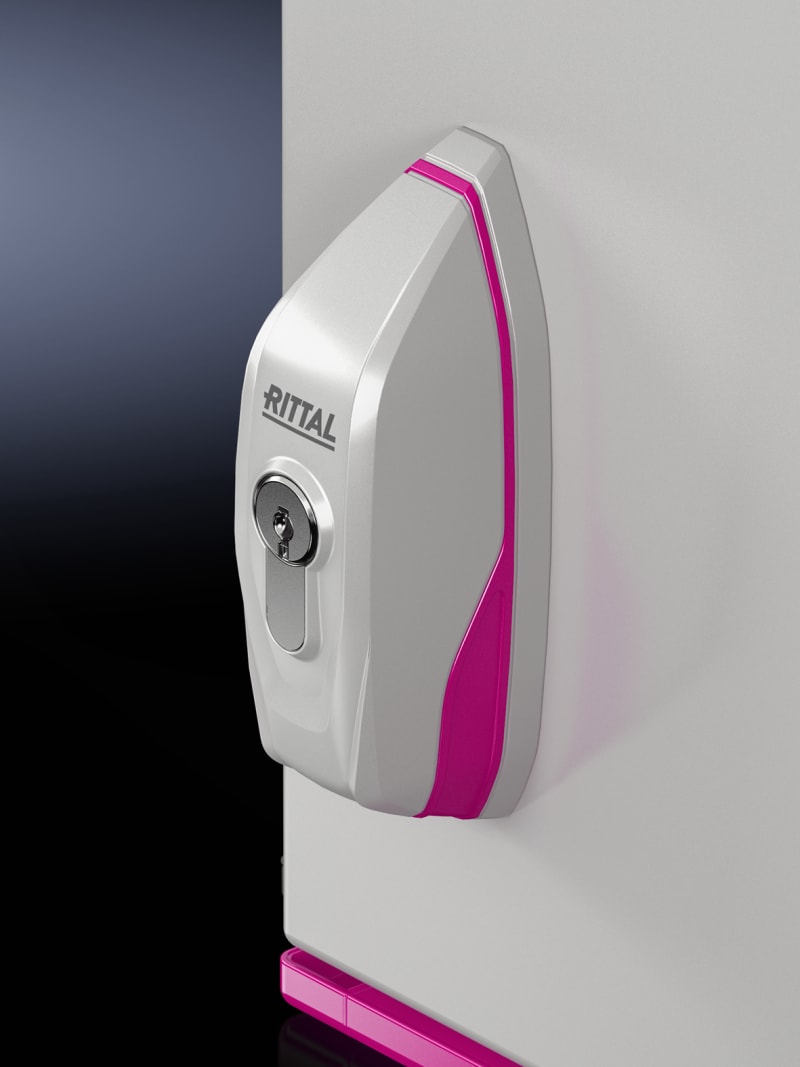

Rittal AX 1485.600 Mini-Comfort Rotary Handle for AX Plastic Enclosure
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1485600 (AX 1485.600) is a mini-comfort rotary handle for AX plastic enclosures, prepared to receive Version A lock inserts or 40/45 mm semi-cylinders to DIN 18252. The handle body is die-cast zinc and plastic, powder-coated in RAL 7035, and provides UL Type 1/3R/4/12 rated closure when properly installed. Used to convert an AX plastic enclosure door to a keyed, ergonomic rotary-handle closure without additional 3-point espagnolette locking.
Technical Specifications
- Manufacturer part number (MPN)
- 1485600
- EAN / GTIN
- 4028177952836
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Model designation
- AX 1485.600
- Product type
- Mini-Comfort Handle AX
- Version
- For lock inserts and semi-cylinder
- Material
- Die-cast zinc; Plastic
- Surface finish
- Powder-coated
- Color
- RAL 7035
- Lock
- Lock version: Prepared for version A lock inserts, installation of semi-cylinders 40 or 45 mm total length (according to DIN 18 252) or safety and push-button lock inserts with a length of 40 mm
- Suitable for enclosure type
- AX plastic
- Type rating according to UL 50E
- Type 1; Type 3R; Type 4; Type 12
- Packaging unit
- 1 pc(s).
- Net weight
- 0.33 kg
- Gross weight
- 0.346 kg
- Customs tariff number
- 83024110
- ETIM 9
- EC000327
- ETIM 8
- EC000327
- ECLASS 8.0
- 27409217
- Approvals
- UL + C-UL - FTTA
- Padlock locking
- No
- Toggle
- Yes
- Type of handle
- Rotary handle
- Espagnolette locking (3-point locking)
- No
- Country of origin
- Germany
Standards & Compliance
- Material
- Die-cast zinc; plastic, powder-coated RAL 7035
- HS Code
- 3926.90
Cross References
- EAN 4028177952836
- SAP 1200596644
- Code 82973214
- Model AX 1485.600
