Rittal

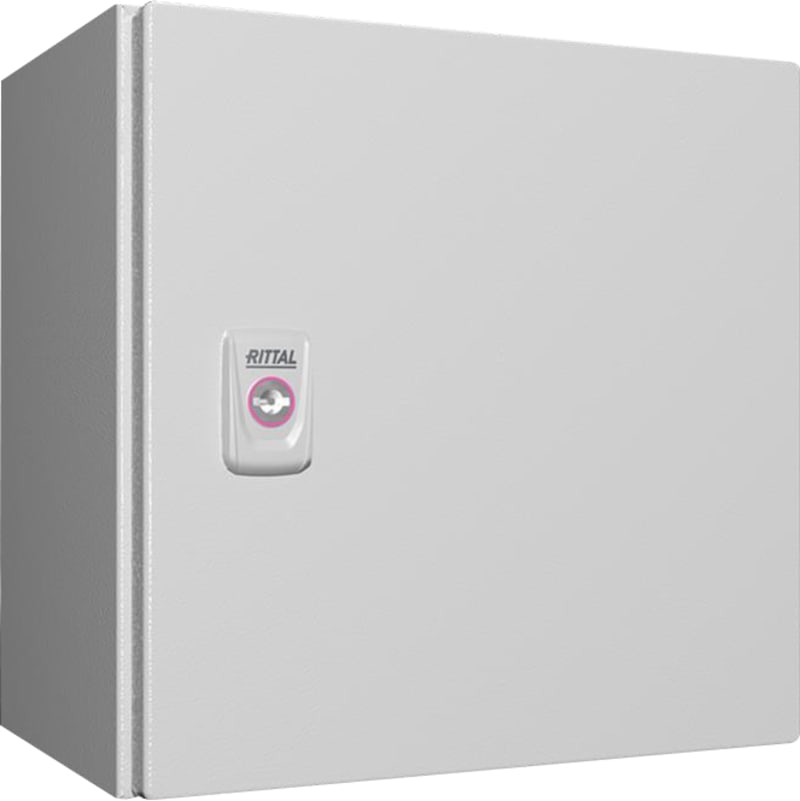

Compact enclosure AX 300X300X210
Part number1033000EAN / GTIN4028177813458HS code9403.99
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1033000 Manufacturer description: AX wall-mounted enclosure, WHD: 300x300x210 mm, carbon steel, with mounting panel, single-door, with one cam lock. AX Compact enclosure, BHD: 300x300x210 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1033000
- EAN / GTIN
- 4028177813458
- Sales unit
- pcs
- Model designation
- AX 1033.000
- Product type
- Basic enclosure AX, carbon steel
- Material
- Housing: Carbon steel; Door: Carbon steel, all-round foamed-in PU seal
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint; Mounting panel: Zinc-plated
- Color
- RAL 7035
- Supply includes
- Housing with door(s); Flange (gland) plate(s) in enclosure base; Mounting panel; Punched door strip; Lock: 3 mm double-bit
- Protection category NEMA
- NEMA 1; NEMA 3R; NEMA 4; NEMA 12
- Protection category IP to EN 60 529
- IP 66
- Type rating according to UL 50E
- Type 1; Type 3R; Type 4; Type 12
- IK code
- IK10
- Dimensions
- Width: 300 mm; Height: 300 mm; Depth: 210 mm
- Material thickness - door
- 1.5 mm
- Material thickness - enclosure
- 1.25 mm
- Material thickness – mounting plate
- 2 mm
- Dimensions of mounting plate (W x H)
- 250 mm x 275 mm
- Interchangeable door catch
- Yes
- Lock
- Lock version: Cam; No. of locks: 1; Lock Insert: 3 mm double-bit
- Gland plate
- Size: 1; Qty.: 1
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 6.44 kg
- Gross weight
- 6.7 kg
- PCF/VE (cradle-to-gate)
- 43.37 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- Bureau Veritas; DNV; Lloyds Register; UL + C-UL (listed)
- Width
- 300 mm
- Height
- 300 mm
- Depth
- 210 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 900 N
- Max. permitted load of the door(s) according to IEC 62208
- 250 N
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177813458
- SAP 1200365329
- Code 82387712
Product Documentation
Document preview: Rittal 1033000 — Data Sheet (OEM)
