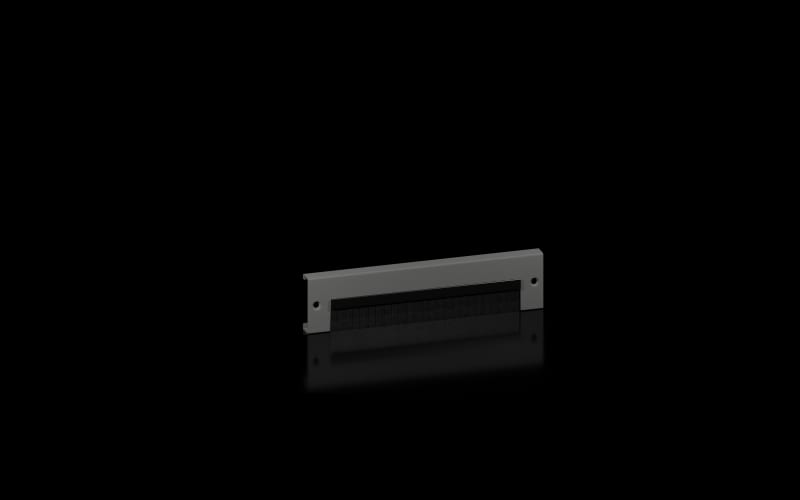

Rittal VX 8660.092 Base Trim Panel with Brush Strip, 600 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8660092 is a VX base trim panel with brush strip for enclosure widths and depths of 600 mm. The panel is manufactured from carbon steel with a self-extinguishing plastic brush strip and finished in RAL 9005 to suit VX25 base/plinth systems. It provides a cable-entry opening while limiting ingress of dust and small debris around cabinets on the shop floor. Optional front-panel fixing is required for installation in the depth.
Technical Specifications
- Manufacturer part number (MPN)
- 8660092
- EAN / GTIN
- 4028177985490
- Sales unit
- set
- Package quantity
- 2 set
- Model designation
- VX 8660.092
- Product type
- Base/Plinth Trim Panels with Brush
- Version
- With brush strip
- Material
- Base/plinth trims: Carbon steel; Brush strip: Plastic, self-extinguishing
- Color
- RAL 9005
- Dimensions
- Height: 100 mm
- Packaging unit
- 2 pc(s).
- Mounting tip
- The optional front panel fixing is required for installation in the depth.
- Net weight
- 1.1 kg
- Gross weight
- 1.136 kg
- Customs tariff number
- 94039910
- ETIM 9
- EC000721
- ETIM 8
- EC000721
- ECLASS 8.0
- 27182003
- Colour
- Black
- Width
- 600 mm
- Height
- 100 mm
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building depth
- 600 mm
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- No
- Suitable for outdoor installation
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177985490
- SAP 1200718205
- Code 83833484
Product Documentation
More from Rittal
Rittal
VX IT Gland Plate 800X1000 mm
5301344
Rittal
Wall Mounting Brackets H=120/122, Pack of 2
9121122
Rittal
VX IT Flange Plate-module 800X237,5 moh (5301348)
Rittal
Floor-standing cabinet VX 1200X2000X500
8205000
Rittal
Rittal XSEL0070 Brush Strip Insert, 245 mm, 30 mm Brush Length
Rittal
Gliderail TS IT (5501460)
Rittal
Rittal AX 6315.350 Operating Housing with Handle, 380 x 380 x 210 mm
6315350
Rittal

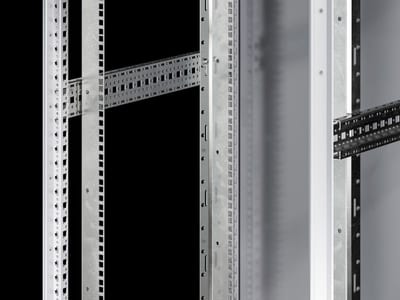

2 stkVX IT Mountingsvinkl std FRONT 42HE
