Rittal
Metal Flange AX knockout st 7
Part number2577100EAN / GTIN4028177925267HS code7307.91
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

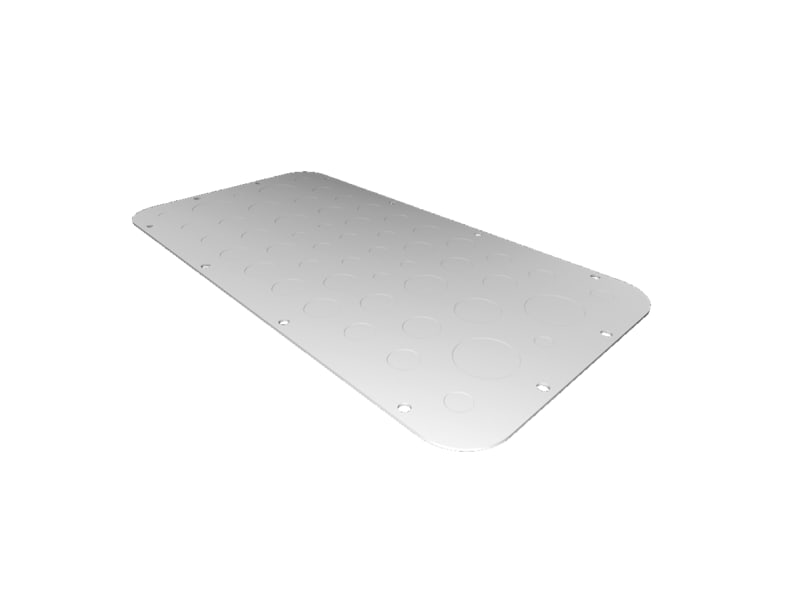

Rittal 2577100 SZ Flange Plates in metal, for AX, with metric knockout, BD: 436x221 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2577100
- EAN / GTIN
- 4028177925267
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- AX 2577.100
- Product type
- Metal gland plate
- Material
- Carbon steel
- Color
- RAL 7035
- No. of metric knockouts
- 6 x M12; 10 x M16; 8 x M20; 20 x M25; 4 x M32; 4 x M40
- Dimensions
- Width: 436 mm; Depth: 221 mm
- Gland plate
- Size: 7
- Protection category IP to EN 60 529
- IP 66 if correctly installed
- Type rating according to UL 50E
- Type 1; Type 12K
- Packaging unit
- 1 pc(s).
- Net weight
- 1.136 kg
- Gross weight
- 1.146 kg
- PCF/VE (cradle-to-gate)
- 5.9 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73079100
- ETIM 9
- EC000211
- ETIM 8
- EC000211
- ECLASS 8.0
- 27142421
- Approvals
- UL + C-UL - FTTA
- Width
- 436 mm
- Depth
- 221 mm
- Surface protection
- Powder coating
- Pre-stamping
- Yes
- Thread type
- Metric
- Number of connector holes
- 52
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7307.91
Cross References
- EAN 4028177925267
- SAP 1200380149
- Code 82389207
Product Documentation
Document preview: Rittal 2577100 — Data Sheet (OEM)
