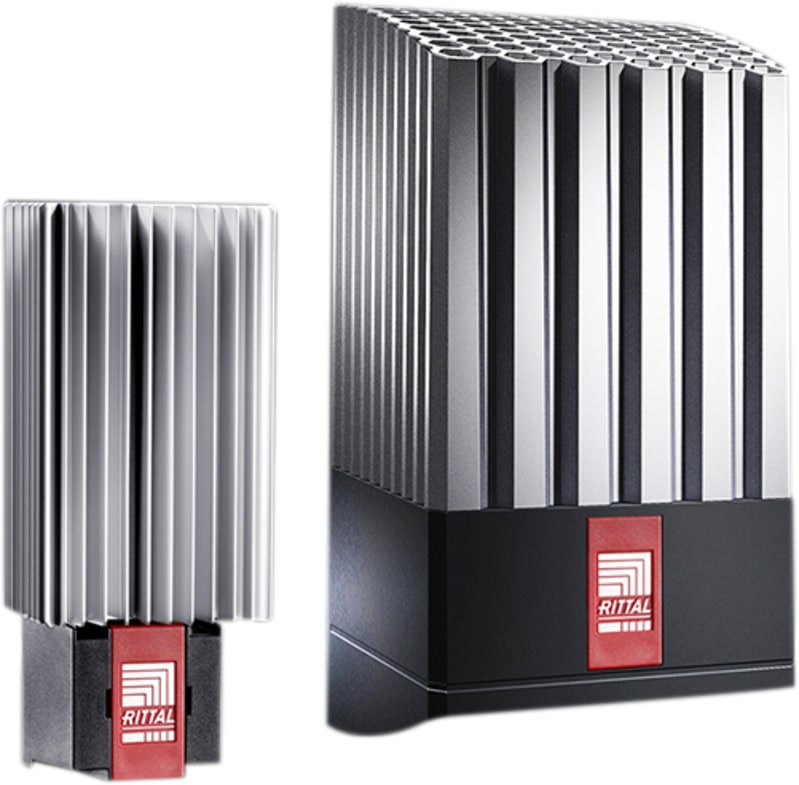

SK Heating element 250 W, 230V
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3105380 Manufacturer description: SK enclosure heater, with fan, 250/265 W, 230 V, 1~, 50/60 Hz, WHD: 103 x 200 x 103 mm. SK Heating element 250 W, 230V.
Technical Specifications
- Manufacturer part number (MPN)
- 3105380
- EAN / GTIN
- 4028177598584
- Sales unit
- pcs
- Model designation
- SK 3105.380
- Product type
- Enclosure Heater
- Material
- Aluminum, anodized
- Supply includes
- PTC heater with fan; Fasteners
- Continuous thermal output
- Continuous thermal output with fan
- Integrated fan
- Yes
- Note on Model No.
- Operation at a temperature of -40 °C is possible. Upon request, you will receive a manufacturer's declaration.
- Continuous thermal output at
- 250 W ‐ 265 W
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Dimensions
- Width: 103 mm; Height: 200 mm; Depth: 103 mm
- Protection category IP to IEC 60 529
- IP 20
- Protection category
- II (total insulation)
- Operating temperature range
- -33 °C...65 °C; -27 °F...149 °F
- Packaging unit
- 1 pc(s).
- Net weight
- 0.96 kg
- Gross weight
- 1.194 kg
- Customs tariff number
- 85162999
- ETIM 9
- EC000737
- ETIM 8
- EC000737
- ECLASS 8.0
- 27180710
- Width
- 103 mm
- Height
- 200 mm
- Depth
- 103 mm
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- Yes
- Rated power
- 250 W
- Operating voltage AC 50 Hz
- 230 V
- Operating voltage AC 60 Hz
- 230 V
- Continuous heating power at 10 °C
- 250 W
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 4028177598584
- SAP 1000113485
- Code 8611539
Product Documentation
