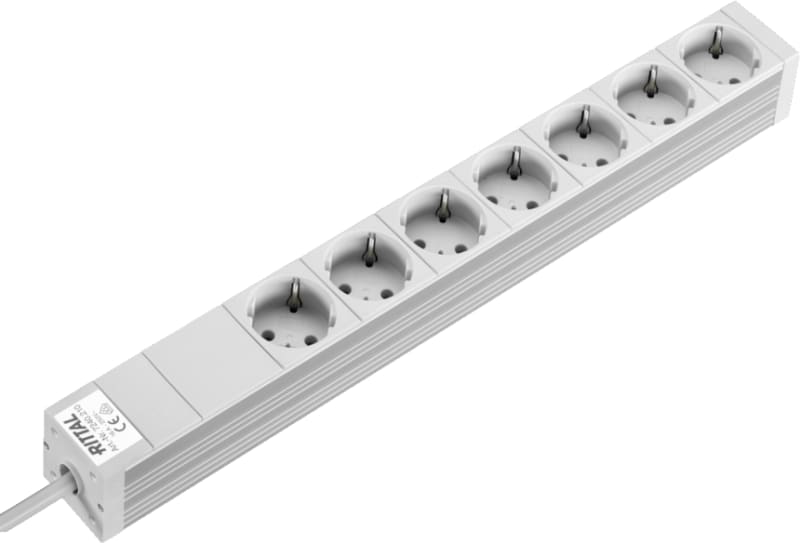

Rittal DK 7240.210 Socket Strip, 7 x Schuko CEE 7/3 (Type F), 250 V 16 A, 19" 1 U, without Switch

Rittal DK 7240.210 is a seven-way socket strip for 482.6 mm (19") enclosure levels, fitted with earthing-pin sockets to CEE 7/3 (type F, Schuko) rated 250 V AC 50 Hz at 16 A. The body is natural-anodised aluminium section with polycarbonate socket inserts; sockets are grey, RAL 7035 similar. It is supplied with two mounting brackets, assembly parts and a 2 m H05VV-F3G1.5 connection cable without connector, terminated with wire end ferrules. Overall 482.6 x 44 x 44 mm (L x H x D), mounting dimension 452.5 mm. It mounts on components with a 25 mm pitch pattern, on an enclosure frame, at the rear of an IT wall-mounted distributor, or on a 482.6 mm (19") level. Built to DIN 49 440-1. No on/off switch, no residual current device, no overvoltage protection and no mains filter are fitted. Rittal's own product data for DK 7240.210, the EAN on this record and the full specification below all describe the socket strip above; the shelf name was an error and has been corrected.

Manufacturer part number (MPN)

7240210

EAN / GTIN

4028177221161

Sales unit

pcs

Package quantity

25 pcs

Model designation

DK 7240.210

Product type

Socket strip

Design

Without switch

Material

Aluminium section, natural anodised; Socket inserts: Polycarbonate

Supply includes

Socket strip; 2 mounting brackets; Assembly parts; Connection cable, without connector, 2 m H05VV- F3G1,5

Sockets

7 x D, earthing-pin (type F, CEE 7/3)

Dimensions

Height: 44 mm; Depth: 44 mm; Length: 482.6 mm

Length of connection cable

2m

Connection cable (type)

H05VV-F3G1.5

Mounting dimensions

452.5 mm

Tolerance of mounting dimensions

25 mm

Rated operating voltage

250 V AC, 50 Hz

Rated voltage

250 V AC, 50 Hz

Type of electrical connection

Wire end ferrules

Installation options

Components with a 25 mm pitch pattern; Enclosure frame; IT wall-mounted distributor, at the rear, horizontal (adequate width provided); 482.6 mm (19") level

Standards

DIN 49 440-1

Colour of socket

Grey

Net weight

0.78 kg

Gross weight

0.9 kg

Customs tariff number

85366990

ETIM 9

EC000330

ECLASS 8.0

27142604

Explanations Tender text

Declaration of conformity

Socket strip with 7 sockets

, 250V/16A

Nominal current

16 A

Colour

Grey

Core cross section

1.5 mm²

Halogen free

No

Housing shape

Rectangular

Surface protection

Anodised

Length of power cord

2 m

Residual current circuit breaker (RCCB)

No

With on/off switch

No

Mains filter

No

With cover

No

Rotated central insert

No

Overvoltage protection

No

RAL-number (similar)

7035

Transparent

No

Surface finishing

Matt

Angle rotated central insert

45°

NEMA designation

None

Country of origin

Germany

HS Code

8538.10
