Rittal

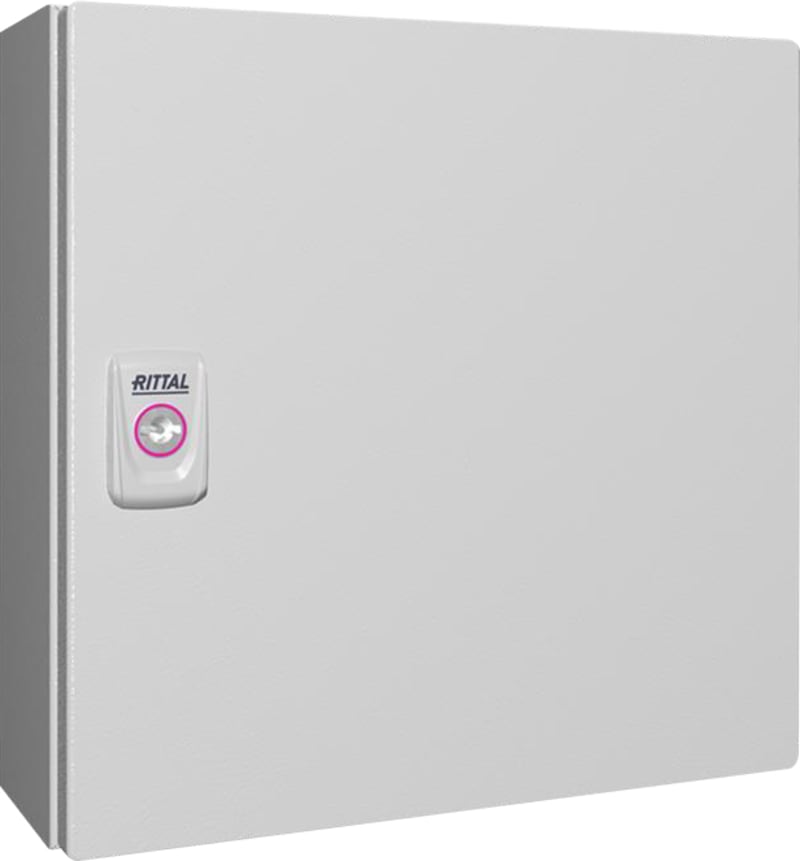

E-box KX 300X300X120
Part number1555000EAN / GTIN4028177816572HS code9403.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1555000 Manufacturer description: KX E-Box, WHD: 300x300x120 mm, sheet steel, with mounting plate, with door. KX E-box, BHD: 300x300x120 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1555000
- EAN / GTIN
- 4028177816572
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Model designation
- KX 1555.000
- Product type
- E-box KX, carbon steel
- Material
- Housing: Carbon steel; Door: Carbon steel, all-round foamed-in PU seal
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint; Mounting panel: Zinc-plated
- Color
- RAL 7035
- Supply includes
- Housing with door; Mounting panel; Cam lock with 3 mm double-bit insert; 180° hinge
- Protection category NEMA
- NEMA 1; NEMA 3R; NEMA 4; NEMA 12
- Protection category IP to EN 60 529
- IP 66
- Type rating according to UL 50E
- Type 1; Type 3R; Type 4; Type 12
- IK code
- IK08
- Dimensions
- Width: 300 mm; Height: 300 mm; Depth: 120 mm
- Dimensions of mounting plate (W x H)
- 275 mm x 285 mm
- Material thickness - enclosure
- 1.25 mm
- Material thickness - door
- 1.25 mm
- Material thickness – mounting plate
- 2 mm
- Lock
- No. of locks: 1
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 4.8 kg
- Gross weight
- 4.954 kg
- PCF/VE (cradle-to-gate)
- 34.53 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 84879059
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Certificates
- Protection category
- Approvals
- Bureau Veritas; DNV; Lloyds Register; UL + C-UL (listed)
- Colour
- Grey
- Width
- 300 mm
- Height
- 300 mm
- Depth
- 120 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177816572
- SAP 1200380025
- Code 82389387
Product Documentation
Document preview: Rittal 1555000 — Data Sheet (OEM)
