HD Junction BOX 300X200X120
Pricing
Request a quote
We reply within 24 hours
Product Description

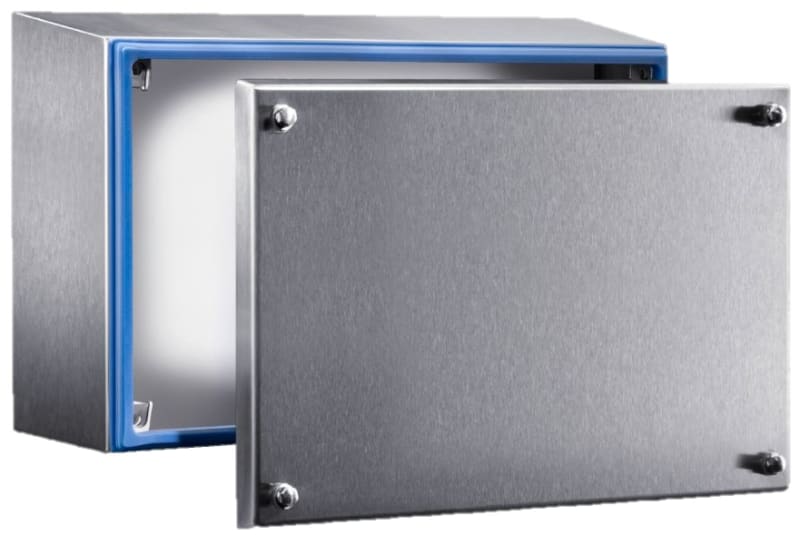

Rittal 1674600 Manufacturer description: HD Terminal box, WHD: 300x200x120 mm, Stainless steel 1.4301, with cover and silicone seal. HD junction box 1.4301 IP69K.
Technical Specifications
- Manufacturer part number (MPN)
- 1674600
- EAN / GTIN
- 4028177639768
- Sales unit
- pcs
- Model designation
- HD 1674.600
- Product type
- Junction box HD
- Version
- Hygienic Design Enclosures
- Material
- Housing and cover: Stainless steel 1.4301 (AISI 304)
- 1.5 mm; Installation bracket
- Carbon steel, zinc-plated
- 2.0 mm; Screw plug
- Stainless steel; Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
- Surface finish
- Housing and cover: Brushed, grain 400, peak-to-valley height; < 0.8 µm; Seal: Blue, dyed (RAL 5010)
- Supply includes
- Housing of all-round solid construction; Cover; Installation bracket (pre-assembled); Seal and quick-release bolt (supplied loose)
- Dimensions
- Width front: 300 mm; Width (rear): 327 mm; Height, front: 200 mm; Height rear: 227 mm; Depth: 120 mm
- IK code
- IK08
- Base material
- Stainless steel 1.4301 (AISI 304)
- Protection category IP to IEC 60 529
- IP 66; IP X9
- Protection category NEMA
- NEMA 1; NEMA 3; NEMA 3X; NEMA 4; NEMA 4X; NEMA 12; NEMA 13
- Type rating according to UL 50E
- Type 1; Type 3; Type 3X; Type 4; Type 4X; Type 12; Type 13
- Packaging unit
- 1 pc(s).
- Net weight
- 3.692 kg
- Gross weight
- 3.8 kg
- PCF/VE (cradle-to-gate)
- 14.39
- Customs tariff number
- 84879090
- ETIM 9
- EC002713
- ETIM 8
- EC002713
- ECLASS 8.0
- 27180101
- Approvals
- UL + C-UL (listed)
- Length
- 227 mm
- Width
- 327 mm
- Depth
- 120 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Type of inlet
- Gland nut
- Halogen free
- No
- Surface protection
- Untreated
- Degree of protection (NEMA)
- 12
- With cover
- No
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- No
- Circuit integrity
- None
- Operating temperature
- -40–80 °C
- Impact strength
- IK08
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
