Junction box KX 300X300X120 (1535000)
Pricing
Request a quote
We reply within 24 hours
Product Description

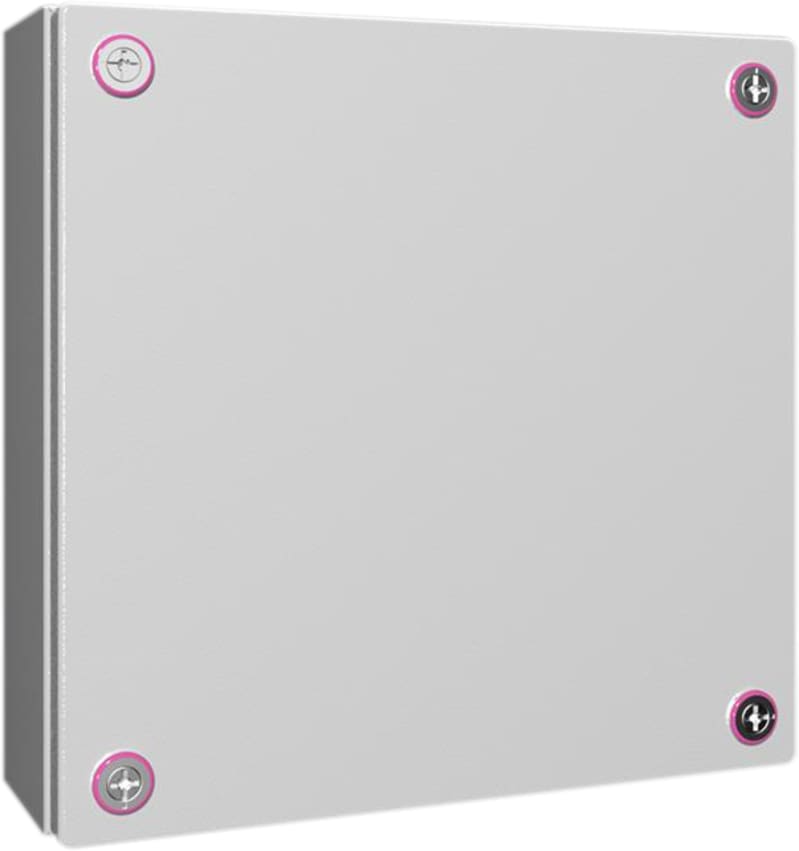

Rittal 1535000 Manufacturer description: KX Terminal box, WHD: 300x300x120 mm, sheet steel, without mounting plate, with cover, with gland plate. KX Junction box, BHD: 300x300x120 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1535000
- EAN / GTIN
- 4028177816404
- Sales unit
- pcs
- Model designation
- KX 1535.000
- Material
- Housing: Carbon steel; Cover: Carbon steel, all-round foamed-in PU seal
- Surface finish
- Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
- Color
- RAL 7035
- Supply includes
- Housing with cover; Mini-fasteners; Carbon steel flange plates with seals and assembly components
- Protection category NEMA
- NEMA 1; NEMA 12
- Protection category IP to EN 60 529
- IP 55
- Type rating according to UL 50E
- Type 1; Type 12
- IK code
- IK08
- Dimensions
- Width: 300 mm; Height: 300 mm; Depth: 120 mm
- Material thickness - cover
- 1.25 mm
- Material thickness - enclosure
- 1.25 mm
- Flange Plates
- :1+1; :1+1
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 3.943 kg
- Gross weight
- 4.24 kg
- PCF/VE (cradle-to-gate)
- 34.37 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 84879059
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Length
- 300 mm
- Width
- 300 mm
- Depth
- 120 mm
- Material plate thickness cabinet
- 1.25 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Type of inlet
- Gland nut
- Halogen free
- No
- Colour
- Grey
- Degree of protection (IP)
- IP55
- With cover
- No
- Cover attachment
- Snapped on
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 2500 V
- Circuit integrity
- None
- Impact strength
- IK08
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177816404
- SAP 1200365400
- Code 82404717
Product Documentation
More from Rittal
Rittal
Compact enclosure AX 1000X1200X300RF
1019000
Rittal
Junction box KX 600X400X120 (1540000)
Rittal
Comfort Handle VW for Half Profile Cylinder
8618250
Rittal
Spare Filter Mat SK 3243/44
3173100
Rittal
System Enclosure VXSE DD 1000X1800X400
5840600
Rittal
Rittal AX 1014.000 compact enclosure, stainless steel, 760 × 760 × 300 mm
1014000
Rittal
Mounting plate KX 300X200
1563800
Rittal
Junction box KX 600X400X120 (1512000)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1535000?
- 1535000 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 1535000.
- What is the HS code for 1535000?
- The customs tariff (HS) code for 1535000 is 8487.90.
- Who manufactures 1535000?
- 1535000 is a Rittal product in the Enclosures range.
- Is a datasheet available for 1535000?
- Yes — the 1535000 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1535000?
- The minimum order quantity is 1.
- Is 1535000 available?
- Yes — 1535000 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
