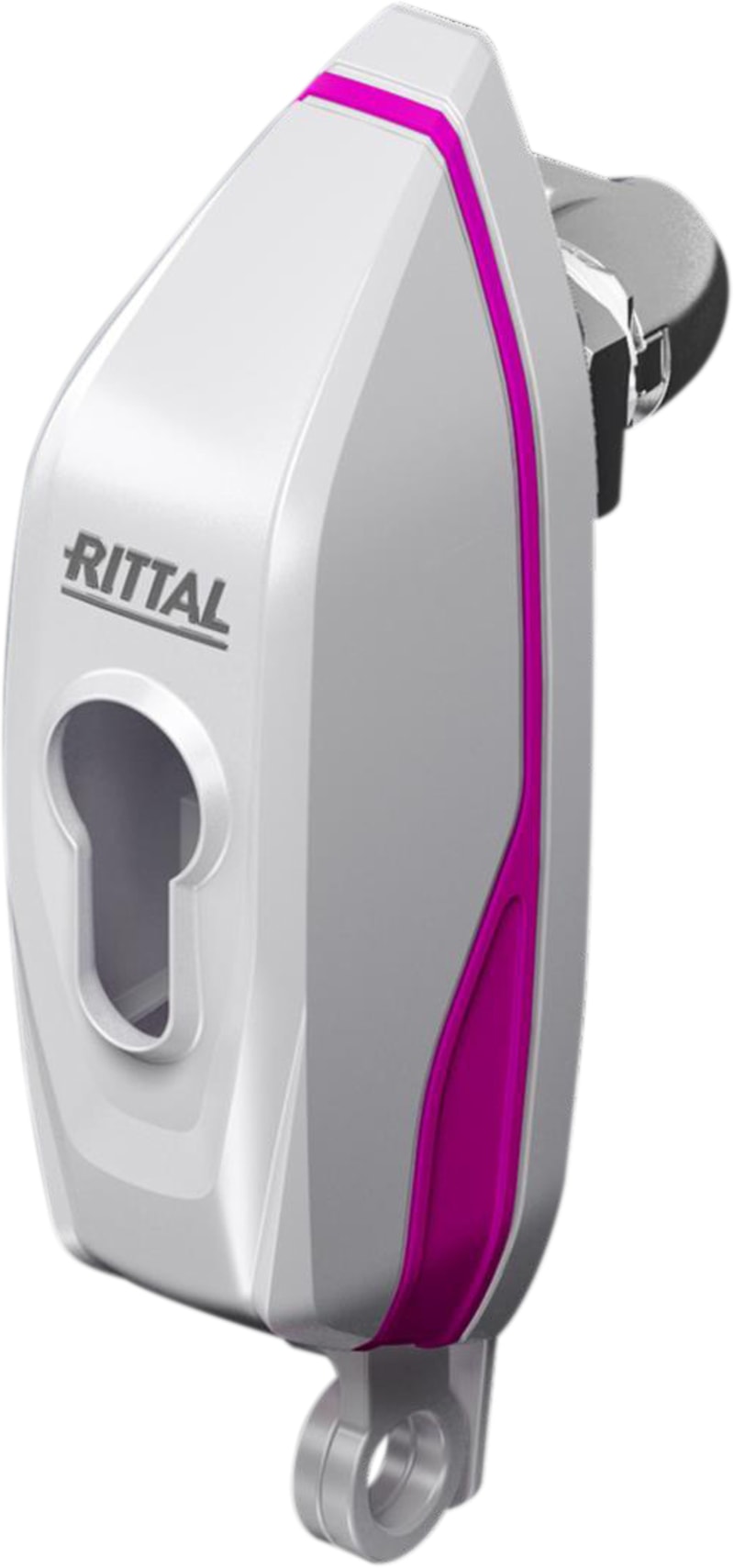

Rittal 2537300 AX Mini-Comfort Handle for AX/KX with Padlock and Cam

Rittal 2537300 is an AX Mini-Comfort Handle for AX and KX enclosures, prepared for lock inserts (type A) and semi-cylinders 40 or 45 mm to DIN 18252, or safety and push-button lock inserts of 40 mm length. Constructed from die-cast zinc and plastic in powder-coated RAL 7035 with a padlockable cam, and rated UL 50E Type 1/3R/4/12. Fits AX and AX IT enclosures with cam lock, KX E-Box, VX partial door, CX one-piece console, CX console, and CX desk unit. Country of origin is Germany.

Manufacturer part number (MPN)

2537300

EAN / GTIN

4028177938366

Sales unit

pcs

Package quantity

30 pcs

Model designation

AX 2537.300

Product type

Mini-Comfort Handle AX

Version

For padlock and lock inserts and semi-cylinder

Material

Die-cast zinc; Plastic

Surface finish

Powder-coated

Color

RAL 7035

Lock

Lock version: Prepared for version A lock inserts, installation of semi-cylinders 40 or 45 mm total length (according to DIN 18 252) or safety and push-button lock inserts with a length of 40 mm

Suitable for enclosure type

AX with cam lock, carbon sheet; AX IT with cam lock; KX E-Box; VX partial door; CX One-Piece Console; CX console; CX Desk Unit

Type rating according to UL 50E

Type 1; Type 3R; Type 4; Type 12

Packaging unit

1 pc(s).

Net weight

0.32 kg

Gross weight

0.324 kg

Customs tariff number

83024110

ETIM 9

EC000327

ETIM 8

EC000327

ECLASS 8.0

27189266

Approvals

DNV; UL + C-UL - FTTA

Padlock locking

Yes

Toggle

No

Espagnolette locking (3-point locking)

No

Country of origin

Germany

HS Code

8302.41

• EAN 4028177938366
• SAP 1200380124
• Code 82390924
