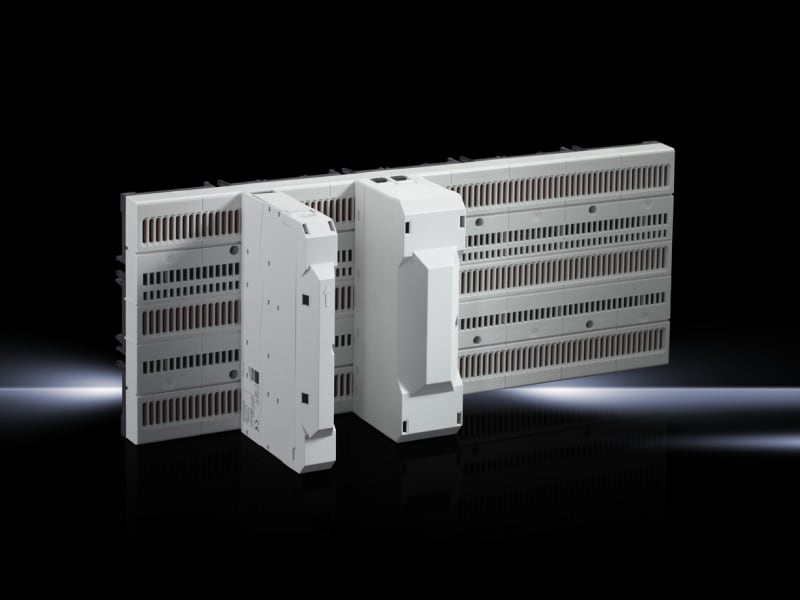

Connection Adapter 125 A, 690 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9635210 Manufacturer description: SV Connection adaptor, 125 A, 690 V (AC), 600 V (DC), 3-pole, cable outlet top/bottom, round conductor connection 6-50 mm². Connection Adapter, 125 A, 690 V (AC), 600 V (DC), 3-pole, cable outlet top / bottom.
Technical Specifications
- Manufacturer part number (MPN)
- 9635210
- EAN / GTIN
- 4028177934603
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- SV 9635.210
- Product type
- Connection Adapters
- Function principle
- To supply power to the board
- Material
- Polyamide; Fire behavior corresponding to UL 94
- Color
- RAL 7035
- Note on Model No.
- Can be used as center feed or as longitudinal connector of two bayed boards
- Rated operating voltage
- 600 V (DC), 3~; 690 V (AC), 3~
- Number of poles
- 3-pole
- Cable outlet
- Top/bottom
- Electrical UL ratings
- Rated operating voltage (max.) UL: 600 V AC480 V AC
- Type of connection (electrical)
- Box terminal
- Connection for round conductor
- AWG 1 - 10
- Dimensions
- Width: 45 mm; Height: 160 mm; Depth: 92.5 mm
- Packaging unit
- 4 pc(s).
- Net weight
- 1.12 kg
- Gross weight
- 1.183 kg
- Copper weight (kg per piece)
- 0.04
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL + C-UL (listed)
- Rated current
- 125 A
- Mounting rail armament
- None
- Type of electric connection
- Round conductor
- Rated current In
- 125 A
- Min. busbar thickness
- 0 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 45 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177934603
- SAP 1200596561
- Code 82972162
Product Documentation
