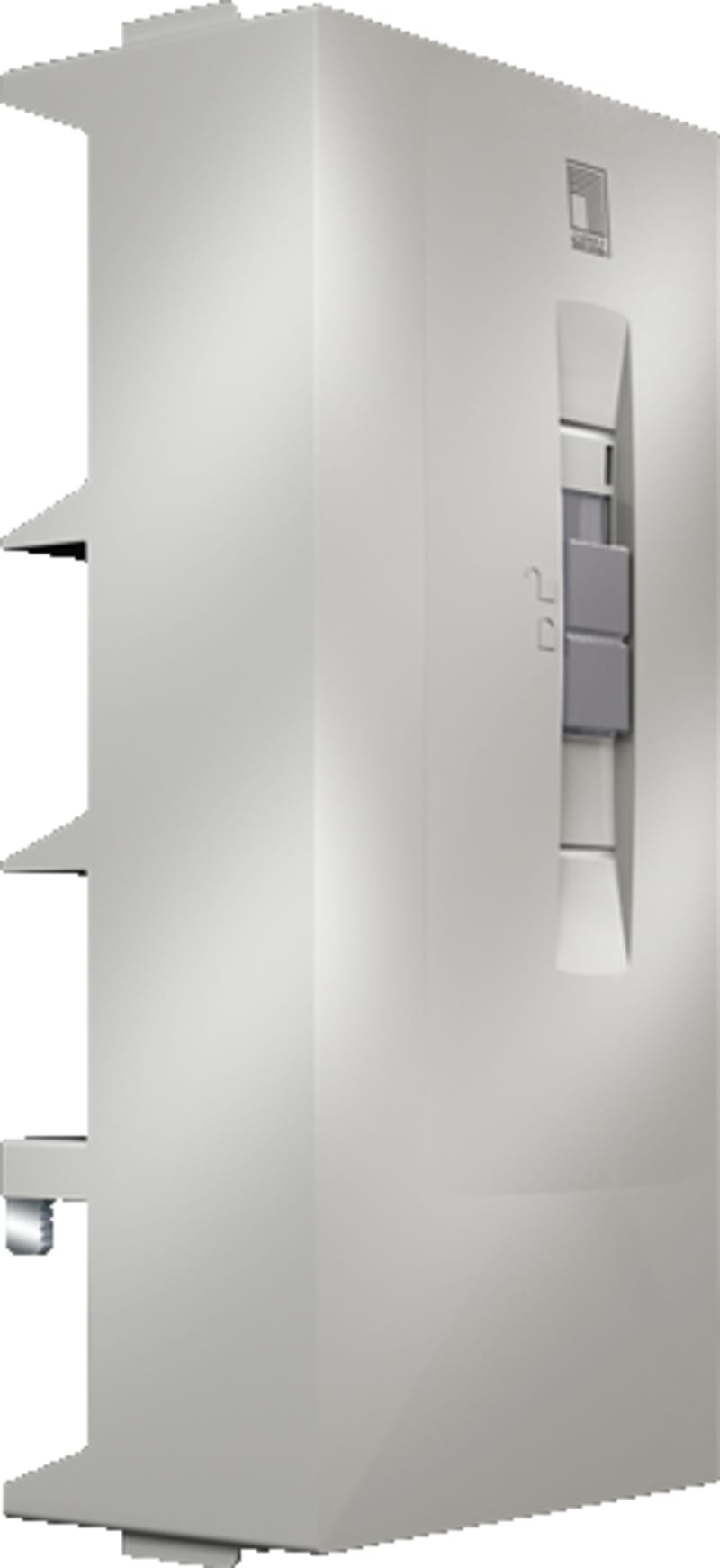

Tilkoplingsadapter 250A,690V (9342254)

Rittal 9342254 Manufacturer description: SV Connection adaptor, 250 A, 690 V, 4-pole, cable outet top/ bottom, round conductor connection 35-120 mm², clamping area; WH: 18,5x15,5 mm. For connection round conductors. For rails m. 60 mm senter-for-senter distance. 2,5mm² for 10mm².

Manufacturer part number (MPN)

9342254

EAN / GTIN

4028177536838

Sales unit

pcs

Package quantity

6 pcs

Model designation

SV 9342.254

Product type

Connection Adapters

Material

Cover: ABS; Punched section: Polyamide; Fire protection corresponding to UL 94-V0

Color

RAL 7035

Rated operating voltage

690 V, 4~

Cable outlet

Top/bottom

For bar systems with center-to- center spacing

60 mm

Number of poles

4-pole

Dimensions

Width: 118 mm; Height: 270 mm

Suitable for busbars

Height: 5, 10 mm

For busbar thickness

120 mm

Packaging unit

1 pc(s).

Net weight

1.17 kg

Gross weight

1.18 kg

Copper weight (kg per piece)

0.222

Customs tariff number

85369010

ETIM 9

EC001531

ECLASS 8.0

27370304

Approvals

UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)

Rated current

250 A

Mounting rail armament

None

Rated current In

250 A

Min. busbar thickness

5 mm

Max. busbar thickness

10 mm

Width of the adaptor

118 mm

Rail width

18.5 mm

Busbar distance

60 mm

Country of origin

Germany

HS Code

8536.90

• EAN 4028177536838
• SAP 1000325035
• Code 8353408
