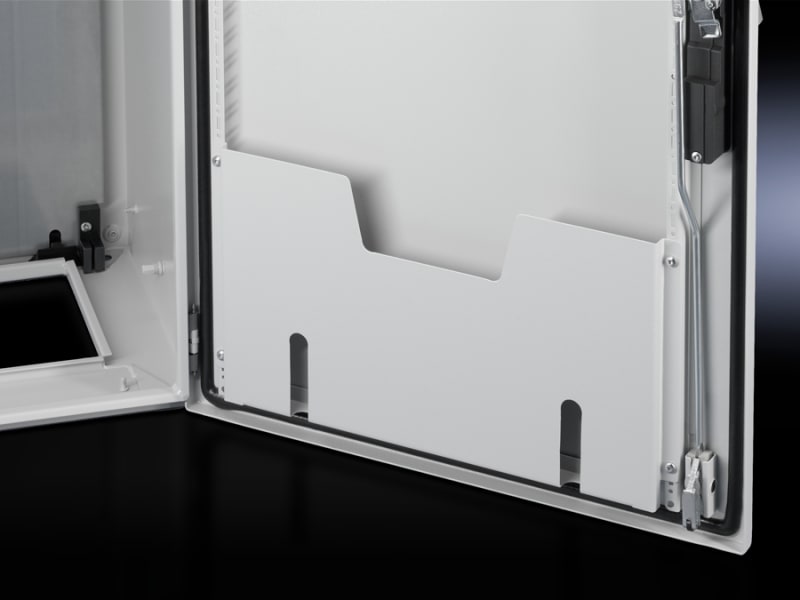

Rittal 4116500 SZ Steel Wiring Plan Pocket for 600 mm Door Width
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SZ 4116.500 carbon-steel wiring plan pocket for mounting on the door frame profile at the desired height. Suitable for VX, TS, VX SE, PC and TP bottom-part enclosures with a door width of 600 mm and depth 35 mm. Clearance width 455 mm, clearance height 210 mm, RAL 7035. Assembly components included.
Technical Specifications
- Manufacturer part number (MPN)
- 4116500
- EAN / GTIN
- 4028177526310
- Sales unit
- pcs
- Model designation
- SZ 4116.500
- Product type
- Carbon Steel Wiring Plan Pocket
- Color
- RAL 7035
- Supply includes
- Assembly components
- Clearance height
- 210 mm
- Clearance width
- 455 mm
- Suitable for door width
- 600 mm
- Dimensions
- Depth: 35 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.733 kg
- Gross weight
- 0.86 kg
- Customs tariff number
- 73269098
- ETIM 9
- EC000317
- ETIM 8
- EC000317
- ECLASS 8.0
- 27189267
- Colour
- Grey
- Model
- Wiring diagram pocket
- Depth
- 35 mm
- Self adhesive mounting
- No
- RAL-number
- 7035
- Suitable for enclosure building width
- 600 mm
- Material
- Plastic
- Transparent
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177526310
- SAP 1000116840
- Code 81025524
Product Documentation
More from Rittal
Rittal
PDU met.+ 32A/1P 24XC13+4XC19
7979516
Rittal
19" Blanking Panel ALUM.4HE, 3 PCS
1934200
Rittal
VX IT std 800X2200X1000
5314126
Rittal
VX IT dyn 800X2000X1200 vent
5311816
Rittal

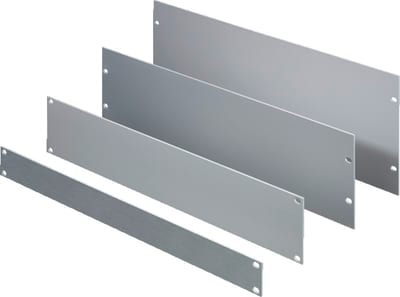

19" Blanking Panel ALUM 9HE 3 pcs
1939200
Rittal

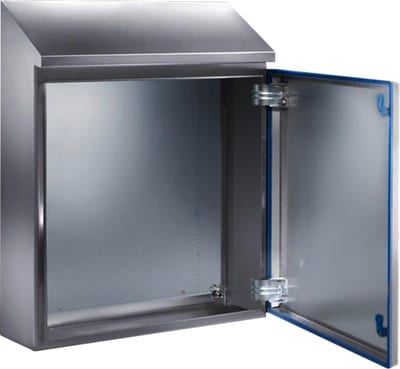

HD wall-mount cabinet (AISI 304) 510X550X210
1307600
Rittal

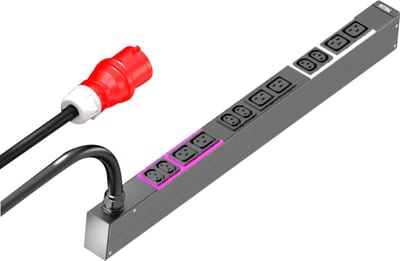

PDU basic 16A/3P 6XC13+6XC19
7979132
Rittal

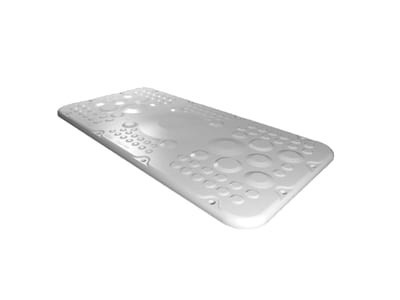

Rittal 2567300 SZ Plastic Gland Plate for AX with Membranes Size 7 436x221 mm
