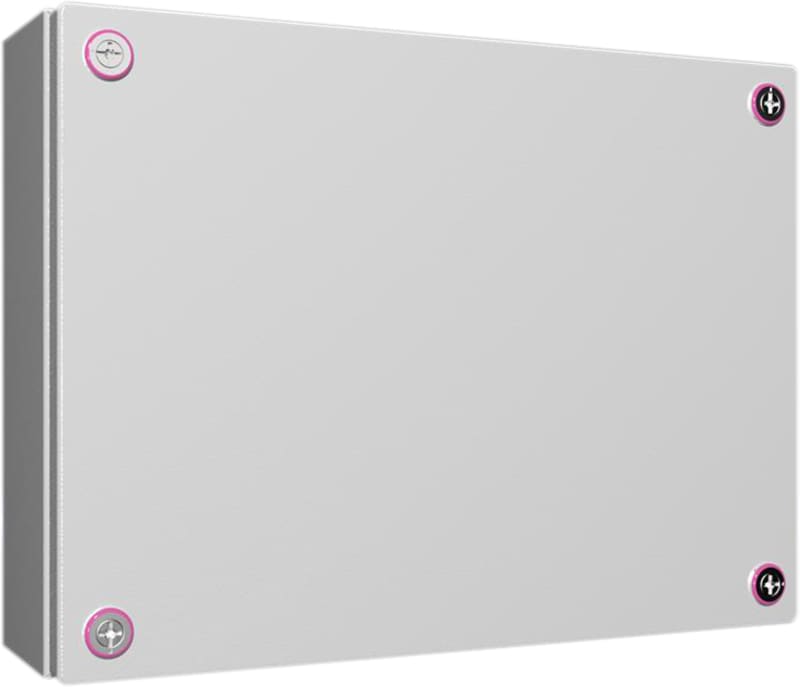

Junction box KX 500X300X120 (1537000)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1537000 Manufacturer description: KX Terminal box, WHD: 500x300x120 mm, sheet steel, without mounting plate, with cover, with gland plate. KX Junction box, BHD: 500x300x120 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1537000
- EAN / GTIN
- 4028177816428
- Sales unit
- pcs
- Model designation
- KX 1537.000
- Material
- Housing: Carbon steel; Cover: Carbon steel, all-round foamed-in PU seal
- Surface finish
- Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
- Color
- RAL 7035
- Supply includes
- Housing with cover; Mini-fasteners; Carbon steel flange plates with seals and assembly components
- Protection category NEMA
- NEMA 1; NEMA 12
- Protection category IP to EN 60 529
- IP 55
- Type rating according to UL 50E
- Type 1; Type 12
- IK code
- IK08
- Dimensions
- Width: 500 mm; Height: 300 mm; Depth: 120 mm
- Material thickness - cover
- 1.25 mm
- Material thickness - enclosure
- 1.25 mm
- Flange Plates
- :1+1; :2+2
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 6.15 kg
- Gross weight
- 6.44 kg
- PCF/VE (cradle-to-gate)
- 40.46 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 84879059
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Length
- 300 mm
- Width
- 500 mm
- Depth
- 120 mm
- Material plate thickness cabinet
- 1.25 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Type of inlet
- Gland nut
- Halogen free
- No
- Colour
- Grey
- Degree of protection (IP)
- IP55
- With cover
- No
- Cover attachment
- Snapped on
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 2500 V
- Circuit integrity
- None
- Impact strength
- IK08
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177816428
- SAP 1200365402
- Code 82387713
Product Documentation
More from Rittal
Rittal
EMC-output filter 204mm
3239060
Rittal
Rittal 2304010 HD Cam Lock, Stainless Steel 1.4404
Rittal
Doorstopper VX (8618430)
Rittal

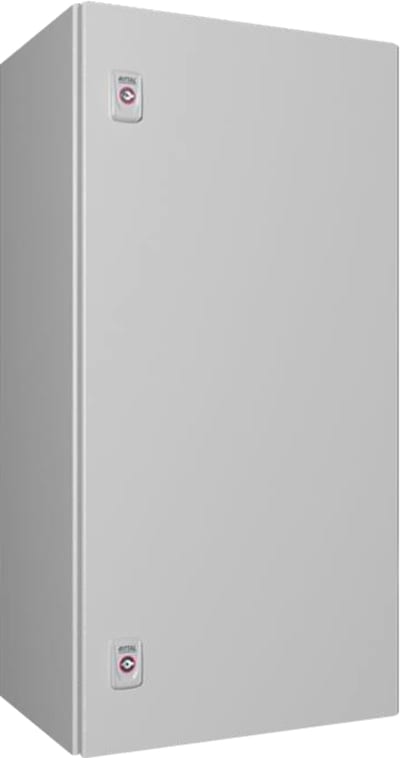

Compact enclosure AX 400X800X300
1037000
Rittal

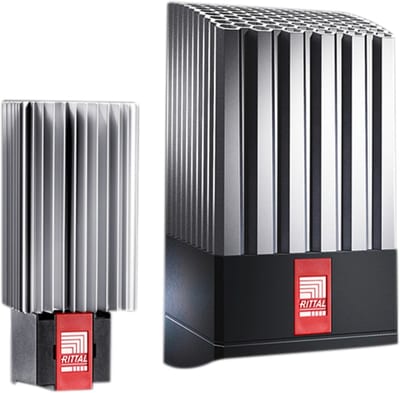

Heating element 150W without fan
3105370
Rittal

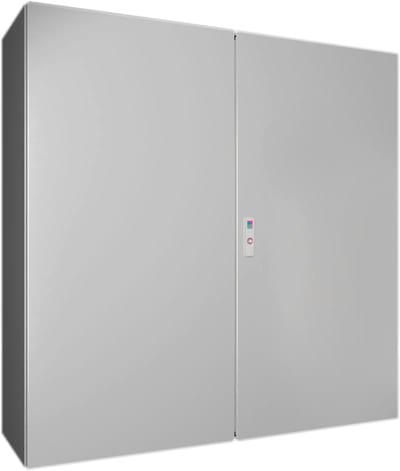

Compact enclosure AX 1200X1200X400
1116000
Rittal

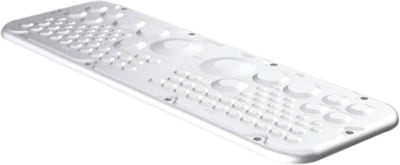

Rittal SZ 2563.300 Plastic Gland Plate with Diaphragms for AX, Size 3
2563300
Rittal

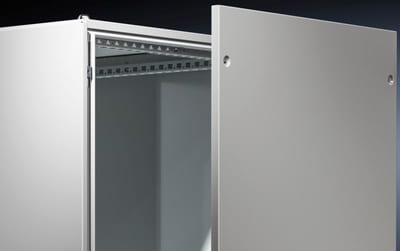

Sidewall VX 2000X600 2 pcs
