Heating element 150W without fan
Pricing
Request a quote
We reply within 24 hours
Product Description

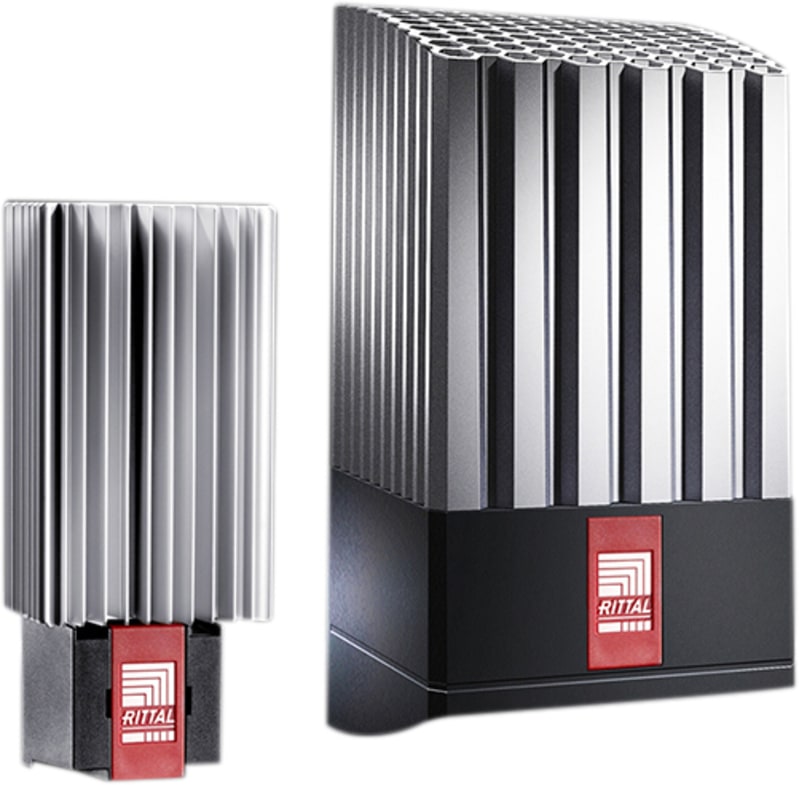

Rittal 3105370 Manufacturer description: SK enclosure heater, without fan, 130-150 W, 110-240 V, 1~, 50/60; Hz, WHD: 90 x 180 x 75 mm. Heating element 150W without fan for enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- 3105370
- EAN / GTIN
- 4028177638679
- Sales unit
- pcs
- Model designation
- SK 3105.370
- Product type
- Enclosure Heater
- Material
- Aluminum, anodized
- Supply includes
- PTC heater; Quick-connection terminal; Fasteners
- Note on Model No.
- Operation at a temperature of -40 °C is possible. Upon request, you will receive a manufacturer's declaration.; Special voltages available on request. We reserve the right to make technical modifications.
- Continuous thermal output at
- 130 W ‐ 150 W
- Rated operating voltage
- 110 V - 240 V, 1~, 50 Hz/60 Hz
- Dimensions
- Width: 90 mm; Height: 180 mm; Depth: 75 mm
- Protection category IP to IEC 60 529
- IP 20
- Protection category
- II (total insulation)
- Operating temperature range
- -33 °C...65 °C; -27 °F...149 °F
- Packaging unit
- 1 pc(s).
- Net weight
- 0.85 kg
- Gross weight
- 0.935 kg
- Customs tariff number
- 85162999
- ETIM 9
- EC000737
- ETIM 8
- EC000737
- ECLASS 8.0
- 27180710
- Width
- 90 mm
- Height
- 180 mm
- Depth
- 75 mm
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Rated power
- 150 W
- Operating voltage AC 50 Hz
- 99–242 V
- Operating voltage AC 60 Hz
- 99–242 V
- Continuous heating power at 10 °C
- 130 W
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4028177638679
- SAP 1000110964
- Code 8982928
Product Documentation
More from Rittal
Rittal
Compact enclosure AX 1200X1200X400
1116000
Rittal
Rittal SZ 2563.300 Plastic Gland Plate with Diaphragms for AX, Size 3
2563300
Rittal
Sidewall VX 2000X600 2 pcs
8106245
Rittal
Compact enclosure AX 600X600X350
1360000
Rittal
Plinth VX incl. front/rear panel 100X1200
8660007
Rittal
Spare Filter Mat SK 3323
3171100
Rittal

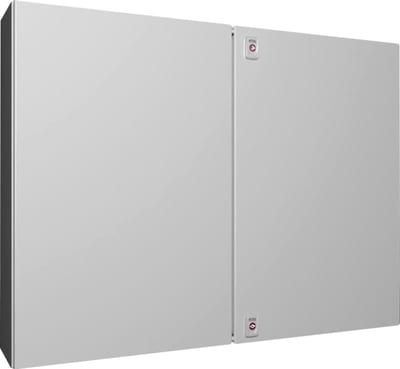

Compact enclosure AX 1000X760X210
1100000
Rittal

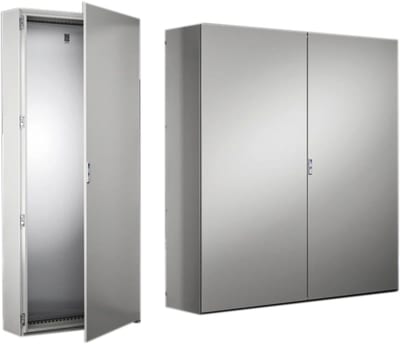

System Enclosure VX SE 600X1800X300
