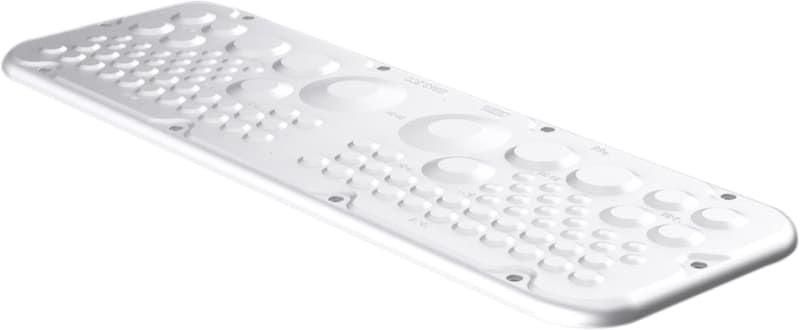

Rittal SZ 2563.300 Plastic Gland Plate with Diaphragms for AX, Size 3
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2563300 is a plastic gland plate with membrane diaphragms for AX enclosures, size 3, measuring 447 x 149 mm. The plate provides 36 cable entries of 5-11 mm and reaches IP66 and Type 1/Type 12 ratings when correctly installed. Material is UL 94-V0 plastic in RAL 7035 grey. Supplied in packs of 25 pieces.
Technical Specifications
- Manufacturer part number (MPN)
- 2563300 EAN / GTIN: 4028177935754 Sales unit: pcs Package quantity: 25 pcs Model designation: SZ 2563.300 Product type: Plastic Cable Gland Plates material: Plastic to UL 94-V0 Color: Similar to RAL 7035 Dimensions: Width: 447 mm; Depth: 149 mm Gland plate: Size: 3 Protection category IP to EN 60 529: IP 66 if correctly installed Type rating according to UL 50E: Type 1; Type 12 Quantity of cable entries and Ø: 36 x 5-11 Packaging unit: 1 pc(s). Net weight: 0.61 kg Gross weight: 0.63 kg Customs tariff number: 39269097 ETIM 9: EC000211 ETIM 8: EC000211 ECLASS 8.0: 27142421 Approvals: UL + C-UL - FTTA Width: 447 mm Depth: 149 mm Surface protection: Untreated Pre-stamping: No Thread type: PG Number of connector holes: 98 Country of origin: Finland
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177935754
- SAP 1200380130
- Code 82389205
Product Documentation
