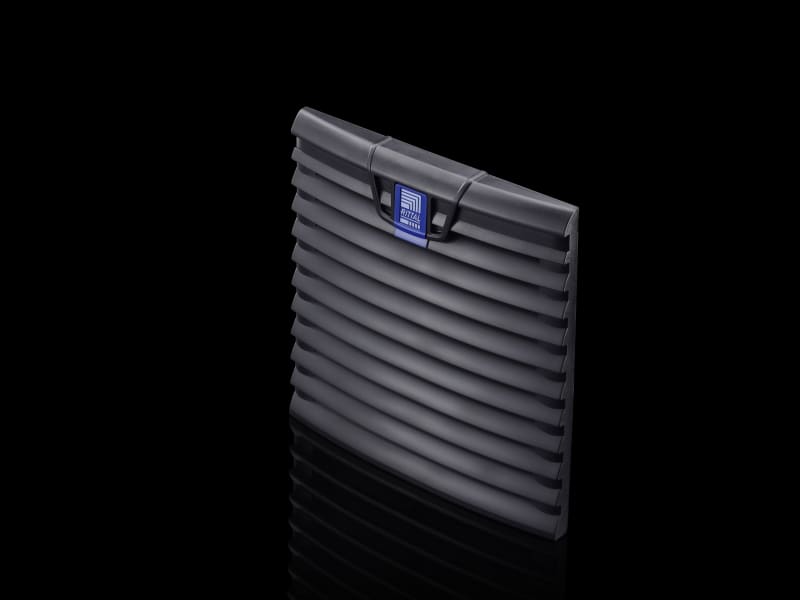

Rittal SK 3239.208 Outlet Filter for SK 3239.1xx RAL 9005
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SK 3239.208 is a passive outlet filter used with SK 3239.1xx fan-and-filter units to ventilate enclosures by convection. ABS housing in RAL 9005 measures 204 x 204 x 24 mm with a 177 x 177 mm cut-out and includes a chopped-fiber filter mat. Protection ratings reach IP54/IP56 (with appropriate hoods) and NEMA Type 3/3R/4/4X. Typical applications include control cabinets requiring balanced natural airflow.
Technical Specifications
- Manufacturer part number (MPN)
- 3239208
- EAN / GTIN
- 4028177663497
- Sales unit
- pcs
- Model designation
- SK 3239.208
- Product type
- Outlet Filters
- Material
- ABS
- Color
- RAL 9005
- Supply includes
- Outlet Filters; Chopped fiber filter mat
- Mounting cut-out
- Width of opening: 177 mm; Cut-out height: 177 mm
- Suitable for Model No.
- SK 3239.1xx
- Dimensions
- Width: 204 mm; Height: 204 mm; Depth: 24 mm
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Packaging unit
- 1 pc(s).
- Net weight
- 0.3 kg
- Gross weight
- 0.4 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC002513
- ETIM 8
- EC002513
- ECLASS 8.0
- 27180706
- Approvals
- UL + C-UL - FTTA; UR + C-UR (recognized)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177663497
- SAP 1200652530
- Code 83076896
Product Documentation
