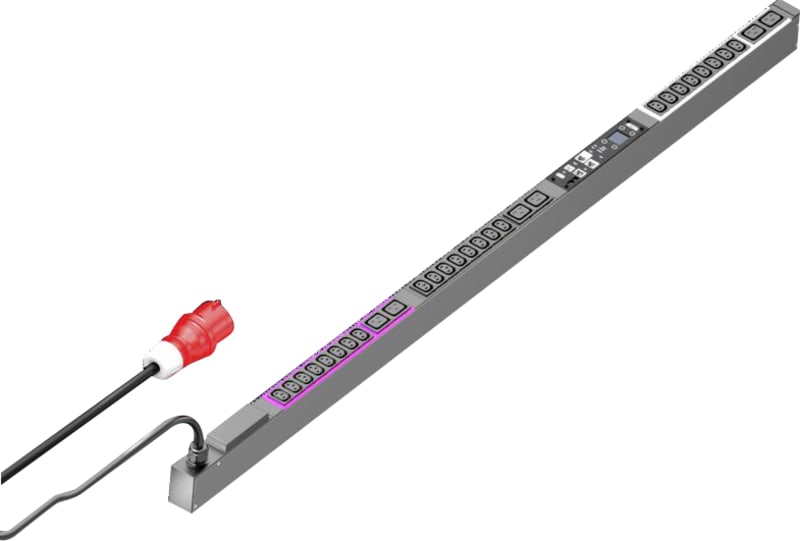

PDU met.+ 16A/3P 24XC13+6XC19
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7979536 Manufacturer description: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 24x C13, 6x C19. PDU metered+ 16A/3P CEE 24xC13+6xC19, DK PDU metered+, Compact basic power distributor.
Technical Specifications
- Manufacturer part number (MPN)
- 7979536
- EAN / GTIN
- 4028177948426
- Sales unit
- pcs
- Model designation
- DK 7979.536
- Product type
- PDU metered plus
- Design
- PDU, metered plus
- Technical specifications
- Display/controller unit in the PDU enclosure rotatable through 180° and replaceable; Integral, fully-redundant power pack, power supply from all phases; Error-tolerant PDU power supply redundant across all phases; Voltage V, current A, frequency Hz; Active power, active energy, apparent power, apparent energy; Power factor (cosPhi) and phase angle; Zero conductor current measurement/load imbalance detection; Fuse monitoring for PDUs with integral fuse; Bright TFT display, 128 x 128 pixels (RGB) with back-lighting and energy-saving mode to display output data and basic PDU configuration; Position sensors for display rotation and correct PDU representation on the website; Multi-colour LEDs (green/amber/red) to indicate switching states and limits per individual output slot; Power LED to indicate voltage
- Material
- Aluminium section, black anodised; Slots: Plastic
- Supply includes
- Assembly parts
- Dimensions
- Width: 44 mm; Depth: 70 mm; Length: 1,495 mm
- No. of sockets and type
- 24 x C13 / 6 x C19
- Sockets
- 24 x C 13; 6 x C 19
- Rated operating voltage
- 400 V (AC)
- Power consumption
- 11 kW
- Infeeds
- Qty.: 1; Phases per infeed: 3~
- Length of connection cable
- 3m
- Type of electrical connection
- CEE
- Directives
- EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- Standards
- EN 62368-1; EN 61000-3; EN 61000-4; EN 61000-6; EN 62053-21
- Protocols
- Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP; TCP/IP v4 & v6, DHCP, DNS; SNMP v1, v2c & v3, Modbus/TCP, OPC-UA; MIB for linking into 3rd party DCIM software; FTP/SFTP (update/file transfer)
- Operating temperature range
- 5 °C...50 °C
- Ambient humidity (non- condensing)
- 10...95 %
- Storage temperature range
- -20 °C...70 °C
- To fit
- Enclosure type: VX IT enclosure frame: ≥ 1,800 mm; Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
- Net weight
- 5.1 kg
- Gross weight
- 5.44 kg
- Customs tariff number
- 85366990
- ETIM 9
- EC002762
- ETIM 8
- EC002762
- ECLASS 8.0
- 27142604
- Approvals
- Cyber Security Certificate; TÜV-tested safety
- Mains filter
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177948426
- SAP 1200542663
- Code 82801886
