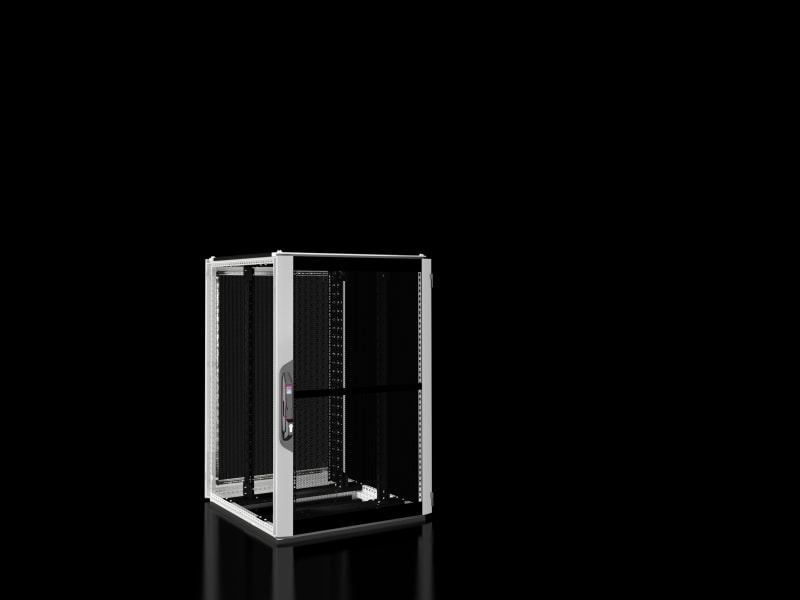

VX IT std 800X1200X800 vent

Rittal 5303114 Manufacturer description: VX IT, 19" mounting angles, standard, front and rear, vented, WHD:; 800 x 1200 x 800 mm, 24 U. VX IT, ventilated, 19 "mounting angle standard, RAL7035, WHD 800x1200x800mm, 24U.

Manufacturer part number (MPN)

5303114

EAN / GTIN

4028177944831

Sales unit

pcs

Model designation

VX 5303.114

Product type

Network/server rack VX IT

Design

Vented; Standard with 482.6 mm (19") mounting angles

Material

Sheet steel; Aluminium; Front door: Aluminium

1.25 mm; Rear door

Sheet steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Interior installation: Spray-finished; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished

General colour

RAL 7035

Colour

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005; Interior installation, vent grille at the front: RAL 9005; Handle and hinges: RAL 9005

Supply includes

VX enclosure frame with doors and roof plate; Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges; Sheet steel rear door, vented (vented surface area approx. 85% perforated); Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E; Mounting angles, 482.6 mm (19"); Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out.; 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet; Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate; Sheet steel door, vented, one-piece, 130° hinges

Dimensions

Width: 800 mm; Height: 1,200 mm; Depth: 800 mm

Units

24 U

Distance between levels as delivered

520 mm

Roof design

multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate

Front door design

Aluminium/sheet steel door, vented, one-piece, 180° hinges

Mounting angle design

482.6 mm (19") mounting angles, standard in the VX IT

Base design

Open

Mounting angles position

482.6 mm (19") level, front and rear

Load capacity

8,000 N

Basic material

Sheet steel

Net weight

57 kg

Gross weight

67.5 kg

PCF per pack (cradle-to-gate)

166.3 kg CO2 eq (Cat B)

Note on PCF category

Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ETIM 8

EC002499

ECLASS 8.0

27180207

Approvals

UL + C-UL (listed)

Mounting level

Front and rear

Type of profile rail

L-shape

Number of doors

2

Type of ventilation

Passive

Width

800 mm

Height

1200 mm

Depth

800 mm

Number of height units

24

Max. load capacity

1500 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

9403.20

• EAN 4028177944831
• SAP 1200493114
• Code 82691054
