Rittal SK 3181.125 IP55 Pleated Filter for 3239.xxx Fan Units
Pricing
Request a quote
We reply within 24 hours
Product Description

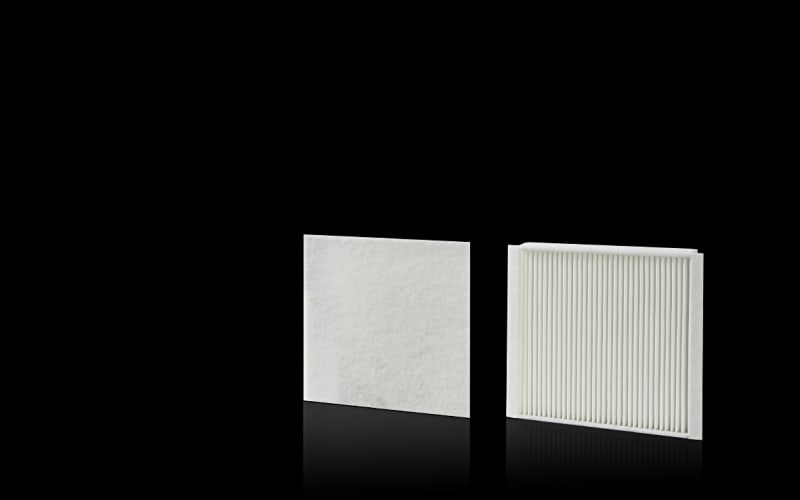

Rittal SK 3181.125 is a pleated filter (167 x 167 x 21 mm) for use with SK 3239.3xx and 3239.7xx fan-and-filter and outlet-filter units, maintaining IP55 when installed. Construction combines a polyester base with meltblown polycarbonate and an absorber mat. Not suitable for use in EMC filter fans. Supplied in packs of 5. Typical applications include enclosure ventilation systems requiring higher ingress protection than standard mat filters.
Technical Specifications
- Manufacturer part number (MPN)
- 3181125
- EAN / GTIN
- 4028177969100
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Model designation
- SK 3181.125
- Product type
- Pleated filter
- Version
- for fan-and-filter units / outlet filters
- Material
- Pleated filter: base polyester, meltblown polycarbonate; Absorber mat: 100% polyester
- Color
- White
- Suitable for Model No.
- 3239.3xx; 3239.7xx
- Dimensions
- Width: 167 mm; Height: 167 mm; Depth: 21 mm
- Absorber mat dimensions
- Width: 173 mm; Height: 173 mm
- Protection category IP to IEC 60 529
- IP 55 when mounted in filter fan/outlet filter
- Note on Model No.
- Not suitable for use in EMC filter fans.
- Packaging unit
- 5 pc(s).
- Net weight
- 0.24 kg
- Gross weight
- 0.26 kg
- Customs tariff number
- 56039390
- ETIM 9
- EC002513
- ETIM 8
- EC002513
- ECLASS 8.0
- 27180706
- Approvals
- CSA; UR + C-UR (recognized)
- Colour
- White
- Width
- 167 mm
- Height
- 167 mm
- Depth
- 21 mm
- EMC-version
- No
- With filter mat
- Yes
- Degree of protection (IP)
- IP55
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 5603.93
Cross References
- EAN 4028177969100
- SAP 1200688248
- Code 83280040
Product Documentation
More from Rittal
Rittal

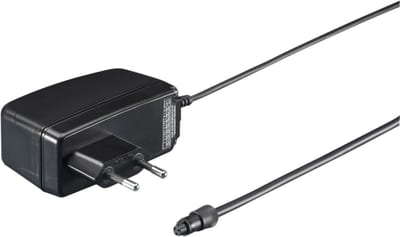

Adapter for LED-light 230 V AC
4315860
Rittal

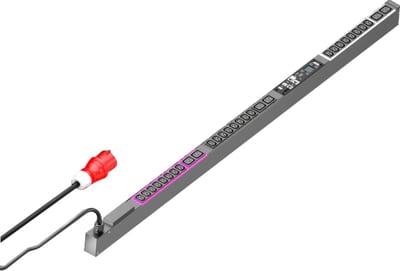

PDU met.+ 16A/3P 24XC13+6XC19
7979536
Rittal

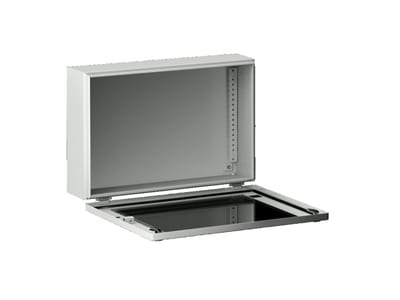

Bus-cabinet KX 400X300X155
1611000
Rittal

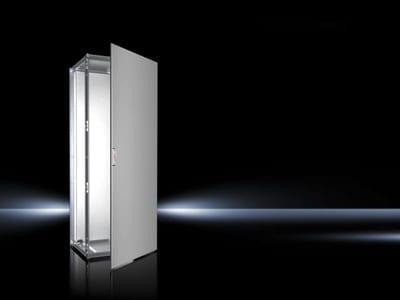

Floor-Standing Enclosure VX rf 600X2000X600
