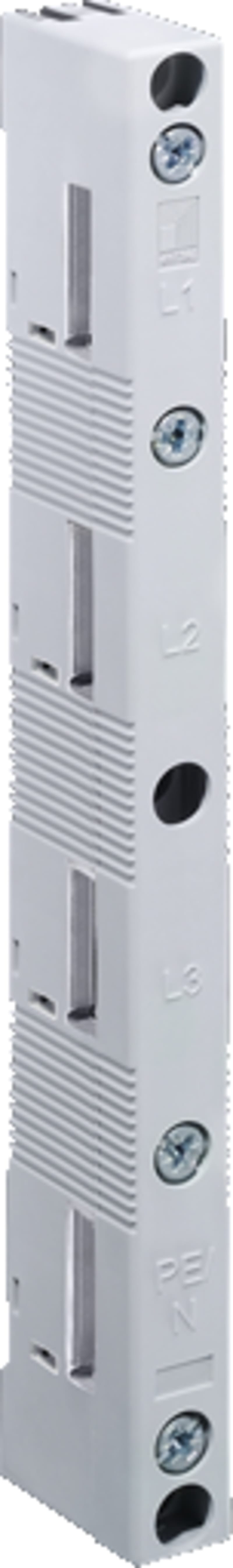

RILINE60 busbarh. pk 4
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9340004 Manufacturer description: SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar; WH: 12x5-30x10 mm, UL design. Shield clamp 4-pole.
Technical Specifications
- Manufacturer part number (MPN)
- 9340004
- EAN / GTIN
- 4028177536715
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- SV 9340.004
- Product type
- Busbar Supports
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 1000 V, 3~
- Note on Model No.
- When 12 x 5/10 mm busbars are used, spacer 9340.090 must also be used; The use of a base tray is required for UL applications.; UL approval only applies in conjunction with AC application
- Number of poles
- 4-pole
- Suitable for Model No.
- 3580000
- With internal attachment
- Yes
- Center-to-center spacing of busbars
- 60 mm
- Suitable for busbars
- 12 x 5 - 30 x 10
- Packaging unit
- 4 pc(s).
- Net weight
- 0.84 kg
- Gross weight
- 0.915 kg
- Customs tariff number
- 85469010
- ETIM 9
- EC001166
- ECLASS 8.0
- 27400607
- Approvals
- ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Busbar distance
- 60 mm
- Max. rated current
- 800 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177536715
- SAP 1000116823
- Code 81082507
Product Documentation
More from Rittal
Rittal
Rittal SK Blue e Wall-Mounted Cooling Unit 1500 W, 230 V, Carbon Steel, 400x950x260 mm
3305500
Rittal
E-box KX 300X800X155
1579000
Rittal
Rittal Blue e SK 3328.540 Wall-Mounted Cooling Unit, 2000 W, 400/460 V 3~
3328540
Rittal
Push-button inns.f. Ergoform S
2468000
Rittal

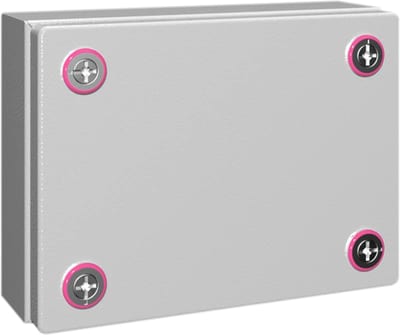

Junction box KX 200X150X80
1528000
Rittal

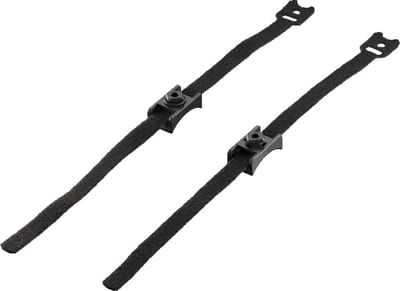

Rittal DK 5502.155 Nylon Hook-and-Loop Cable Strap Holder, 400 mm, Pack of 10
5502155
Rittal

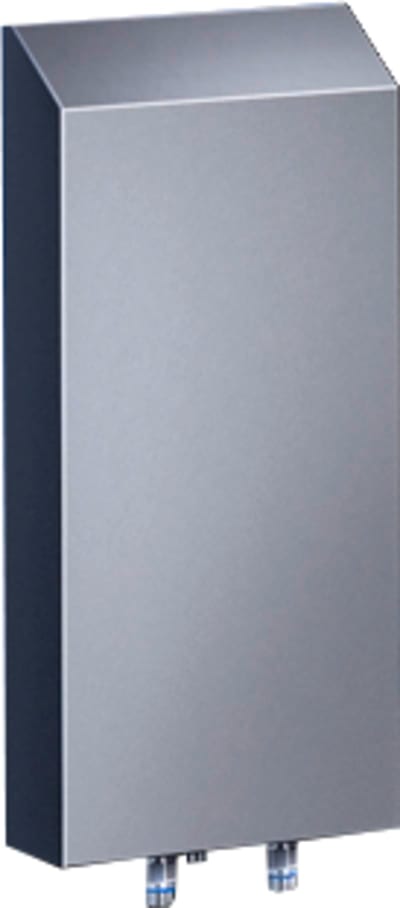

air/water heat exchanger HD 1300W
3215700
Rittal

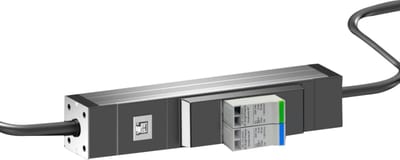

PDU surge protection device 16A/1P
