air/water heat exchanger HD 1300W
Pricing
Request a quote
We reply within 24 hours
Product Description

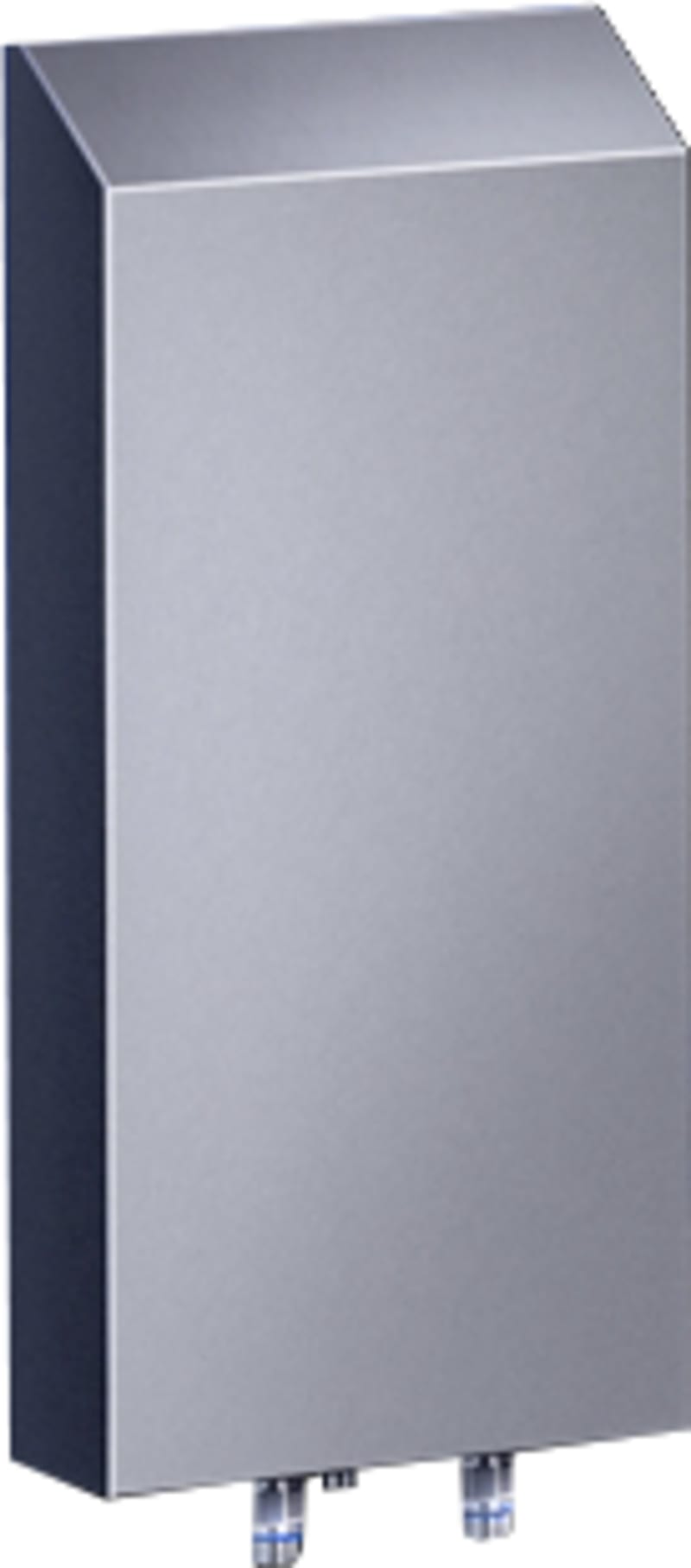

Rittal 3215700 Manufacturer description: SK Air/water heat exchanger, wall-mounted, 4095 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x; 100 mm. Air/water heat exchanger, wall mounting, HD, 1.2 kW, 230 V, 1~, 50/60 Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 3215700 EAN / GTIN: 4028177806405 Sales unit: pcs Model designation: SK 3215.700 Product type: Air-Water Heat Exchangers Version: Water-carrying parts copper/brass (Cu/CuZn) material: Housing: Stainless steel 1.4301 (AISI 304) Surface finish: Housing: Brushed, grain 400, peak-to-valley height < 0.8 µm Supply includes: Wired ready for connection; Drilling template; Sealing and assembly components Total cooling output: L 35 W 10 at 200 l/h: 1 kW; L 35 W 10 at 400 l/h: 1.2 kW; L 35 W 10 at 200 l/h: 3,412 BTU/h; L 35 W 10 at 400 l/h: 4,095 BTU/h Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz Rated power Pel: At 50 Hz: 77 W; At 60 Hz: 104 W Permissible operating pressure (p. max.): 1: 10 bar; 14.5: 145 PSI Duty cycle: 100 % Cooling medium: Water (see Internet for specifications) Water inlet temperature: 1 °C...30 °C; 34 °F...86 °F Water connections: G ⅜" external thread Temperature control: Thermostat-controlled solenoid valve Temperature monitoring: Internal thermostat, with change-over contact, switching load 16 A, setting range +20 °C ... +60 °C (factory setting +35 °C) Operating temperature range: 1 °C...70 °C; 34 °F...158 °F Dimensions: Width: 215 mm; Height: 982 mm; Depth: 100 mm Setting range: 20 °C...60 °C; 68 °F...140 °F Protection category IP to EN 60 529: IP 56/59 Protection category NEMA: NEMA 4X Packaging unit: 1 pc(s). Net weight: 14 kg Gross weight: 14 kg Customs tariff number: 84158300 ETIM 9: EC002515 ETIM 8: EC002515 ECLASS 8.0: 27180712 Approvals: CSA; UL + C-UL - FTTA; UR + C-UR (recognized) Add-on type: Wall surface mounted Voltage type: AC Nominal cooling performance L35W10 200l/h: 1000 W Nominal cooling performance L35W10 400l/h: 1200 W Country of origin: Italy
Standards & Compliance
- HS Code
- 8415.83
Cross References
- EAN 4028177806405
- SAP 1200027790
- Code 81650889
