PDU surge protection device 16A/1P
Pricing
Request a quote
We reply within 24 hours
Product Description

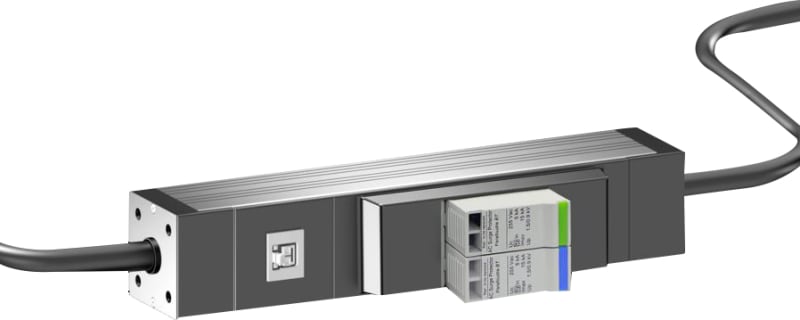

Rittal 7979721 Manufacturer description: DK surge voltage protector module, for terminal unit protection (type 3) with alarm contact, for fastening to the enclosure frame, rated power: 3.7 kW, rated current: 16 A, 1~, connection type: CEE connector/coupling, connection cable / length: H05VV F3G2.5 / 1 m, extruded aluminium section, anodised, RAL 9005, incl. assembly parts, DK surge voltage protector module. Surge voltage protector module, for terminal unit protection (type 3) with alarm contact.
Technical Specifications
- Manufacturer part number (MPN)
- 7979721
- EAN / GTIN
- 4028177948525
- Sales unit
- pcs
- Model designation
- DK 7979.721
- Product type
- Overvoltage protection module type
- Design
- Overvoltage protection type 3
- Material
- Extruded aluminium section, anodised
- Colour
- RAL 9005
- Supply includes
- Assembly parts
- Power consumption
- 3.7 kW
- Type of electrical connection
- CEE connector/coupling
- Directives
- Low Voltage Directive 2014/35/EU; EMC directive 2014/30/EU
- Standards
- IEC 61 643-11; EN 61 643-11
- Dimensions
- Width: 44 mm; Height: 75 mm; Length: 250 mm
- Input cable connection (type/ length)
- H05VV-F5G2.5, 1 m
- Output cable connection (type/ length)
- H05VV-F5G2.5, 2 m
- Net weight
- 1.6 kg
- Gross weight
- 2.08 kg
- Customs tariff number
- 85366990
- ETIM 9
- EC000942
- ECLASS 8.0
- 27130806
- Rated current
- 16 A
- System configuration DC
- No
- System configuration TN-S
- Yes
- System configuration TT
- No
- Number of conductors (without earthing)
- 2
- Nominal discharge surge current (8/20)
- 15 kA
- Max. discharge surge current (8/20)
- 15 kA
- Nominal voltage AC
- 255 V
- Max. PV-voltage
- 1500 V
- Voltage protection level
- 0.9 kV
- Integrated backup fuse
- No
- Mounting method
- In housing
- Max. conductor cross section flexible (fine-strand)
- 2.5 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- None
- Category type 2
- No
- Degree of protection (IP)
- IP52
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4028177948525
- SAP 1200542514
- Code 82802124
Product Documentation
