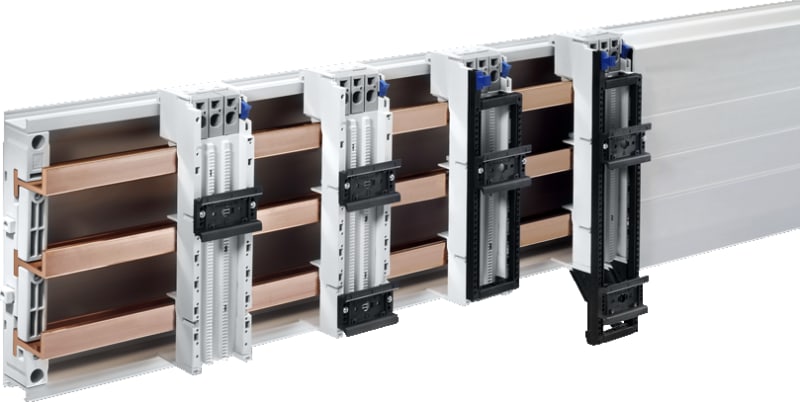

App. adapter OM 65A,2,5-16mm² (9340630)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9340630 Manufacturer description: SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support frame, support rail TS 55E. OM-adapter 65 A with spring terminal, with 1 DIN rail, width 55 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9340630
- EAN / GTIN
- 4028177502666
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Model designation
- SV 9340.630
- Product type
- OM adapter
- Version
- with tension spring clamp
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- Rated operating voltage
- 690 V, 3~
- For bar systems with center-to- center spacing
- 60 mm
- Support rail type
- Support frame, 1 x TS 55E
- Number of poles
- 3-pole
- Note on Model No.
- According to a heat dissipation test to IEC 61 439-1, a current carrying capacity of up to 80 A is supported
- Dimensions
- Width: 55 mm; Height: 208 mm
- Connection of round conductors
- 2.5 ‐ 16 mm²
- Support rails Qty/height
- 1 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Support frame (W x H)
- 55 mm x 170 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.32 kg
- Gross weight
- 0.33 kg
- Copper weight (kg per piece)
- 0.059
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS; DNV; Lloyds Register
- Mounting rail armament
- None
- Rated current In
- 65 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 55 mm
- Rail width
- 55 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177502666
- SAP 1000116759
- Code 81069379
Product Documentation
More from Rittal
Rittal

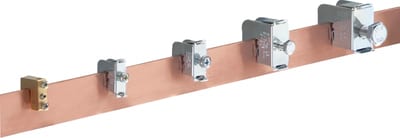

For.terminal 70-185mm 6-10 CU
3459500
Rittal
Insert cable gland 5mm
2580005
Rittal

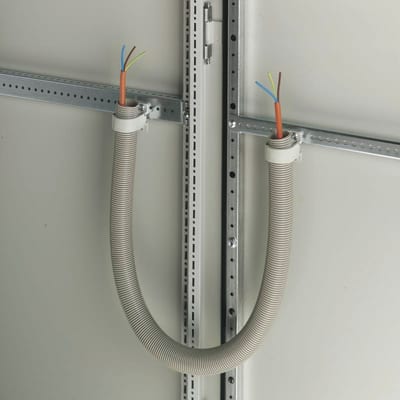

Flexible Cable Conduit Holder/16 20 pcs
2593000
Rittal
VX-Cable Trunking 145X2000 mm (5302122)
Rittal
Cable Gland M32X1,5 15/frp
2411641
Rittal

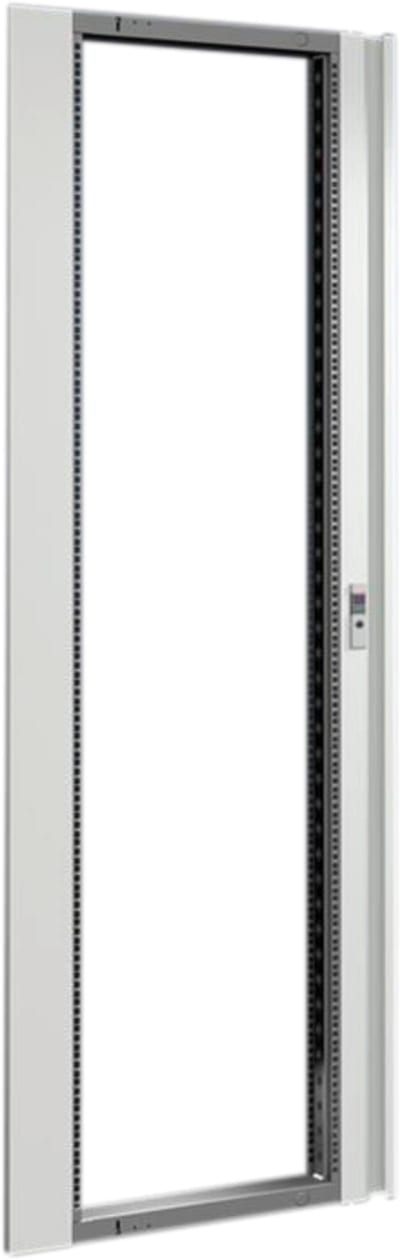

Swing frame VX, large, 45HE 800 (8619034)
Rittal

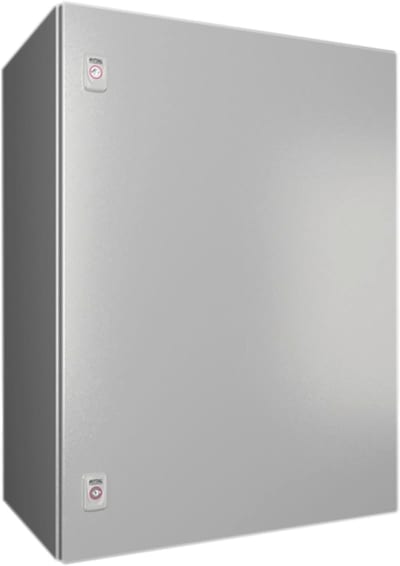

Compact enclosure AX 600X800X400
1059000
Rittal

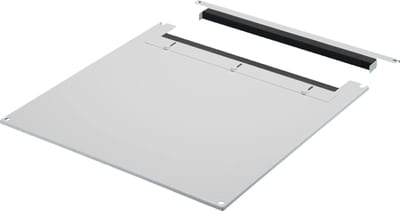

Top plate cableinnf. 800X1000
