Rittal

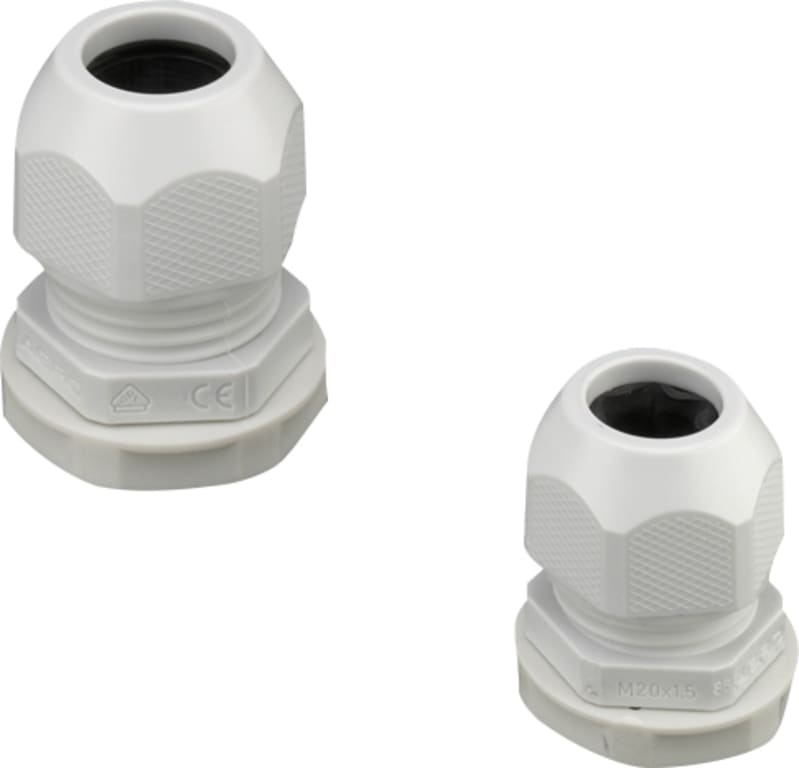

Cable Gland M32X1,5 15/frp
Part number2411641EAN / GTIN4028177809963HS code3926.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2411641 Cable Gland in polyamide, RAL7035, M32X1,5 15/frp.
Technical Specifications
- Manufacturer part number (MPN)
- 2411641
- EAN / GTIN
- 4028177809963
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Model designation
- SZ 2411.641
- Product type
- Cable gland, polyamide
- Material
- Polyamide 6; Seal: CR/NBR
- Color
- RAL 7035
- Protection category IP to IEC 60 529
- IP 68 (5 bar, 30 min.)
- Dimensions
- Height: 42 mm
- Thread
- M32 x 1.5
- Thread length
- 10 mm
- Min. cable diameter
- 15 mm
- Max. cable diameter
- 21 mm
- Operating temperature range
- -30 °C...100 °C; -22 °F...212 °F
- Width across flats
- 36 mm
- Type rating according to UL 50E
- Type 1; Type 4; Type 4X; Type 12; Type 13
- Packaging unit
- 15 pc(s).
- Net weight
- 0.48 kg
- Gross weight
- 0.503 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC000441
- ETIM 8
- EC000441
- ECLASS 8.0
- 27149109
- Approvals
- CSA + CSAus; UL + C-UL (listed); VDE
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 32
- Pitch thread
- 1.5 mm
- Wrench width
- 17 mm
- Hexagon angular dimension
- 17 mm
- Surface protection
- Untreated
- Halogen free
- No
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- RAL-number
- 7035
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177809963
- SAP 1200596536
- Code 82972154
Product Documentation
Document preview: Rittal 2411641 — Data Sheet (OEM)
More from Rittal
Rittal
Swing frame VX, large, 45HE 800 (8619034)
Rittal
Compact enclosure AX 600X800X400
1059000
Rittal
Top plate cableinnf. 800X1000
7826805
Rittal
Rittal RiLine60 cover profile 4-pole 1100 mm PLS 1600
9340214
Rittal
Floor-standing cabinet VX 600X1800X500
8685000
Rittal

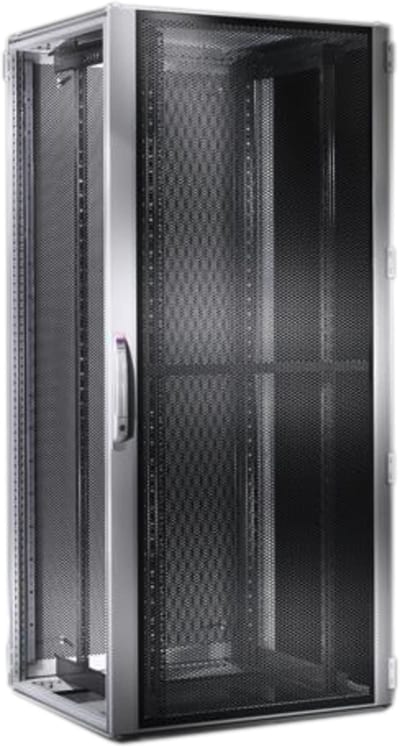

VX IT std 600X2200X1000 vent
5313113
Rittal

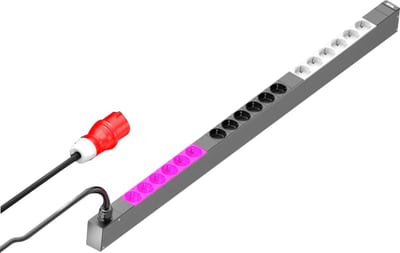

PDU basic 16A/3P 18X7/3 Schuko
7979133
Rittal

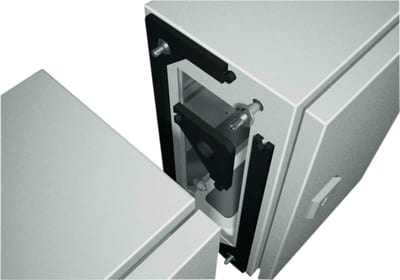

AE KL Rekkemountingsett
