Rittal
VX-Cable Trunking 145X2000 mm (5302122)
Part number5302122EAN / GTIN4028177952720HS code7326.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

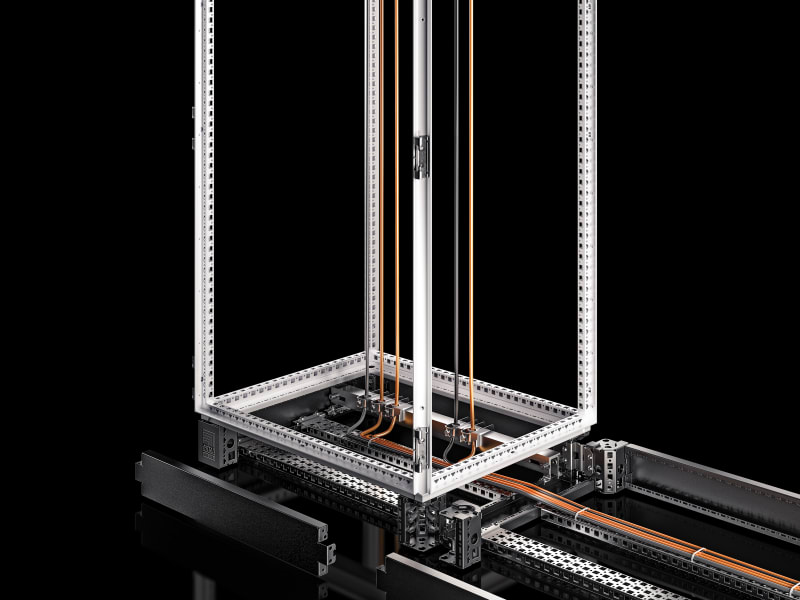

Rittal 5302122 Cable Trunking for VX IT, B x H: 145 x 2200 mm, RAL 9005.
Technical Specifications
- Manufacturer part number (MPN)
- 5302122
- EAN / GTIN
- 4028177952720
- Sales unit
- pcs
- Model designation
- VX 5302.122
- Product type
- Cable route
- Applications
- For vertical cable routing and strain relief for network and server applications
- Material
- Carbon steel
- Surface finish
- Spray-finished
- Color
- RAL 9005
- Supply includes
- Assembly components
- Installation options
- On the VX IT frame between the roof and base frame, all round; Alternatively, a screw fastening between the upper and lower depth stays is possible in 800 mm wide VX IT racks
- Mounting tip
- Assembly is by means of quick attachment across the entire cabinet depth on the enclosure frame. For installation in 800 mm wide cabinets, an additional screw connection to the depth stays of the 19″ installation is possible
- Dimensions
- Width: 145 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 4.8 kg
- Gross weight
- 5.02 kg
- PCF/VE (cradle-to-gate)
- 19.8 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 83024200
- ETIM 9
- EC000047
- ECLASS 8.0
- 27400703
- Width
- 145 mm
- Halogen free
- No
- Height
- 2200 mm
- Flexible
- No
- Type of side wall
- Slotted
- Self-extinguishing
- Yes
- Type of fastening
- Bottom perforation
- Usable cross section
- 9005 mm²
- With cover
- Yes
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177952720
- SAP 1200493025
- Code 82691156
Product Documentation
Document preview: Rittal 5302122 — Data Sheet (OEM)
