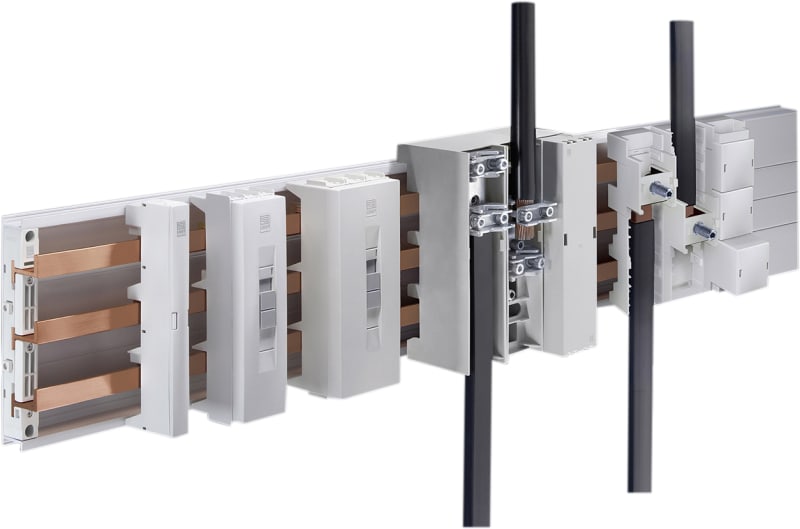

Connection Adapter 800A, (9342310)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342310 Manufacturer description: SV Connection adaptor, 800 A, 690 V, 3-pole, cable outet top/ bottom, round conductor connection 95-300 mm², clamping area; WH: 33x21/26 mm. For connection round conductors or lam. copper busbars. For rails m. 60 mm senter-for-senter spacer.
Technical Specifications
- Manufacturer part number (MPN)
- 9342310
- EAN / GTIN
- 4028177525672
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Model designation
- SV 9342.310
- Product type
- Connection Adapters
- Material
- Cover: ABS; Punched section: Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 690 V, 3~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7; 65 kA - 600 V, fuse class L max. 800 A, JDDZ/7
- Cable outlet
- Top/bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 150 mm; Height: 210 mm
- Suitable for busbars
- Height: 5, 10 mm
- Rated operating voltage (L1 + L2)
- 1000 V (DC)
- Rated operating voltage (L1 + L3)
- 1500 V (DC)
- For busbar thickness
- 185 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 1.74 kg
- Gross weight
- 1.772 kg
- Copper weight (kg per piece)
- 0.207
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL
- Mounting rail armament
- None
- Rated current In
- 800 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 150 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177525672
- SAP 1000116822
- Code 8614919
Product Documentation
More from Rittal
Rittal

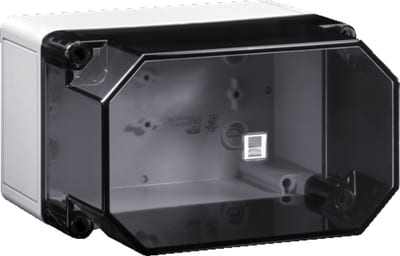

PK BOX KL.Cover 182X180X165
9519100
Rittal

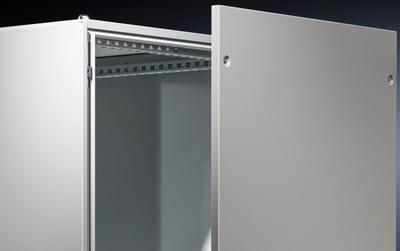

Sidewall VX 1400X500 2 pcs
8145245
Rittal

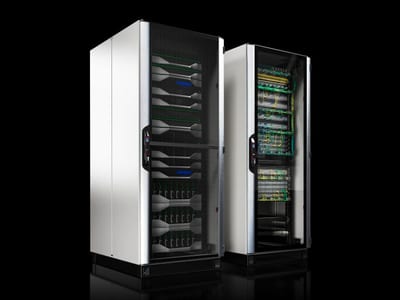

VX IT dyn 800X2000X1000
5309826
Rittal

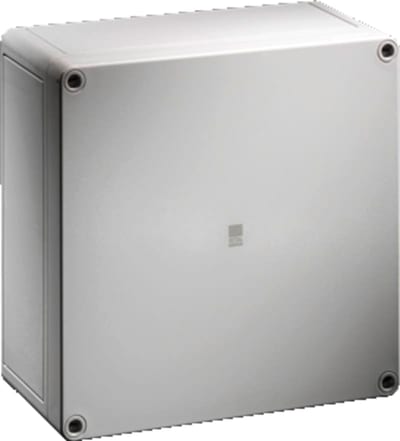

PK BOX GR.Cover 254X180X90
9520000
Rittal
refrigeration unit Blue e+ Outdoor 1500 W
3185330
Rittal

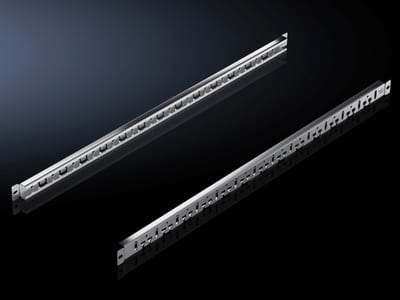

VX Kombi rails for 600 mm
