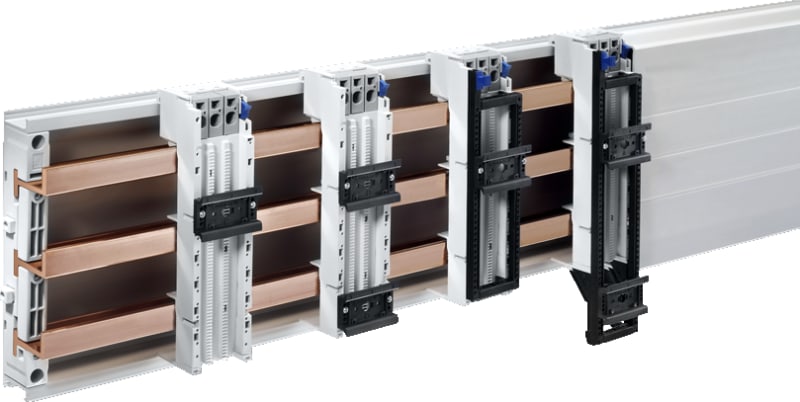

Device Adapter OM 32A,1,5-6mm² (9340530)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9340530 Manufacturer description: SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support frame, support rail TS 45C. OM-adapter 32 A with spring terminal, with 1 DIN rail and detachable frame, width 45 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9340530
- EAN / GTIN
- 4028177502628
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Model designation
- SV 9340.530
- Product type
- OM adapter
- Version
- with tension spring clamp
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- Rated operating voltage
- 690 V, 3~
- For bar systems with center-to- center spacing
- 60 mm
- Support rail type
- Support frame, 1 x TS 45C
- Number of poles
- 3-pole
- Dimensions
- Width: 45 mm; Height: 208 mm
- Connection of round conductors
- 1.5 ‐ 6 mm²
- Support rails Qty/height
- 1 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Support frame (W x H)
- 45 mm x 170 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.259 kg
- Gross weight
- 0.28 kg
- Copper weight (kg per piece)
- 0.027
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS; DNV; Lloyds Register
- Rated current
- 32 A
- Mounting rail armament
- None
- Rated current In
- 32 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 45 mm
- Rail width
- 45 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177502628
- SAP 1000116756
- Code 81082427
Product Documentation
More from Rittal
Rittal

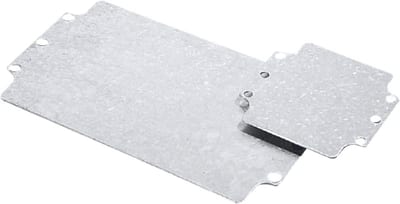

Mounting Plates FOR GA9112210
9112700
Rittal

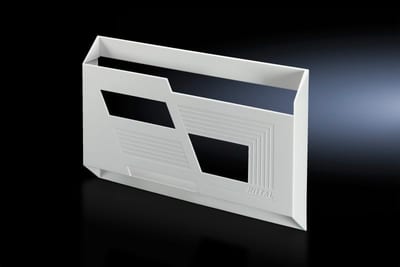

Drawing pocket DIN, A5
