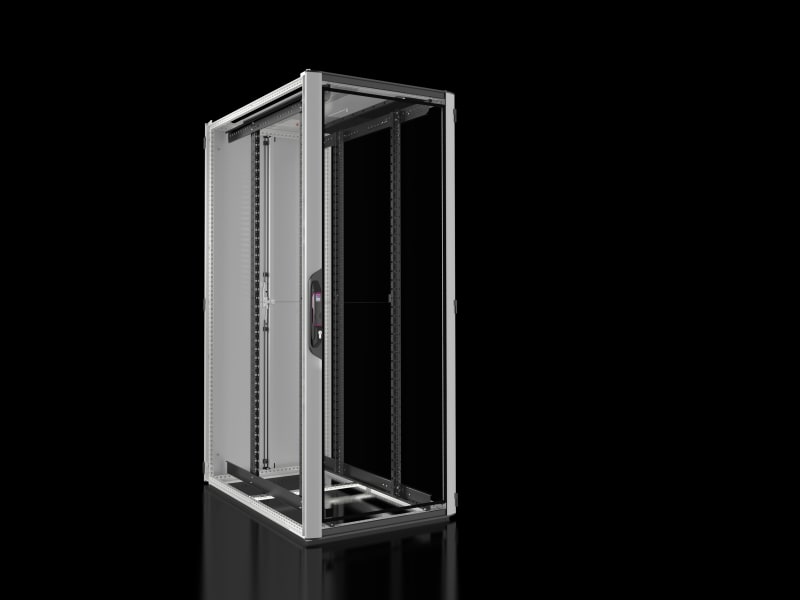

VX IT std 800X2000X1200

Rittal 5311126 Manufacturer description: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2000 x 1200 mm, 42 U. VX IT, solid, 19 "standard mounting angle, RAL7035, WHD 800x2000x1200mm, 42U.

Manufacturer part number (MPN)

5311126

EAN / GTIN

4028177945227

Sales unit

pcs

Model designation

VX 5311.126

Product type

VX IT network/server enclosure

Material

Carbon steel; Aluminum; Viewing door: Single-pane safety glass

3 mm; Front door

aluminum

1.25 mm; Back door

carbon steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Interior: Spray-finished; Rear door and roof: dipcoat-primed, powder-coated; Front door: Aluminum, anodized/spray-finished

General color

RAL 7035

Color

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver colored and horizontal sections

RAL 9005; Interior installation

RAL 9005; Handle and hinges: RAL 9005

Supply includes

VX cabinet frame with doors and roof plate; Glazed aluminum door, front

180° hinges; Lock front and rear

Comfort handle for semi-cylinders and security lock 3524 E; Profile rails, 482.6 mm (19"); Spacers, height 50 mm, for raising the cover plate above the fan breakout in the roof panel, for passive ventilation (enclosed) Not required for variants without cutout.; 12 x 19” fasteners 1 U, contacting (supplied); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet; Roof plate, multi-piece, with side depth-adjustable cable entry on both sides, prepared for fan mounting plate; Carob steel door rear, closed, vertically divided, 180° hinges

Dimensions

Width: 800 mm; Height: 2,000 mm; Depth: 1,200 mm

Height units

42 U

Distance between levels as delivered

720 mm

Version

Standard

Roof version

multi-piece, with side depth-adjustable cable entry on both sides, prepared for fan mounting plate

Design of rear door

Carbon steel door rear, closed, vertically divided, 180° hinges

Design for front door

Glazed aluminum door, solid, one-piece, 180° hinges

Versions of profile rails

19" standard profile rails in VX IT

Floor version

open

Design of position of profile rails

19” level, front and rear

Load capacity

15,000 N

IK code

IK08

Base material

Carbon steel

Packaging unit

1 pc(s).

Net weight

109 kg

Gross weight

116.4 kg

PCF/VE (cradle-to-gate)

285.8 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ECLASS 8.0

27180207

Certificates

Negative Certificate; Surface finish

Approvals

UL + C-UL (listed)

Mounting level

Front and rear

Type of profile rail

L-shape

Number of doors

2

Type of ventilation

Passive

Width

800 mm

Height

2000 mm

Depth

1200 mm

Number of height units

42

Max. load capacity

1500 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

Colour

Grey

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

9403.20

• EAN 4028177945227
• SAP 1200493136
• Code 82691169
