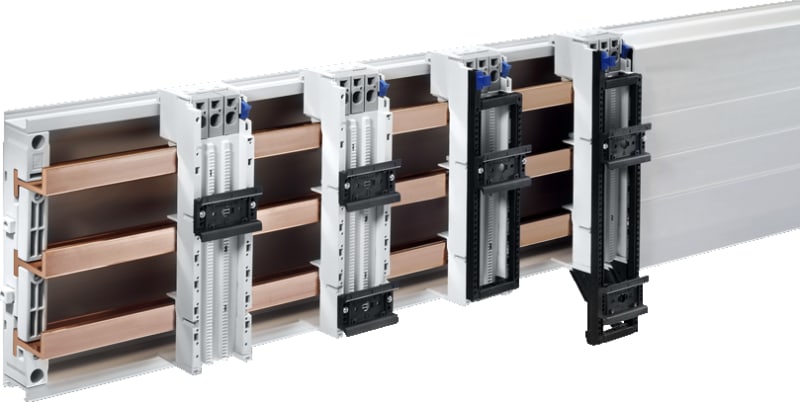

Device Adapter OM 32A,1,5-6mm² (9340510)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9340510 Manufacturer description: SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support rail TS 45C. OM-adapter 32 A with spring terminal, with 1 DIN rail, width 45 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9340510
- EAN / GTIN
- 4028177502611
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Model designation
- SV 9340.510
- Product type
- OM adapter
- Version
- with tension spring clamp
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- Rated operating voltage
- 690 V, 3~
- For bar systems with center-to- center spacing
- 60 mm
- Support rail type
- Without support frame, 1 x TS 45C
- Number of poles
- 3-pole
- Dimensions
- Width: 45 mm; Height: 208 mm
- Connection of round conductors
- 1.5 ‐ 6 mm²
- Support rails Qty/height
- 1 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.231 kg
- Gross weight
- 0.24 kg
- Copper weight (kg per piece)
- 0.027
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS; DNV; Lloyds Register
- Rated current
- 32 A
- Mounting rail armament
- None
- Rated current In
- 32 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 45 mm
- Rail width
- 45 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177502611
- SAP 1000116755
- Code 8614839
Product Documentation
More from Rittal
Rittal
Rittal VX IT Network/Server Rack 800x2000+100x800 mm 40U
5307157
Rittal
Rittal CS TopTec Outdoor Enclosure 800x1200x800 mm
9828500
Rittal
Mounting Plates FOR GA9105210
9105700
Rittal
VX IT std 800X2000X800 vent
5307114
Rittal
Segma Channel 60X60 (PW21161)
Rittal
SK Heating element 400 W,230V
3105190
Rittal
Mounting Plates FOR GA9110210
9110700
Rittal

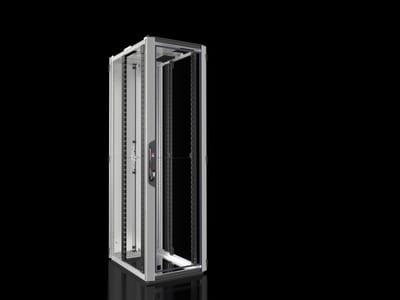

VX IT std 600X2000X800
