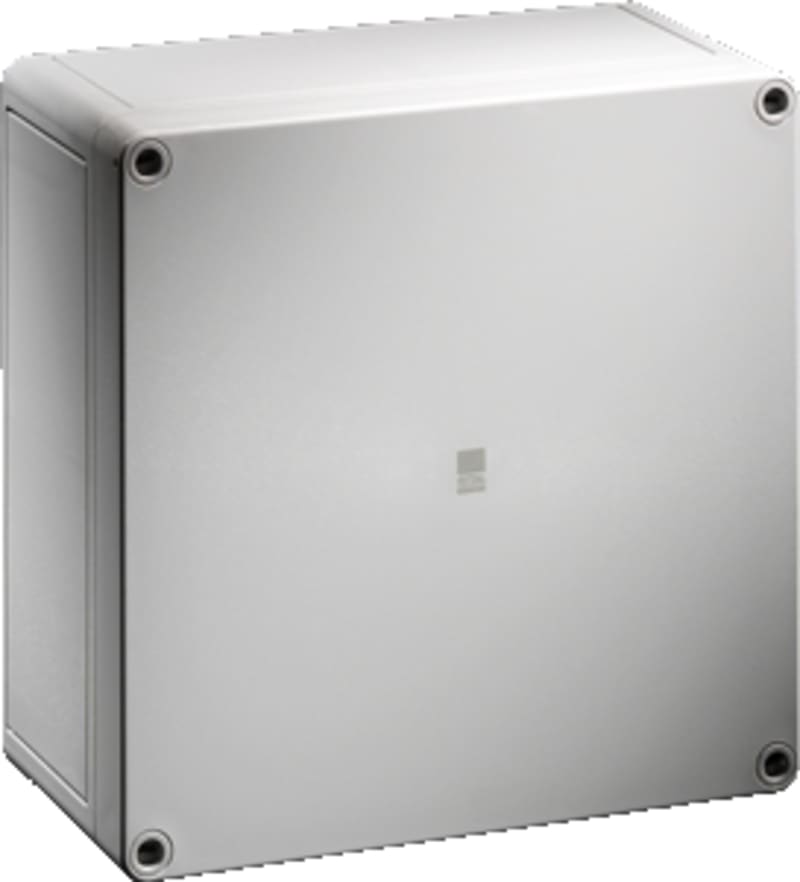

PK BOX GR.Cover 360X254X111
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9523000 Manufacturer description: PK Polycarbonate enclosure, WHD: 360x254x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover. Rittal PK junction box, fibreglass-reinforced polycarbonate, RAL7035.
Technical Specifications
- Manufacturer part number (MPN)
- 9523000
- EAN / GTIN
- 4028177139855
- Sales unit
- pcs
- Model designation
- PK 9523.000
- Product type
- PK Polycarbonate Housings
- Version
- PK housing with closed cover
- Material
- Housing: Fiber-glass reinforced polycarbonate; Cover gray: Fiberglass-reinforced polycarbonate, all-round foamed; PU seal; Cover screws: Polyamide; Insulating bungs: Polythene
- Color
- RAL 7035
- Supply includes
- Housing with cover; Cover screws; Insulating bungs for wall mounting screws
- Protection category NEMA
- NEMA 4X
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Dimensions
- Width: 360 mm; Height: 254 mm; Depth: 111 mm
- Operating temperature range
- -35 °C...80 °C; -31 °F...176 °F
- Base material
- Polycarbonate
- Packaging unit
- 1 pc(s).
- Net weight
- 1.421 kg
- Gross weight
- 1.621 kg
- Customs tariff number
- 84879090
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- C-UL; DNV; UL
- Colour
- Grey
- Width
- 360 mm
- Height
- 254 mm
- Depth
- 111 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 4028177139855
- SAP 1000067055
- Code 8917200
Product Documentation
More from Rittal
Rittal
Skyvemutter M6 F MONT-RAIL20
4179000
Rittal
Device Adapter OM 32A,1,5-6mm² (9340510)
Rittal

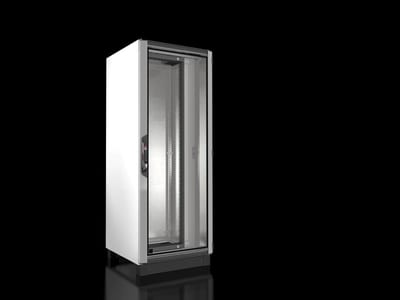

Rittal VX IT Network/Server Rack 800x2000+100x800 mm 40U
5307157
Rittal

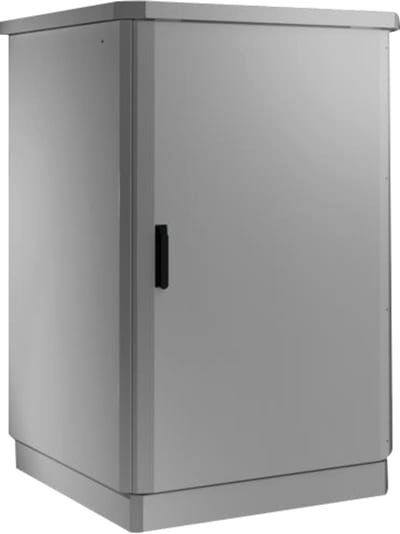

Rittal CS TopTec Outdoor Enclosure 800x1200x800 mm
9828500
Rittal

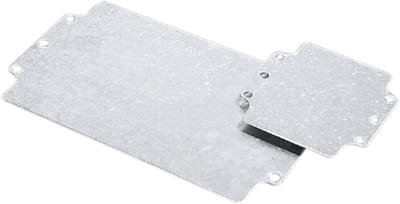

Mounting Plates FOR GA9105210
9105700
Rittal

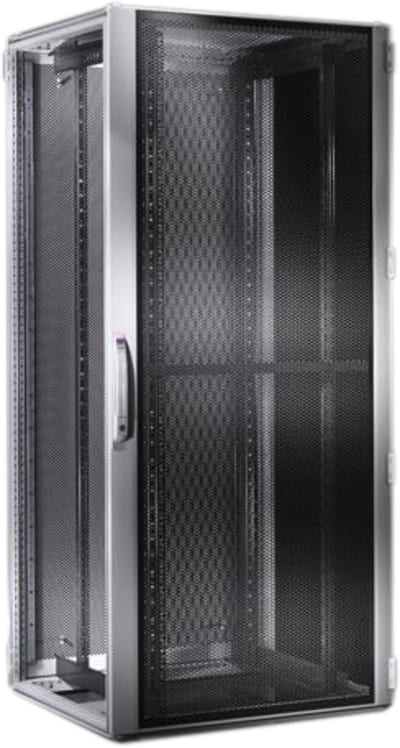

VX IT std 800X2000X800 vent
5307114
Rittal
Segma Channel 60X60 (PW21161)
Rittal

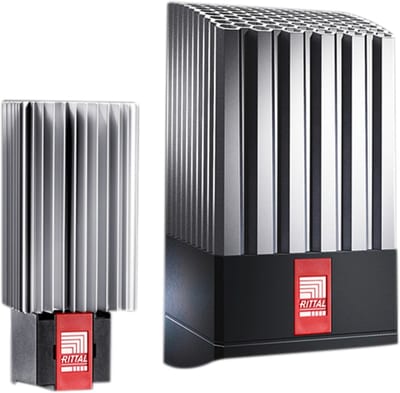

SK Heating element 400 W,230V
