Rittal
Lam. CU-rail 6X9X0,8mm
Part number3565005EAN / GTIN4028177666719HS code7407.10
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

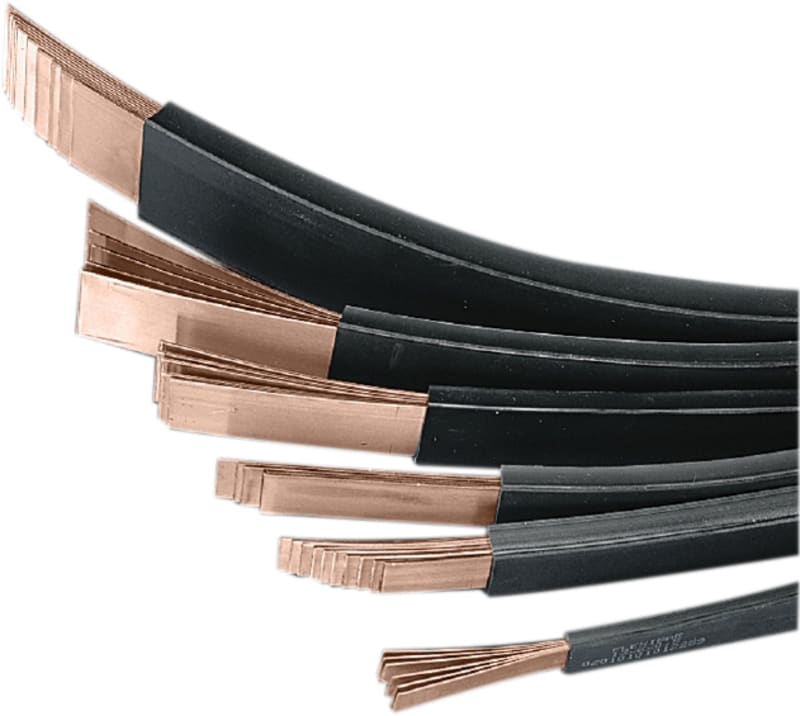

Rittal 3565005 Laminated copper busbar 6x9x0,8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 3565005
- EAN / GTIN
- 4028177666719
- Sales unit
- pcs
- Model designation
- SV 3565.005
- Product type
- Laminated Copper Bar
- Material
- Cu lamina: High-purity electrolyte copper; Insulation: Highly resistant vinyl blend, expansion 370%, temperature: -30°C ... +105°C, fire protection according to UL-94 V0, dielectric strength: 20 kV/mm
- Length
- 2,000 mm
- Laminated flat copper version
- Number of lamina: 6; Lamina width: 9 mm; Lamina thickness: 0.8 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.988 kg
- Gross weight
- 1.188 kg
- Copper weight (kg per piece)
- 0.77
- Customs tariff number
- 85446010
- ETIM 9
- EC001522
- ETIM 8
- EC001522
- ECLASS 8.0
- 27370303
- Approvals
- UR + C-UR (recognized)
- Width
- 9 mm
- Thickness
- 4.8 mm
- Laminated
- Yes
- Lamella thickness
- 0.8 mm
- Number of lamellas
- 6
- Rated operation current
- 240 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7407.10
Cross References
- EAN 4028177666719
- SAP 1000508079
- Code 8765122
Product Documentation
Document preview: Rittal 3565005 — Data Sheet (OEM)
