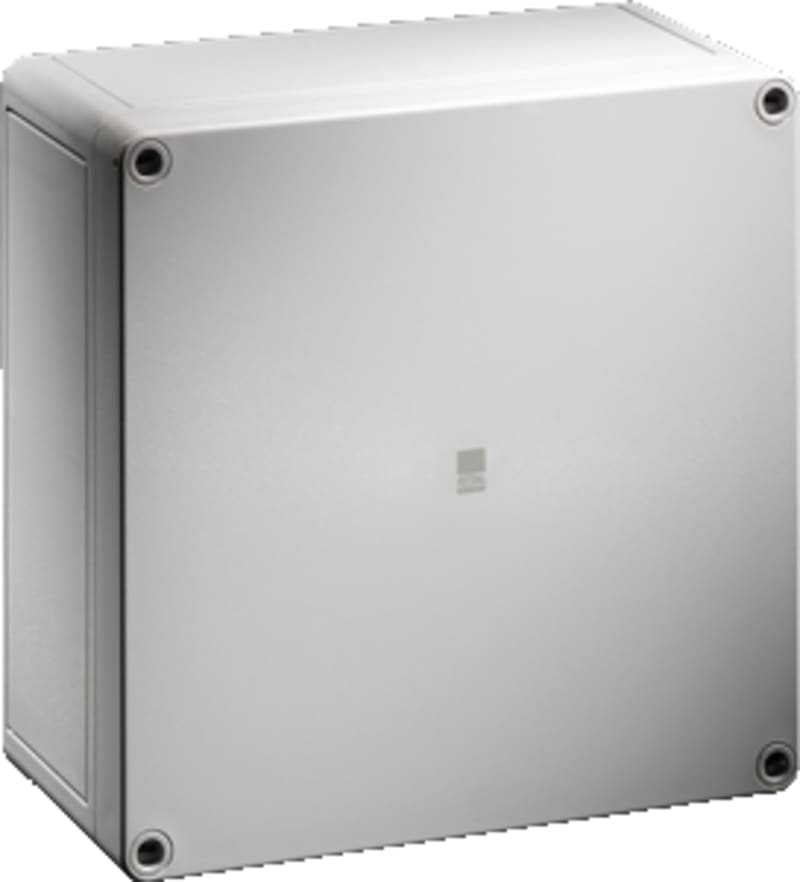

PK BOX GR.Cover 182X180X90
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9517000 Manufacturer description: PK Polycarbonate enclosure, WHD: 182x180x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover. Rittal PK junction box, fibreglass-reinforced polycarbonate, RAL7035.
Technical Specifications
- Manufacturer part number (MPN)
- 9517000
- EAN / GTIN
- 4028177139619
- Sales unit
- pcs
- Model designation
- PK 9517.000
- Product type
- PK Polycarbonate Housings
- Version
- PK housing with closed cover
- Material
- Housing: Fiber-glass reinforced polycarbonate; Cover gray: Fiberglass-reinforced polycarbonate, all-round foamed; PU seal; Cover screws: Polyamide; Insulating bungs: Polythene
- Color
- RAL 7035
- Supply includes
- Housing with cover; Cover screws; Insulating bungs for wall mounting screws
- Protection category NEMA
- NEMA 4X
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Dimensions
- Width: 182 mm; Height: 180 mm; Depth: 90 mm
- Operating temperature range
- -35 °C...80 °C; -31 °F...176 °F
- Base material
- Polycarbonate
- Packaging unit
- 1 pc(s).
- Net weight
- 0.542 kg
- Gross weight
- 0.64 kg
- Customs tariff number
- 84879090
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- C-UL; DNV; UL
- Colour
- Grey
- Width
- 182 mm
- Height
- 180 mm
- Depth
- 90 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 4028177139619
- SAP 1000015211
- Code 8122100
Product Documentation
