Rittal

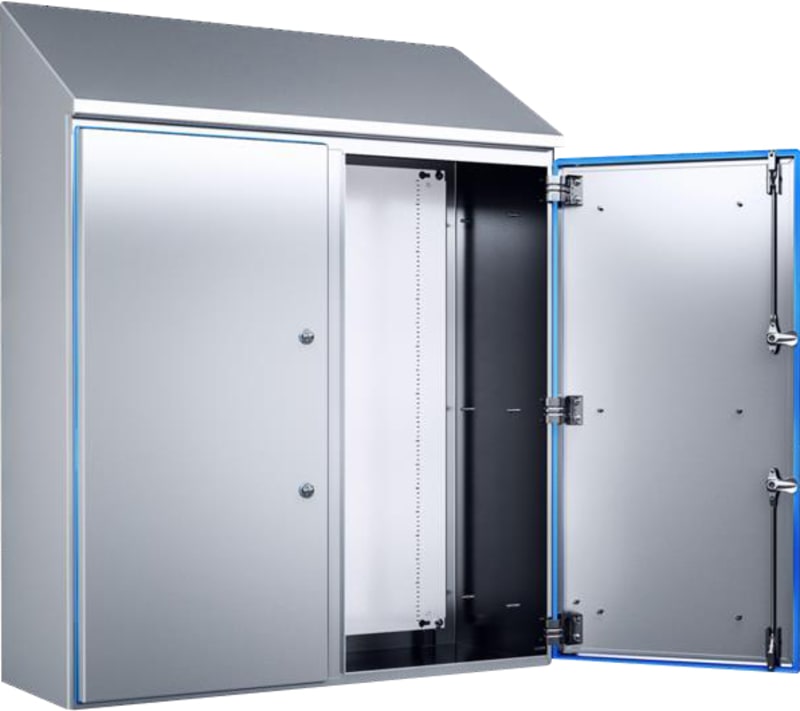

Compact enclosure HD 1010X1050X400
Part number1318600EAN / GTIN4028177918535HS code9403.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1318600 Manufacturer description: HD compact enclosure, WHD: 1010x1050(H1)x1280(H2)x400 mm, stainless steel, 1.4301, with mounting plate, with hinged door and silicone seal. Compact enclosure, BHD: 1010x1050(H1)x1277(H2)x400 mm, Stainless steel 1.4301, with mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- 1318600
- EAN / GTIN
- 4028177918535
- Sales unit
- pcs
- Model designation
- HD 1318.600
- Product type
- Two-door HD Enclosure
- Version
- Hygienic Design Enclosures
- Material
- Enclosure and doors: stainless steel 1.4301 (AISI 304); Mounting plate: Carbon steel; HD lock inserts: Stainless steel 1.4404 (AISI 316L); Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
- Surface finish
- Housing and door: Brushed, grain 400, peak-to-valley height; < 0.8 µm; Mounting panel: Zinc-plated; Seal: Blue, dyed (RAL 5010)
- Supply includes
- Housing of all-round solid construction; Doors with fitted seal; Mounting panel
- Dimensions
- Width: 1,010 mm; Height, front: 1,050 mm; Height rear: 1,280 mm; Depth: 400 mm
- Dimensions of mounting plate (W x H)
- 945 mm x 975 mm
- Door opening angle
- 125°
- IK code
- IK08
- Base material
- Stainless steel 1.4301 (AISI 304)
- Protection category IP to IEC 60 529
- IP 66; IP X9
- Protection category NEMA
- NEMA 1; NEMA 3; NEMA 3X; NEMA 4; NEMA 4X; NEMA 12; NEMA 13
- Type rating according to UL 50E
- Type 1; Type 3; Type 3X; Type 4; Type 4X; Type 12; Type 13
- Packaging unit
- 1 pc(s).
- Net weight
- 80 kg
- Gross weight
- 82 kg
- PCF/VE (cradle-to-gate)
- 250.66
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- UL + C-UL (listed)
- Colour
- Stainless steel
- Width
- 1010 mm
- Height
- 1277 mm
- Depth
- 400 mm
- RAL-number
- 7001
- With mounting plate
- Yes
- Number of doors
- 2
- Number of locks
- 4
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK08
- Suitable for outdoor set-up
- Yes
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- Yes
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Degree of protection (NEMA)
- 4X
- Max. permitted load of the enclosure according to IEC 62208
- 3000 N
- Max. permitted load of the door(s) according to IEC 62208
- 250 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177918535
- SAP 1200596626
- Code 82971997
Product Documentation
Document preview: Rittal 1318600 — Data Sheet (OEM)
