Rittal
App. adapter OM 65A, AWG 6 (9340410)
Part number9340410EAN / GTIN4028177502536HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

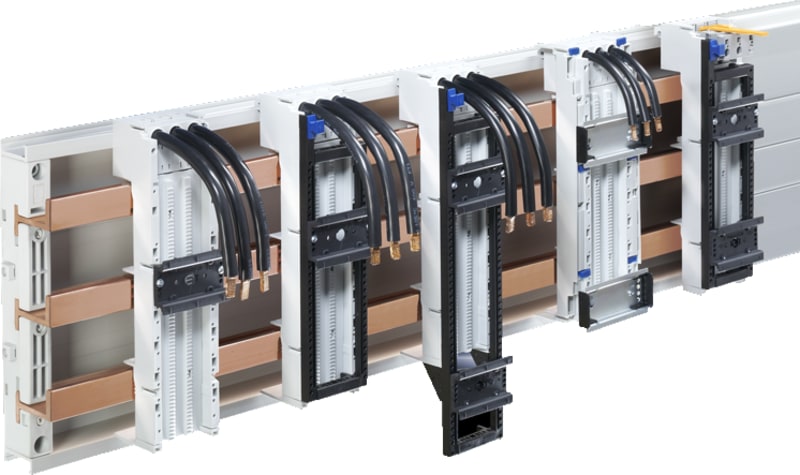

Rittal 9340410 Manufacturer description: SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH:; 55x208 mm, support rail TS 55E. OM-adapter 65 A with connection wires.
Technical Specifications
- Manufacturer part number (MPN)
- 9340410
- EAN / GTIN
- 4028177502536
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Model designation
- SV 9340.410
- Product type
- OM adapter
- Version
- With connection cable
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- Connection cables (AWG)
- AWG 6
- Rated operating voltage
- 690 V, 3~
- For bar systems with center-to- center spacing
- 60 mm
- Length of connection cable
- 130 mm
- Support rail type
- Without support frame, 1 x TS 55E
- Number of poles
- 3-pole
- Dimensions
- Width: 55 mm; Height: 208 mm
- Support rails Qty/height
- 1 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.317 kg
- Gross weight
- 0.36 kg
- Copper weight (kg per piece)
- 0.116
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Mounting rail armament
- None
- Rated current In
- 65 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 55 mm
- Rail width
- 55 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177502536
- SAP 1000116751
- Code 81025284
Product Documentation
Document preview: Rittal 9340410 — Data Sheet (OEM)
More from Rittal
Rittal

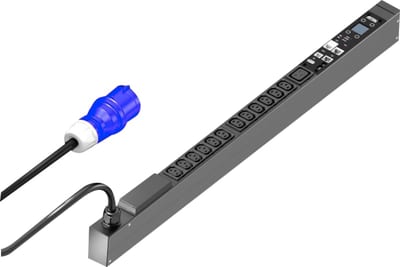

PDU man. 16A/1P 12XC13+1XC19
7979410
Rittal

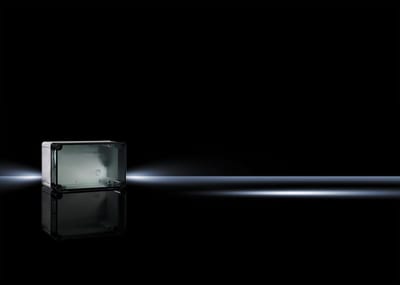

PK Box gr.cover 94X65X57
9502000
Rittal
Connection Adapter 250A
9342250
Rittal

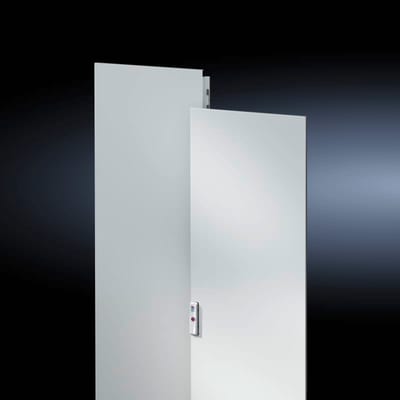

Rittal 8618120 VX Double Door for 800 x 2000 mm Enclosure, RAL 7035
Rittal

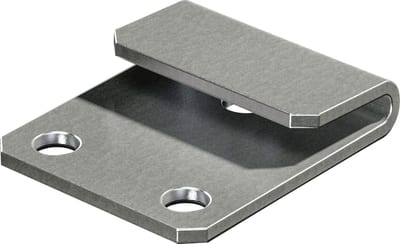

Bracket mounting plates for VX C
