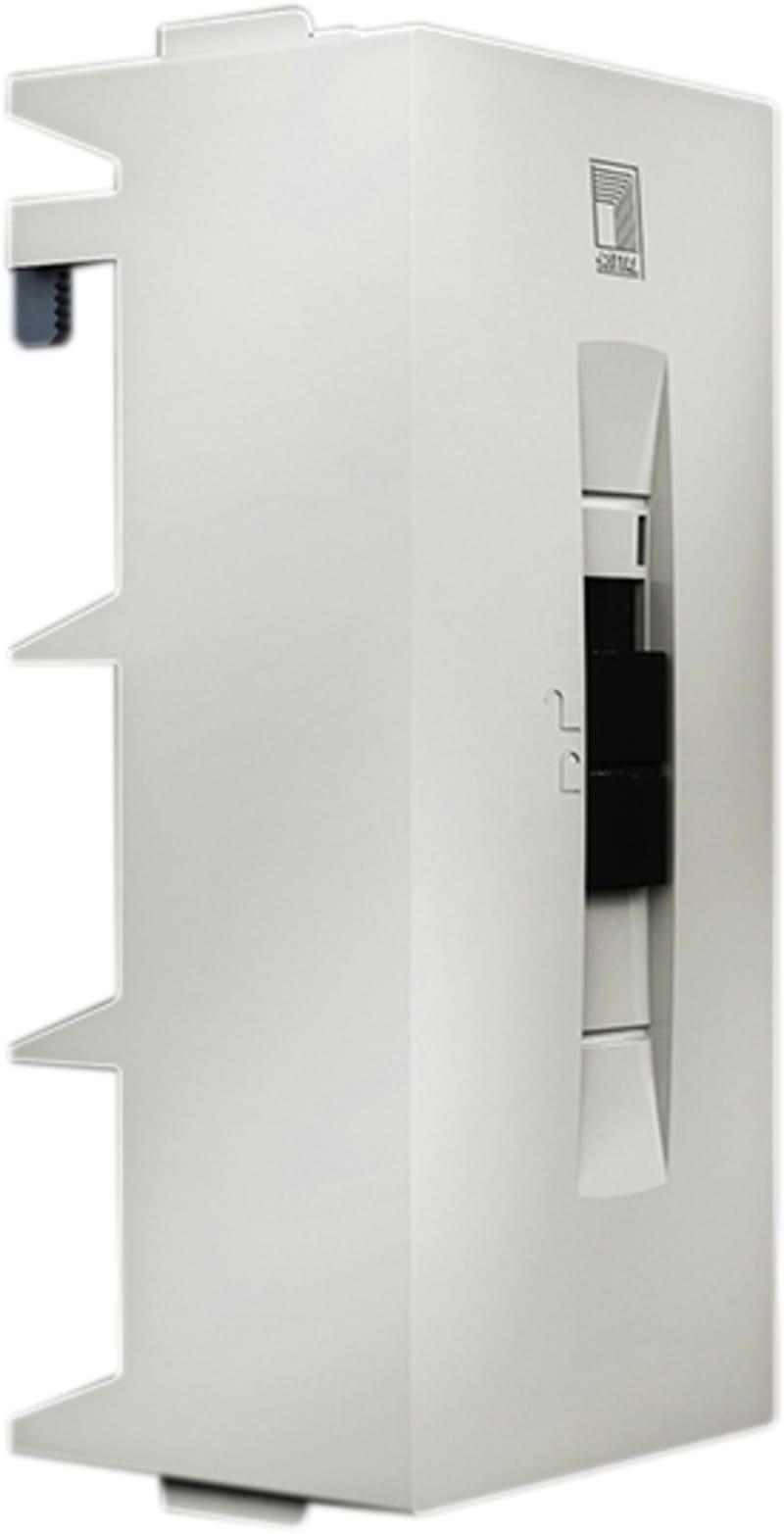

Connection Adapter 250A
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342250 Manufacturer description: SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet top/ bottom, round conductor connection 35-120 mm², clamping area; WH: 18,5x15,5 mm. For connection round conductors or lam. copper busbars. For rails m. 60 mm senter-for-senter spacer.
Technical Specifications
- Manufacturer part number (MPN)
- 9342250
- EAN / GTIN
- 4028177503632
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Model designation
- SV 9342.250
- Product type
- Connection Adapters
- Material
- Cover: ABS; Punched section: Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 690 V, 3~
- Cable outlet
- Top/bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 90 mm; Height: 210 mm
- Suitable for busbars
- Height: 5, 10 mm
- For busbar thickness
- 120 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.779 kg
- Gross weight
- 0.829 kg
- Copper weight (kg per piece)
- 0.166
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Rated current
- 250 A
- Mounting rail armament
- None
- Rated current In
- 250 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 90 mm
- Rail width
- 18.5 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177503632
- SAP 1000116794
- Code 81025390
