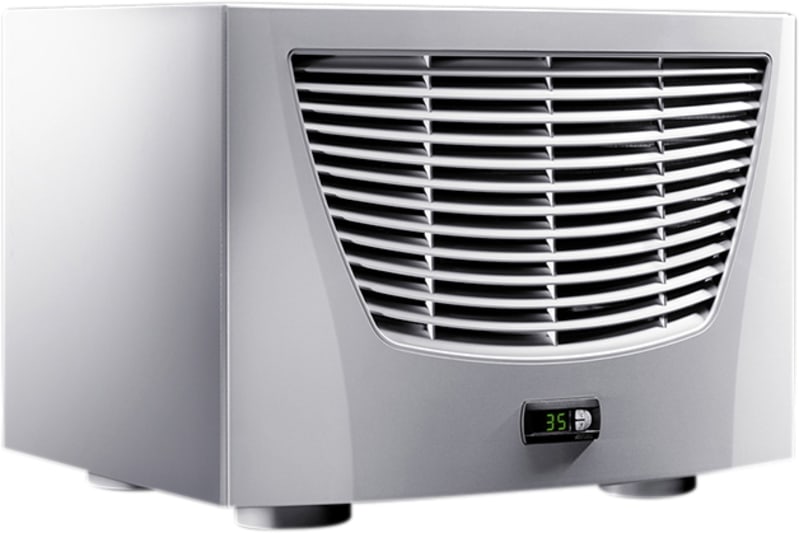

Rittal SK 3382.500 TopTherm Blue e Roof-Mounted Cooling Unit 500 W
Pricing
Request a quote
We reply within 24 hours
Product Description
Roof-mounted enclosure cooling unit from the TopTherm Blue e range with 500 W cooling output (2047 BTU/h). Housing is carbon steel finished in RAL 7035; the condenser carries a hydrophobic RiNano coating and condensate is evaporated internally. Supplied with an e-Comfort Controller, drilling template and fasteners for 230 V, 1-phase, 50/60 Hz operation. Refrigerant is R-513A with an IP 34 external / IP 54 internal protection rating.
Technical Specifications
- Manufacturer part number (MPN)
- 3382500
- EAN / GTIN
- 4028177323162
- Sales unit
- pcs
- Model designation
- SK 3382.500
- Product type
- TopTherm Blue e Roof-Mounted
- Version
- roof-mounted
- Material
- Carbon steel
- Color
- RAL 7035
- Supply includes
- Condenser with hydrophobic RiNano coating; Integral electric condensate evaporation; Wired ready for connection (plug-in terminal strip); Drilling template; Fasteners
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Air throughput (unimpeded air flow)
- External circuit: 800 m³/h; Internal circuit: 170 m³/h; External circuit: 470.9 cfm; Internal circuit: 100.1 cfm
- Energy efficiency ratio (EER) 50/60
- Refrigeration factor L35 L35 (EER) 50 Hz: 1.62
- Hz L35 L35
- Refrigeration factor L35 L35 (EER) 60 Hz: 1.91
- Dimensions
- Width: 597 mm; Height: 417 mm; Depth: 380 mm
- Protection category IP to EN 60 529
- External circuit, IP 34; Internal circuit, IP 54
- Refrigerant/cooling medium
- Refrigerant: R-513A; Quantity: 0.3 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 0.19 t; Refrigerant: R-513A; Quantity: 0.7 lb.
- Type of connection (electrical)
- Plug-in terminal strip
- Duty cycle
- 100 %
- Temperature control
- e-Comfort Controller (factory setting +35 °C)
- Operating temperature range
- 10 °C...55 °C; 50 °F...131 °F
- Storage temperature range
- -40 °C...70 °C; -40 °F...158 °F
- Setting range
- 20 °C...55 °C; 68 °F...131 °F
- Rated power Pel
- Rated power L35 L35/50 Hz: 0.37 kW; Rated power L35 L35/60 Hz: 0.34 kW; Rated power L35 L50/50 Hz: 0.41 kW; Rated power L35 L50/60 Hz: 0.39 kW
- Permissible operating pressure (p. max.)
- 28 bar; 406.1 PSI
- Packaging unit
- 1 pc(s).
- Net weight
- 36.1 kg
- Gross weight
- 38 kg
- Customs tariff number
- 84158200
- ETIM 9
- EC000855
- ETIM 8
- EC000855
- ECLASS 8.0
- 27180704
- Approvals
- UL + C-UL (listed); UL + C-UL - FTTA
- Width
- 597 mm
- Height
- 417 mm
- Depth
- 380 mm
- Voltage type
- AC
- With heating function
- No
- With temperature control
- Yes
- Function master/slave
- Yes
- Ambient temperature during operating
- 10–55 °C
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Total cooling capacity according to EN 14511 at 35/35 °C
- 500 W
- Speed-regulated
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177323162
- SAP 1000337159
- Code 8934489
Product Documentation
More from Rittal
Rittal
Heating element 800W with fan
2430894
Rittal
Rittal TS 8611.200 Push-Button and Security Lock Insert
8611200
Rittal
Heating element 10W without fan
3105310
Rittal
PK BOX KL.Cover 182X180X90
9517100
Rittal
Rittal SZ 4568.000 Lifting Eyebolts M12 for PS and ES Enclosures, Set of 4
4568000
Rittal
Junction box KX 150X150X120
1500000
Rittal
Rittal SK 3385.540 Blue e Roof-Mounted Cooling Unit 2000 W, 400 V
3385540
Rittal
Compact enclosure AX 300X380X210 Rf
1005000
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
