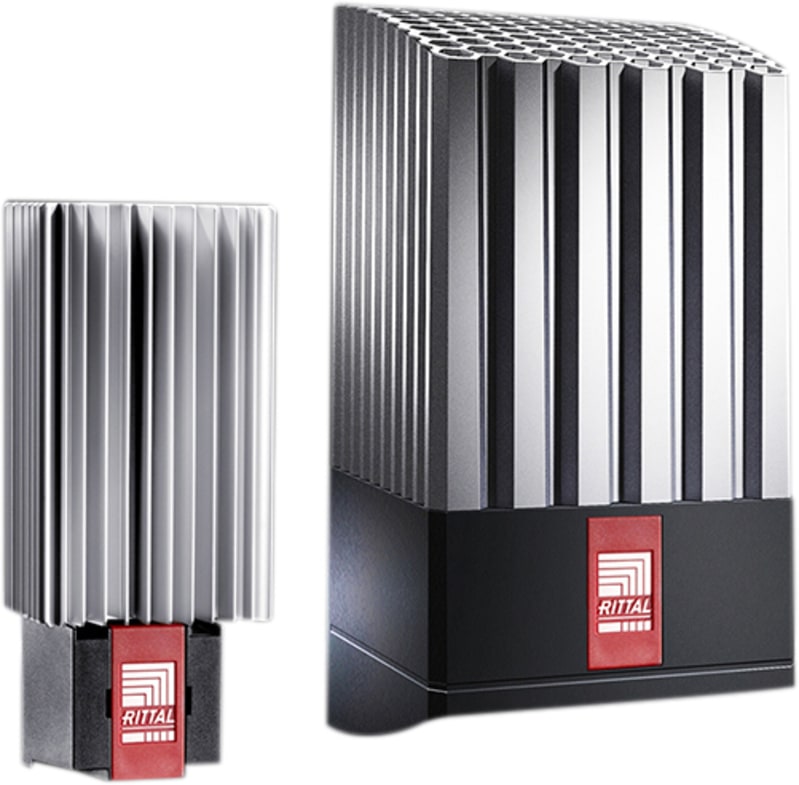

Heating element 10W without fan
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3105310 Manufacturer description: SK enclosure heater, without fan, 8-10 W, 110-240 V, 1~, 50/60 Hz, WHD: 45 x 120 x 46 mm. Heating element 10W without fan for enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- 3105310
- EAN / GTIN
- 4028177638617
- Sales unit
- pcs
- Model designation
- SK 3105.310
- Product type
- Enclosure Heater
- Material
- Aluminum, anodized
- Supply includes
- PTC heater; Quick-connection terminal; Fasteners
- Note on Model No.
- Operation at a temperature of -40 °C is possible. Upon request, you will receive a manufacturer's declaration.; Special voltages available on request. We reserve the right to make technical modifications.
- Continuous thermal output at
- 8 W ‐ 10 W
- Rated operating voltage
- 110 V - 240 V, 1~, 50 Hz/60 Hz
- Dimensions
- Width: 45 mm; Height: 120 mm; Depth: 46 mm
- Protection category IP to IEC 60 529
- IP 20
- Protection category
- II (total insulation)
- Operating temperature range
- -33 °C...65 °C; -27 °F...149 °F
- Packaging unit
- 1 pc(s).
- Net weight
- 0.202 kg
- Gross weight
- 0.219 kg
- Customs tariff number
- 85162999
- ETIM 9
- EC000737
- ETIM 8
- EC000737
- ECLASS 8.0
- 27180710
- Width
- 45 mm
- Height
- 120 mm
- Depth
- 46 mm
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Rated power
- 10 W
- Operating voltage AC 50 Hz
- 99–242 V
- Operating voltage AC 60 Hz
- 99–242 V
- Continuous heating power at 10 °C
- 8 W
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 4028177638617
- SAP 1000113479
- Code 81002661
Product Documentation
More from Rittal
Rittal
PK BOX KL.Cover 182X180X90
9517100
Rittal

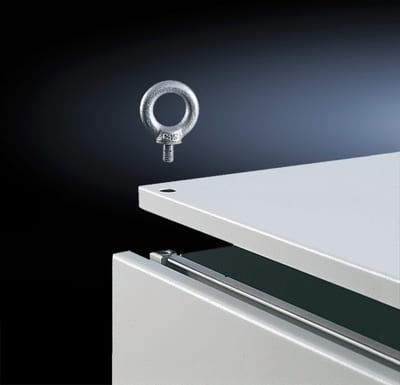

Rittal SZ 4568.000 Lifting Eyebolts M12 for PS and ES Enclosures, Set of 4
4568000
Rittal

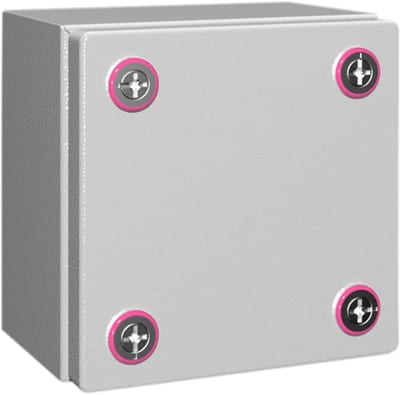

Junction box KX 150X150X120
1500000
Rittal

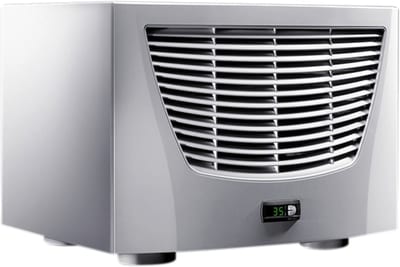

Rittal SK 3385.540 Blue e Roof-Mounted Cooling Unit 2000 W, 400 V
3385540
Rittal

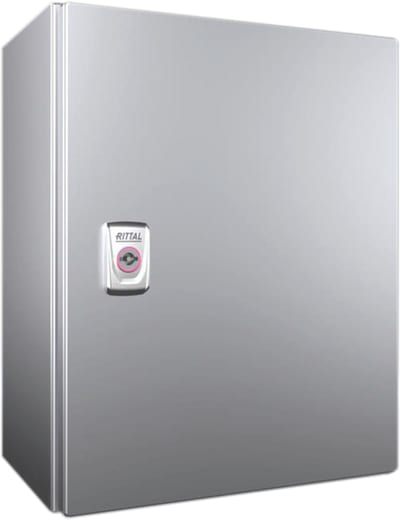

Compact enclosure AX 300X380X210 Rf
1005000
Rittal

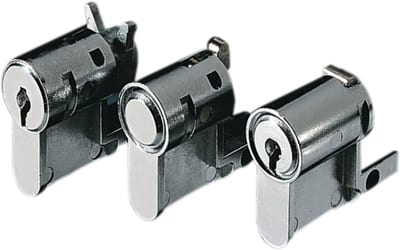

Rittal SZ 2467.000 Semi-Cylinder Lock Insert No. 3524 E
2467000
Rittal
PDU man. 16A/3P 18XC13+3XC19
7979435
Rittal

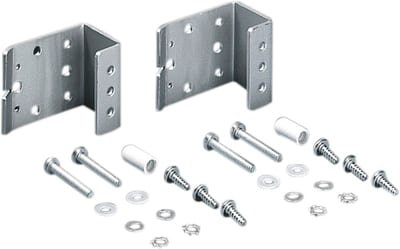

Universalangle AE (2373000)
