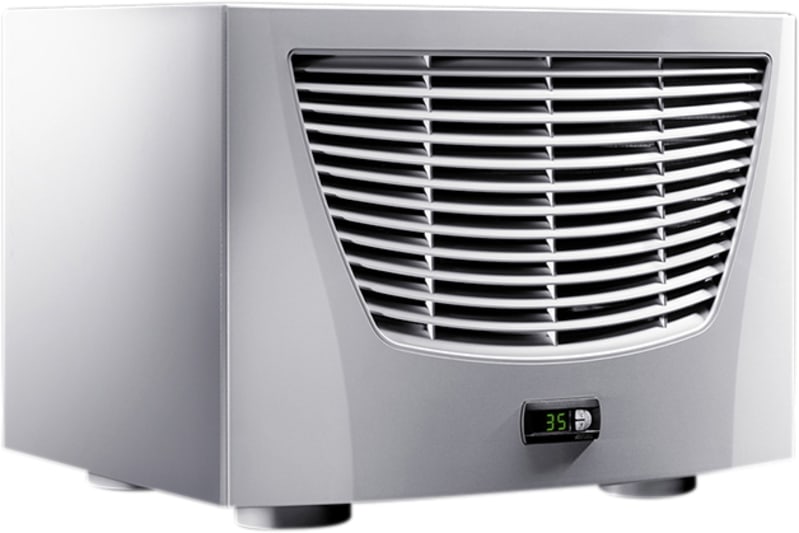

Rittal SK 3385.540 Blue e Roof-Mounted Cooling Unit 2000 W, 400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SK 3385.540 is a TopTherm Blue e roof-mounted cooling unit rated 2000 W (6824 BTU/h) at 400 V 2-phase 50/60 Hz for climate control of enclosures. The carbon steel housing measures 597 x 417 x 475 mm (WxHxD) and includes a hydrophobic RiNano-coated condenser, integral electric condensate evaporation and plug-in terminal strip wiring. Controlled by the e-Comfort Controller with a factory setpoint of +35 °C, operating range 10-55 °C, refrigerant R-513A (0.9 kg). Internal circuit IP54, external circuit IP34.
Technical Specifications
- Manufacturer part number (MPN)
- 3385540
- EAN / GTIN
- 4028177323285
- Sales unit
- pcs
- Model designation
- SK 3385.540
- Product type
- TopTherm Blue e Roof-Mounted
- Version
- roof-mounted
- Material
- Carbon steel
- Color
- RAL 7035
- Supply includes
- Condenser with hydrophobic RiNano coating; Integral electric condensate evaporation; Wired ready for connection (plug-in terminal strip); Drilling template; Fasteners
- Rated operating voltage
- 400 V, 2~, 50 Hz/60 Hz
- Air throughput (unimpeded air flow)
- External circuit: 1,760 m³/h; Internal circuit: 470 m³/h; External circuit: 1,035.9 cfm; Internal circuit: 276.6 cfm
- Energy efficiency ratio (EER) 50/60
- Refrigeration factor L35 L35 (EER) 50 Hz: 1.96
- Hz L35 L35
- Refrigeration factor L35 L35 (EER) 60 Hz: 1.69
- Dimensions
- Width: 597 mm; Height: 417 mm; Depth: 475 mm
- Protection category IP to EN 60 529
- External circuit, IP 34; Internal circuit, IP 54
- Refrigerant/cooling medium
- Refrigerant: R-513A; Quantity: 0.9 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 0.57 t; Refrigerant: R-513A; Quantity: 2 lb.
- Type of connection (electrical)
- Plug-in terminal strip
- Duty cycle
- 100 %
- Temperature control
- e-Comfort Controller (factory setting +35 °C)
- Operating temperature range
- 10 °C...55 °C; 50 °F...131 °F
- Operating temperature max @60
- 53 °C
- Hz
- 127 °F
- Storage temperature range
- -40 °C...70 °C; -40 °F...158 °F
- Setting range
- 20 °C...53 °C; 68 °F...127 °F
- Rated power Pel
- Rated power L35 L35/50 Hz: 1.02 kW; Rated power L35 L35/60 Hz: 1.27 kW; Rated power L35 L50/50 Hz: 1.15 kW; Rated power L35 L50/60 Hz: 1.29 kW
- Permissible operating pressure (p. max.)
- 28 bar; 406.1 PSI
- Packaging unit
- 1 pc(s).
- Net weight
- 58.9 kg
- Gross weight
- 62 kg
- Customs tariff number
- 84158200
- ETIM 9
- EC000855
- ETIM 8
- EC000855
- ECLASS 8.0
- 27180704
- Approvals
- UL + C-UL (listed); UL + C-UL - FTTA
- Width
- 597 mm
- Height
- 417 mm
- Depth
- 475 mm
- Voltage type
- AC
- With heating function
- No
- With temperature control
- Yes
- Function master/slave
- Yes
- Ambient temperature during operating
- 10–55 °C
- Operating voltage AC 50 Hz
- 360–440 V
- Operating voltage AC 60 Hz
- 360–440 V
- Total cooling capacity according to EN 14511 at 35/35 °C
- 2000 W
- Speed-regulated
- No
- Country of origin
- Italy
