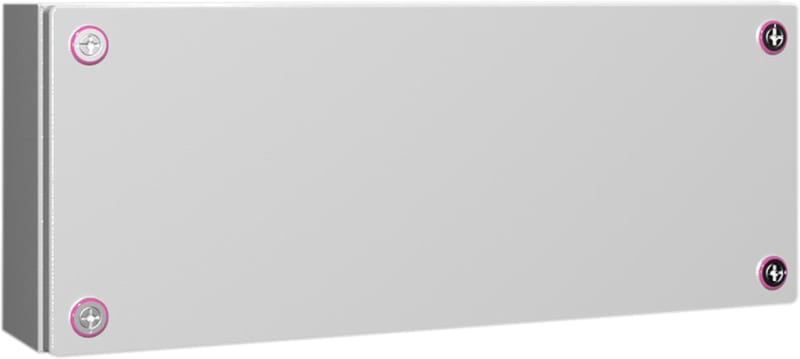

Junction box KX 500X200X120 (1533000)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1533000 Manufacturer description: KX Terminal box, WHD: 500x200x120 mm, sheet steel, without mounting plate, with cover, with gland plate. KX Junction box, BHD: 500x200x120 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1533000
- EAN / GTIN
- 4028177816398
- Sales unit
- pcs
- Model designation
- KX 1533.000
- Material
- Housing: Carbon steel; Cover: Carbon steel, all-round foamed-in PU seal
- Surface finish
- Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
- Color
- RAL 7035
- Supply includes
- Housing with cover; Mini-fasteners; Carbon steel flange plates with seals and assembly components
- Protection category NEMA
- NEMA 1; NEMA 12
- Protection category IP to EN 60 529
- IP 55
- Type rating according to UL 50E
- Type 1; Type 12
- IK code
- IK08
- Dimensions
- Width: 500 mm; Height: 200 mm; Depth: 120 mm
- Material thickness - cover
- 1.25 mm
- Material thickness - enclosure
- 1.25 mm
- Flange Plates
- :2+2
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 4.646 kg
- Gross weight
- 4.891 kg
- PCF/VE (cradle-to-gate)
- 35.62 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 84879059
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- Bureau Veritas; DNV; Lloyds Register; UL + C-UL (listed)
- Length
- 200 mm
- Width
- 500 mm
- Depth
- 120 mm
- Material plate thickness cabinet
- 1.25 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Type of inlet
- Gland nut
- Halogen free
- No
- Colour
- Grey
- Degree of protection (IP)
- IP55
- With cover
- No
- Cover attachment
- Snapped on
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 2500 V
- Circuit integrity
- None
- Impact strength
- IK08
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177816398
- SAP 1200365399
- Code 82404695
Product Documentation
