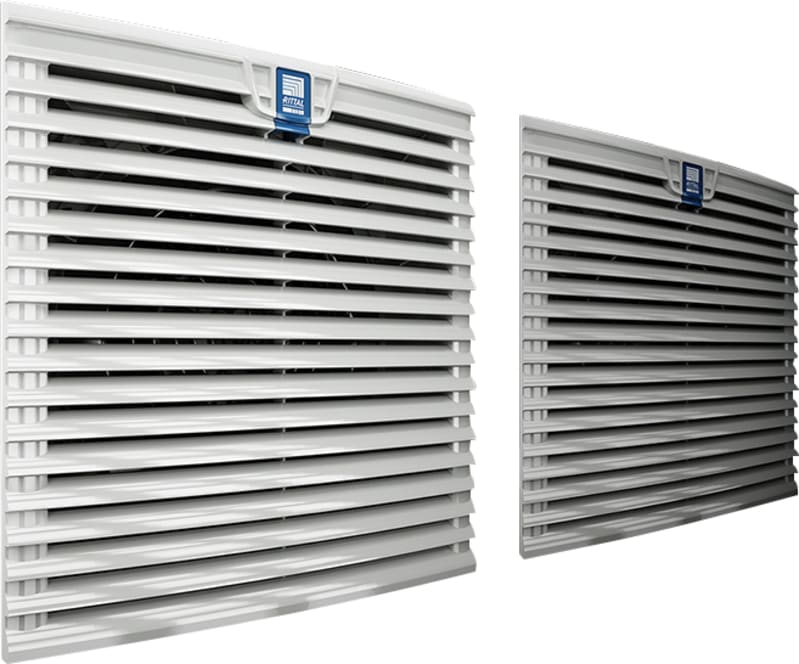

Filter Fan EMC 20M3/h 230V
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3237600 Manufacturer description: SK Fan-and-filter unit TopTherm, 11.8/14.7 cfm 230 V, 1~, 50/60 Hz, WHD: 116.5 x 116.5 x 16 mm, EMC. Filter Fan EMC 20m3/h 230V.
Technical Specifications
- Manufacturer part number (MPN)
- 3237600
- EAN / GTIN
- 4028177652415
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- SK 3237.600
- Product type
- TopTherm Filter Fan Units
- Version
- wall-mounted; EMC
- Product changes
- Since May 2024, the cover for the connection terminal is no longer part of the TopTherm filter fan. During testing, it was found not to be required by the standards and does not impair function or operational safety.
- Color
- RAL 7035
- Supply includes
- Complete unit ready to install, including chopped fiber filter mat
- Fan
- Axial, shaded pole motor
- Air throughput (unimpeded air flow)
- At 50 Hz: 20 m³/h; At 60 Hz: 25 m³/h; At 50 Hz: 11.8 cfm; At 60 Hz: 14.7 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 12 W; At 60 Hz: 10 W
- Dimensions
- Width: 116.5 mm; Height: 116.5 mm
- Installation dimensions
- Build depth: 16 mm; Installation depth: 43 mm
- Mounting cut-out
- Width of opening: 92 mm; Cut-out height: 92 mm
- Protection category IP to IEC 60 529
- IP 54 with fleece filter; IP 56 with fleece filter and hose-proof hood
- Protection category NEMA
- Type 12 with fleece filter; Type 3; Type 3R with fleece filter and hose-proof hood
- Operating temperature range
- -15 °C...55 °C; 5 °F...131 °F
- Storage temperature range
- -30 °C...70 °C; -22 °F...158 °F
- Noise pressure level
- At 50 Hz: 38 dB(A); At 60 Hz: 43 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.42 kg
- Gross weight
- 0.486 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- CSA; UL + C-UL - FTTA; UR + C-UR (recognized)
- Mounting method
- Snap mounting
- Colour
- Grey
- Width
- 1165 mm
- Height
- 1165 mm
- Depth
- 43 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- Yes
- Degree of protection (IP)
- IP54
- With filter
- Yes
- Rated power
- 11 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 20 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Operating voltage AC 50 Hz
- 230 V
- Operating voltage AC 60 Hz
- 230 V
- Operating voltage DC
- 230 V
- Country of origin
- China
