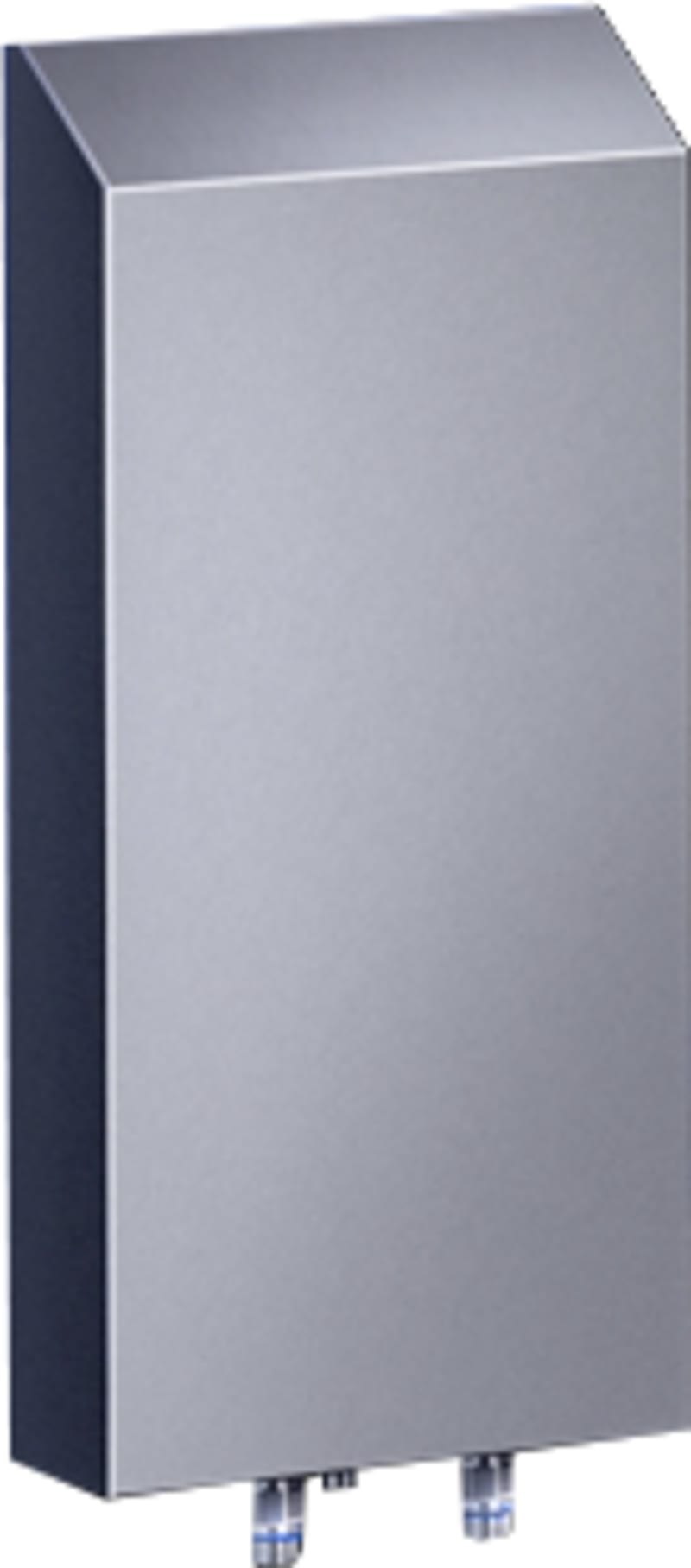

air/water heat exchanger HD 600W
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3214700 Manufacturer description: SK Air/water heat exchanger, wall-mounted, 2047 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 220 x 526 x; 100 mm. Air/water heat exchanger, wall mounting, HD, 0.65 kW, 230 V, 1~, 50/60 Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 3214700 EAN / GTIN: 4028177806399 Sales unit: pcs Model designation: SK 3214.700 Product type: Air-Water Heat Exchangers Version: Water-carrying parts copper/brass (Cu/CuZn) material: Housing: Stainless steel 1.4301 (AISI 304) Surface finish: Housing: Brushed, grain 400, peak-to-valley height < 0.8 µm Supply includes: Wired ready for connection; Drilling template; Sealing and assembly components Total cooling output: L 35 W 10 at 200 l/h: 0.6 kW; L 35 W 10 at 400 l/h: 0.65 kW; L 35 W 10 at 200 l/h: 2,047 BTU/h; L 35 W 10 at 400 l/h: 2,218 BTU/h Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz Rated power Pel: At 50 Hz: 33 W; At 60 Hz: 34 W Permissible operating pressure (p. max.): 1: 10 bar; 14.5: 145 PSI Duty cycle: 100 % Cooling medium: Water (see Internet for specifications) Water inlet temperature: 1 °C...30 °C; 34 °F...86 °F Water connections: G ⅜" external thread Temperature control: Thermostat-controlled solenoid valve Temperature monitoring: Internal thermostat, with change-over contact, switching load 16 A, setting range +20 °C ... +60 °C (factory setting +35 °C) Operating temperature range: 1 °C...70 °C; 34 °F...158 °F Dimensions: Width: 220 mm; Height: 526 mm; Depth: 100 mm Setting range: 20 °C...60 °C; 68 °F...140 °F Protection category IP to EN 60 529: IP 56/59 Protection category NEMA: NEMA 4X Packaging unit: 1 pc(s). Net weight: 6 kg Gross weight: 6.86 kg Customs tariff number: 84158300 ETIM 9: EC002515 ETIM 8: EC002515 ECLASS 8.0: 27180712 Approvals: CSA; UL + C-UL - FTTA; UR + C-UR (recognized) Add-on type: Wall surface mounted Voltage type: AC Nominal cooling performance L35W10 200l/h: 600 W Nominal cooling performance L35W10 400l/h: 650 W Country of origin: Italy
Standards & Compliance
- HS Code
- 8415.83
Cross References
- EAN 4028177806399
- SAP 1200027789
- Code 81650888
Product Documentation
More from Rittal
Rittal
Rittal SZ 2561.300 Plastic Gland Plate with Membranes AX Size 1
2561300
Rittal
E-box KX 200X400X120
1550000
Rittal
Compact enclosure AX 600X1000X250
1090000
Rittal
E-box KX 300X400X120
1556000
Rittal
CMC III RGB LED Alu Light Rail
7030950
Rittal
Plinth VX incl. front/rear panel 100X600
8660002
Rittal
E-box KX 200X500X120
1557000
Rittal
RILINE60 busbarh. pk 4
9340004
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3214700?
- 3214700 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 3214700.
- What is the HS code for 3214700?
- The customs tariff (HS) code for 3214700 is 8415.83.
- Who manufactures 3214700?
- 3214700 is a Rittal product in the Enclosures range.
- Is a datasheet available for 3214700?
- Yes — the 3214700 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3214700?
- The minimum order quantity is 1.
- Is 3214700 available?
- Yes — 3214700 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
