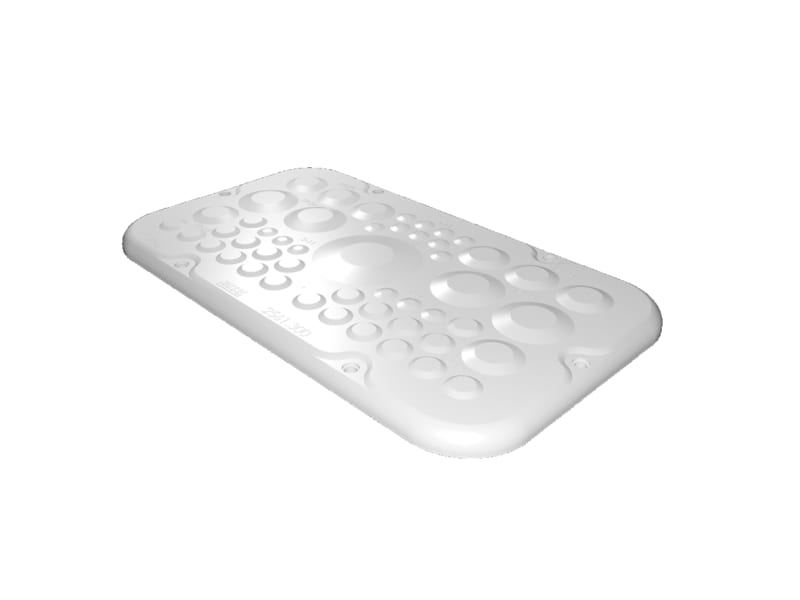

Rittal SZ 2561.300 Plastic Gland Plate with Membranes AX Size 1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2561300 is an SZ plastic gland plate with integrated membranes for AX enclosures, measuring 256 mm by 149 mm and rated for gland plate size 1. The UL 94-V0 plastic panel provides 15 cable entries of Ø 5–11 mm and, when correctly installed, delivers IP66 protection and UL Type 1/12. Colour matches RAL 7035. Supplied in packs of 45.
Technical Specifications
- Manufacturer part number (MPN)
- 2561300 EAN / GTIN: 4028177935693 Sales unit: pcs Package quantity: 45 pcs Model designation: SZ 2561.300 Product type: Plastic Cable Gland Plates material: Plastic to UL 94-V0 Color: Similar to RAL 7035 Dimensions: Width: 256 mm; Depth: 149 mm Gland plate: Size: 1 Protection category IP to EN 60 529: IP 66 if correctly installed Type rating according to UL 50E: Type 1; Type 12 Quantity of cable entries and Ø: 15 x 5-11 Packaging unit: 1 pc(s). Net weight: 0.36 kg Gross weight: 0.365 kg Customs tariff number: 39269097 ETIM 9: EC000211 ETIM 8: EC000211 ECLASS 8.0: 27142421 Approvals: UL + C-UL - FTTA Width: 256 mm Depth: 149 mm Surface protection: Untreated Pre-stamping: No Thread type: None Number of connector holes: 50 Country of origin: Finland
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177935693
- SAP 1200380126
- Code 82389208
Product Documentation
