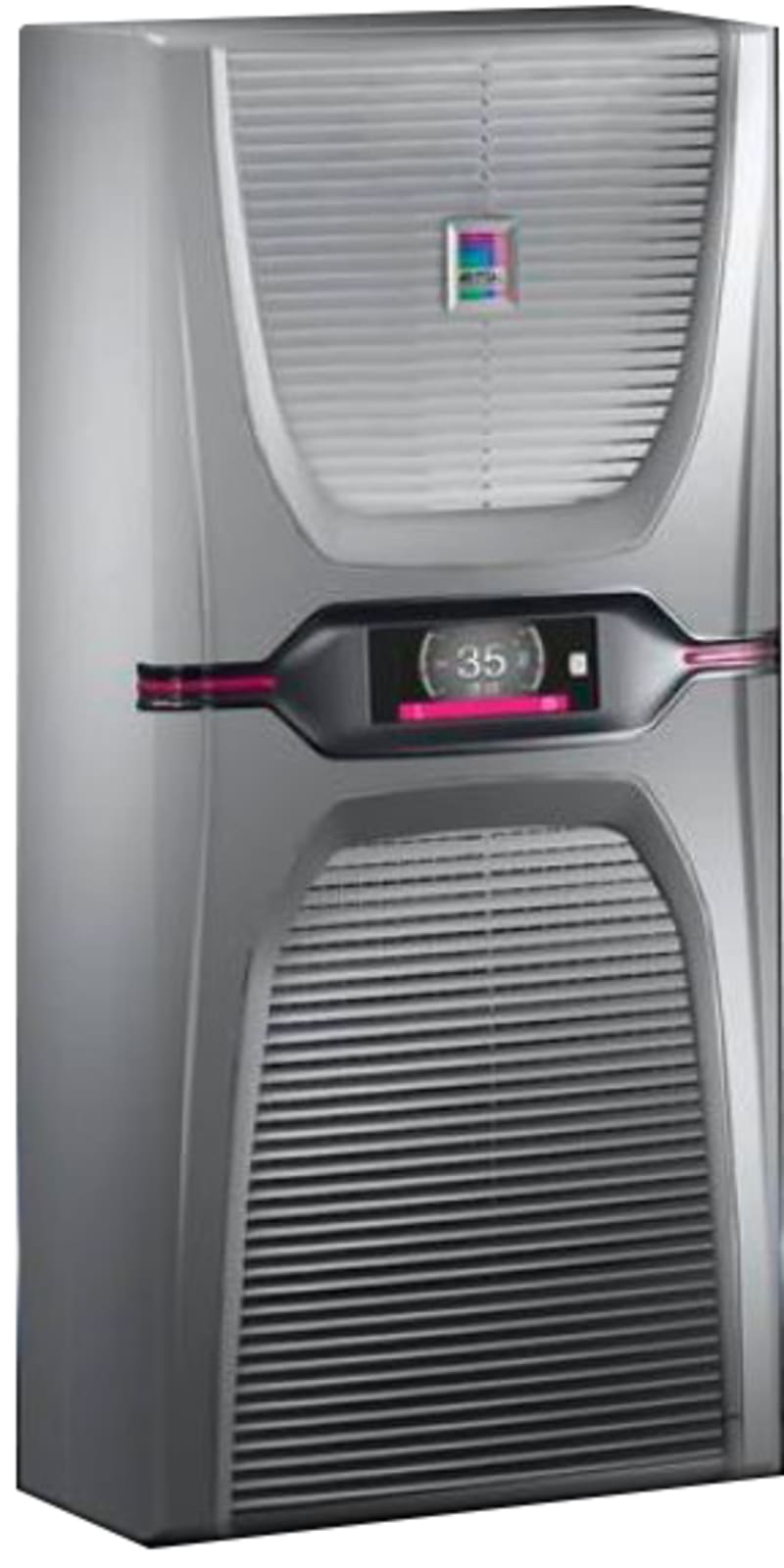

Rittal SK 3185.830 Blue e+ Wall-Mounted Cooling Unit 1600 W

Rittal SK 3185.830 is a Blue e+ wall-mounted enclosure cooling unit rated 1600 W (5459 BTU/h), accepting 110-240 V single-phase or 380-480 V three-phase supply at 50/60 Hz. The carbon steel housing measures 400 x 950 x 310 mm (WxHxD) and includes a hydrophobic RiNano-coated condenser, integral electric condensate evaporation, plug-in terminal strip and mounting hardware. SEER 5.5, EER 2.96 at L35/L35, IP55 internal circuit, UL Type 12/3R.

Manufacturer part number (MPN)

3185830 EAN / GTIN: 4028177708082 Sales unit: pcs Model designation: SK 3185.830 Product type: Wall-mounted cooling unit Blue e+ Version: wall-mounted material: Carbon steel Color: RAL 7035 Supply includes: Condenser with hydrophobic RiNano coating; Integral electric condensate evaporation; Assembly components; Wired ready for connection (plug-in terminal strip) Options: For remote monitoring and networking of cooling units and chillers, use the Blue e+ Generation IoT Interface, item number 3124.300.; Increase machine availability and process safety by remote monitoring of device data, condition, and system messages. Rated operating voltage: 110 V - 240 V, 1~, 50 Hz/60 Hz; 380 V - 480 V, 3~, 50 Hz/60 Hz Note on Model No.: Tolerance: 110 V -10% (99 V) and 240 V +10% (264 V) / 380 V -10% (342 V) and 480 V +6% (509 V) Rated output: 0.7 kW Air throughput (unimpeded air flow): External circuit: 895 m³/h; Internal circuit: 700 m³/h; External circuit: 526.8 cfm; Internal circuit: 412 cfm Energy efficiency ratio (EER) 50/60: Refrigeration factor L35 L35 (EER) 50 Hz: 2.96 Hz L35 L35: Refrigeration factor L35 L35 (EER) 60 Hz: 2.96 Seasonal energy efficiency ratio (SEER) 50/60 Hz: 5.5 Dimensions: Width: 400 mm; Height: 950 mm; Depth: 310 mm Required mounting cut-out: Width of opening: 383 mm; Cut-out height: 929 mm Protection category IP to EN 60 529: Internal circuit IP 55 Protection category NEMA: UL Type 12; UL Type 3R Refrigerant/cooling medium: Refrigerant: R-513A; Quantity: 0.76 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 0.48 t; Refrigerant: R-513A; Quantity: 1.7 lb. Temperature control: e+ controller (factory setting +35 °C) Operating temperature range: -20 °C...60 °C; -4 °F...140 °F Storage temperature range: -40 °C...70 °C; -40 °F...158 °F Operating temperature range of refrigerant circuit (active): 3 °C...60 °C Operating temperature range of heat pipe: -20 °C...45 °C Setting range: 20 °C...50 °C; 68 °F...122 °F Rated power Pel: Rated power L35 L35/50 Hz: 0.54 kW; Rated power L35 L35/60 Hz: 0.54 kW; Rated power L35 L50/50 Hz: 0.61 kW; Rated power L35 L50/60 Hz: 0.61 kW Permissible operating pressure (p. max.): 24 bar; 348.1 PSI Packaging unit: 1 pc(s). Net weight: 40.5 kg Gross weight: 46 kg PCF/VE (cradle-to-gate): 664.08 Customs tariff number: 84158200 ETIM 9: EC000855 ETIM 8: EC000855 ECLASS 8.0: 27180704 Approvals: UL + C-UL (listed); UL + C-UL - FTTA Width: 400 mm Height: 950 mm Depth: 310 mm Voltage type: AC With heating function: No With temperature control: Yes Function master/slave: Yes Total cooling capacity according to EN 14511 at 35/35 °C: 1600 W Speed-regulated: Yes Cooling air flow rate: 0–895 m³/h Country of origin: Italy

HS Code

8415.82

• EAN 4028177708082
• SAP 1200083854
• Code 81951530
