Rittal

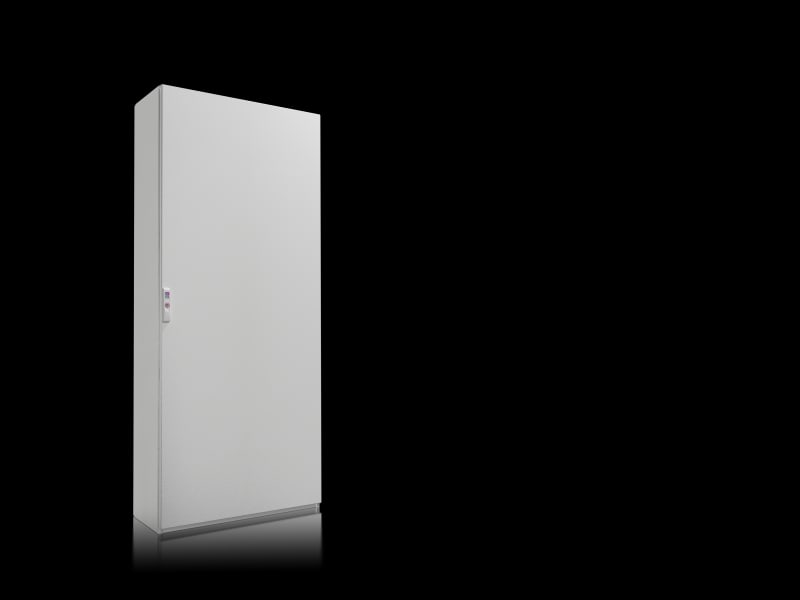

System Enclosure VX SE 800X1800X300
Part number5822600EAN / GTIN4028177959262HS code8301.60
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5822600 VX SE Free-standing enclosure system, BHD: 800x1800x300 mm, steel plate, with mounting plate, single door.
Technical Specifications
- Manufacturer part number (MPN)
- 5822600
- EAN / GTIN
- 4028177959262
- Sales unit
- pcs
- Model designation
- SE 5822.600
- Product type
- VX SE enclosure system
- Material
- Housing: Carbon steel
- 1.5 mm; Door
- Carbon steel
- 2.0 mm; Rear wall
- carbon steel
- 1.5 mm; Base plates
- Carbon steel
- 1.5 mm; Mounting panel
- Carbon steel, 3.0 mm
- Surface finish
- Housing, door and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint; Mounting plate and base plates: Zinc-plated
- Color
- RAL 7035
- Supply includes
- Housing, solid top and sides; Door(s); Right-hand door catch on single-door enclosures may be swapped to the left; Mounting panel; Base Plates; Rear panel, detachable; Lock: 3 mm double-bit; 2 punched rails, 18 x 39 mm; Rear wall, one-piece
- Dimensions
- Width: 800 mm; Height: 1,800 mm; Depth: 300 mm
- Dimensions of mounting plate (W x H)
- 699 mm x 1,696 mm
- Protection category IP to EN 60 529
- IP 55
- Protection category NEMA
- NEMA 3R; NEMA 12
- Type rating according to UL 50E
- Type 1; Type 2; Type 3; Type 3R; Type 12
- IK code
- IK10
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 108.53 kg
- Gross weight
- 117.6 kg
- PCF/VE (cradle-to-gate)
- 321.54 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Certificates
- Surface finish; Protection category
- Approvals
- UL + C-UL (listed)
- Colour
- Grey
- Width
- 800 mm
- Height
- 1800 mm
- Depth
- 300 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- Yes
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- No
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 15000 N
- Max. permitted load of the door(s) according to IEC 62208
- 900 N
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8301.60
Cross References
- EAN 4028177959262
- SAP 1200510975
- Code 82674388
Product Documentation
Document preview: Rittal 5822600 — Data Sheet (OEM)
