Rittal
VX IT empty 600X2000X800
Part number5330190EAN / GTIN4028177945586HS code9403.20
Office & Onboard Equipment
Server Racks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

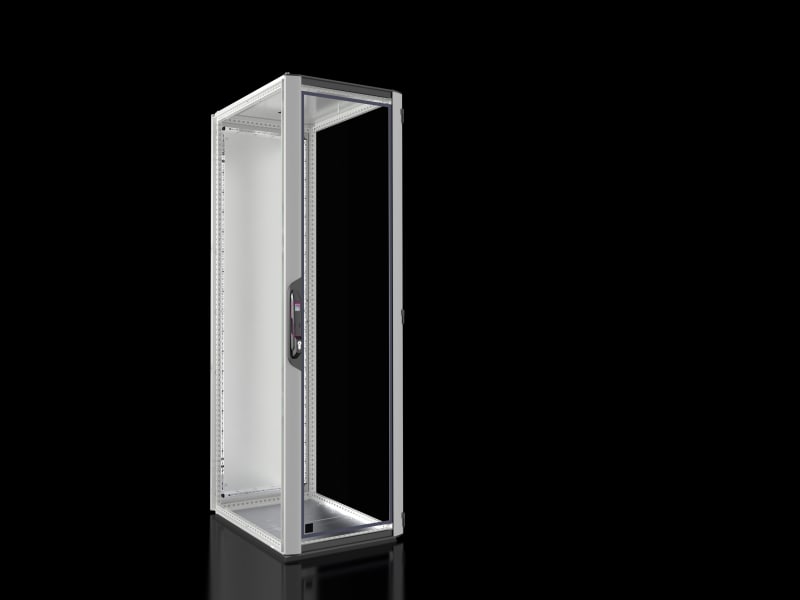

Rittal 5330190 Manufacturer description: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 2000 x 800 mm, 42 U, IP 55. VX IT, solid, IP55, empty housing, RAL7035, WHD 600x2000x800mm, 42U.
Technical Specifications
- Manufacturer part number (MPN)
- 5330190
- EAN / GTIN
- 4028177945586
- Sales unit
- pcs
- Model designation
- VX 5330.190
- Product type
- Network/server rack VX IT
- Material
- Sheet steel; Aluminium; Glazed door: Single-pane safety glass
- 3 mm; Front door
- Aluminium
- 1.25 mm; Rear door
- Sheet steel, 1.5 mm
- Surface finish
- Enclosure frame: Dipcoat-primed; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished
- General colour
- RAL 7035
- Colour
- Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections
- RAL 9005; Handle and hinges
- RAL 9005
- Supply includes
- VX enclosure frame with doors and roof plate; Glazed aluminium door at the front, 180° hinges; Sheet steel rear door, solid, one-piece
- 130° hinges; Lock front and rear
- Comfort handle for profile half-cylinders and security lock 3524 E; Roof plate, one-piece, solid; Base tray with gland plate, multi-piece, solid; Baying seal and sealing kit for gland plates (supplied loose); 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet
- Dimensions
- Width: 600 mm; Height: 2,000 mm; Depth: 800 mm
- Units
- 42 U
- Roof design
- one-piece, solid
- Rear door design
- Sheet steel door, solid, one-piece, 130° hinges
- Front door design
- Glazed aluminium door, solid, one-piece, 180° hinges
- Mounting angle design
- without
- Base design
- Base tray with gland plate, multi-piece, solid
- Mounting angles position
- without
- Protection category to IEC 60 529
- IP 55 only in conjunction with baying seal or screw-fastened side panels
- IK Code
- IK08
- Basic material
- Sheet steel
- Net weight
- 70.6 kg
- Gross weight
- 80.6 kg
- PCF per pack (cradle-to-gate)
- 198.6 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002499
- ECLASS 8.0
- 27180207
- Certificates
- Negative Certificate; Surface finish; Protection category
- Approvals
- UL + C-UL (listed)
- Mounting level
- None
- Type of profile rail
- None
- Number of doors
- 2
- Type of ventilation
- Passive
- Width
- 800 mm
- Height
- 2000 mm
- Depth
- 800 mm
- Number of height units
- 42
- Max. load capacity
- 1500 kg
- With roof plate
- Yes
- With earthing
- No
- With front door
- Yes
- With sidewall
- No
- Demountable
- No
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177945586
- SAP 1200493164
- Code 82691072
Product Documentation
